Data sheet


MRK 55.0 assembly crane with a capacity of 1.0 tonnes





Services included

  • Advice on rental, purchase and project planning
  • Handling service
  • Payment and financing options
  • Fast and customised delivery options
  • Long-term rental models
  • Equipment replacement & spare parts service/li>
  • Digital services
  • Tested quality/li>

Optional additional services

  • Express delivery
  • Maintenance Plus
  • Instruction/training
  • Planning and advice service
  • Device operator
  • Handling Service
Brief description

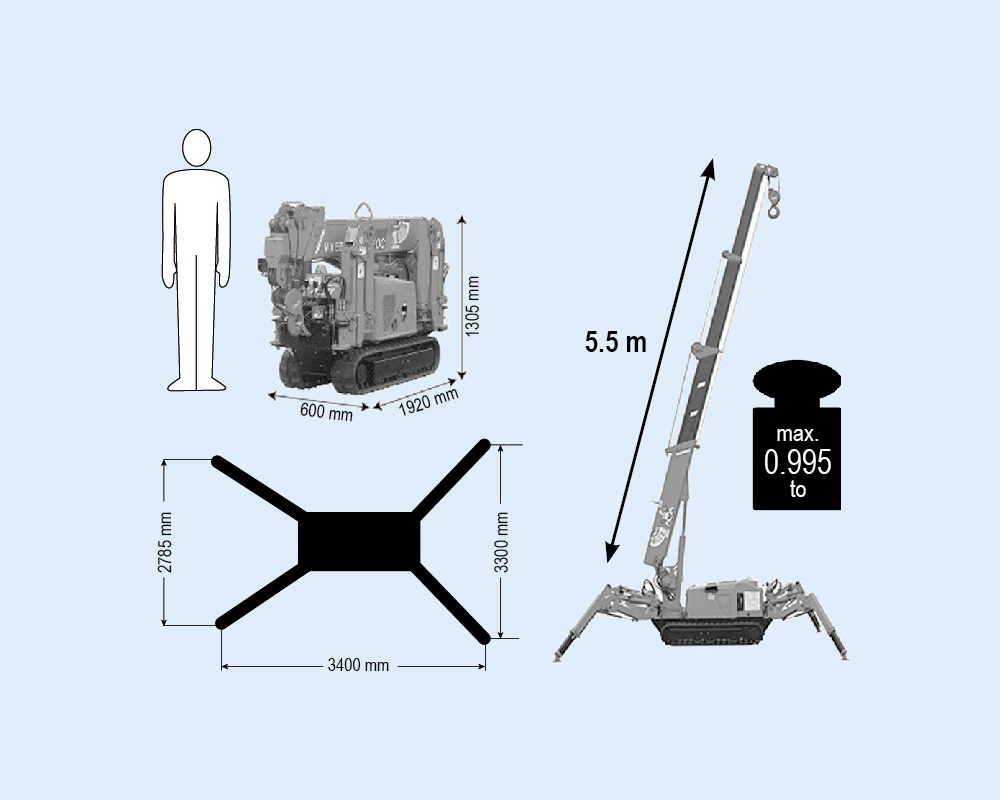

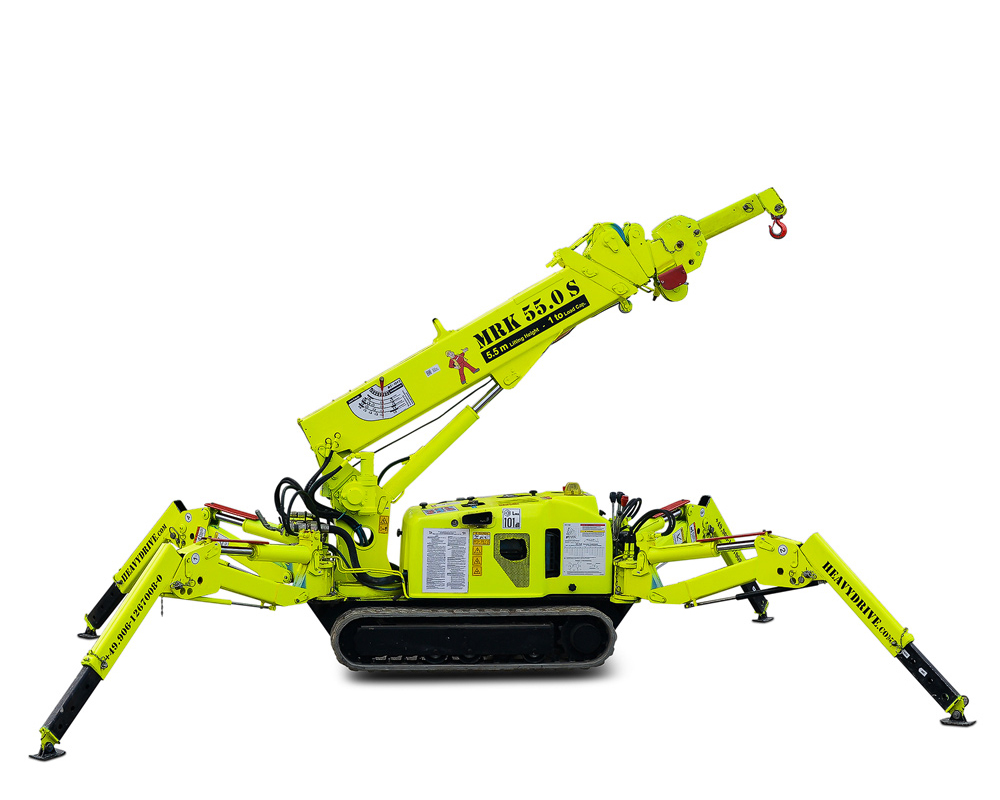

Very small mini caterpillar crane with a capacity of 0.995 tonnes and a hook height of 5.5 m. It can be powered electrically by high voltage or by petrol or gas. Especially suitable for assembly in narrow and crammed locations.


Long description

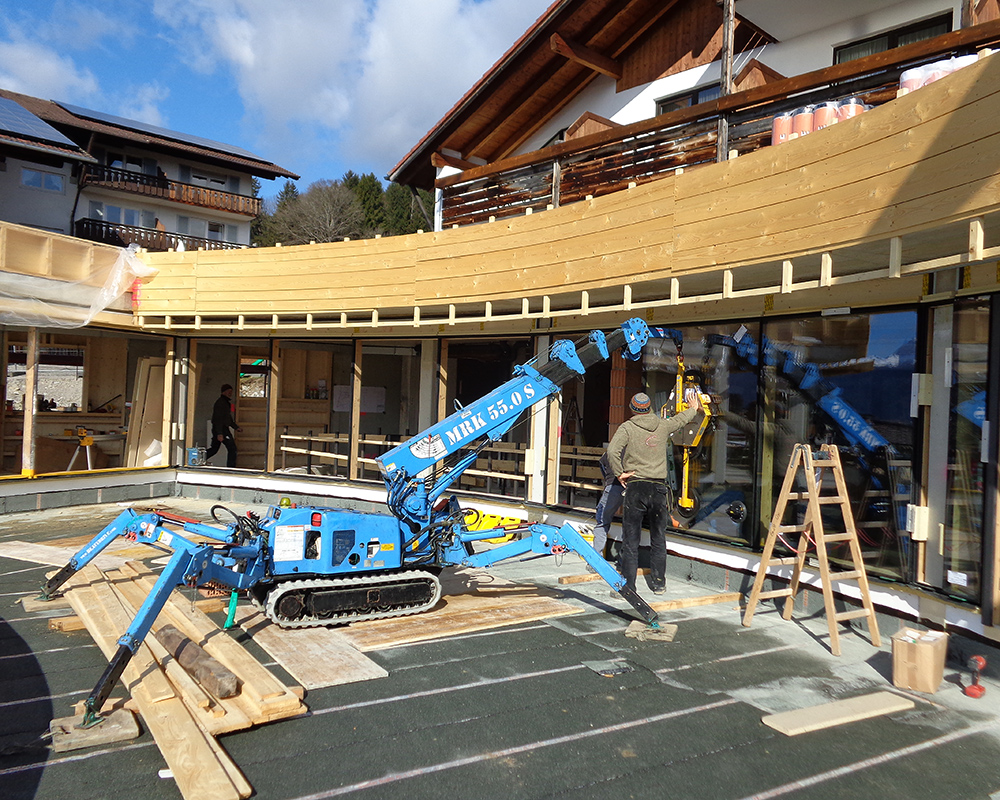

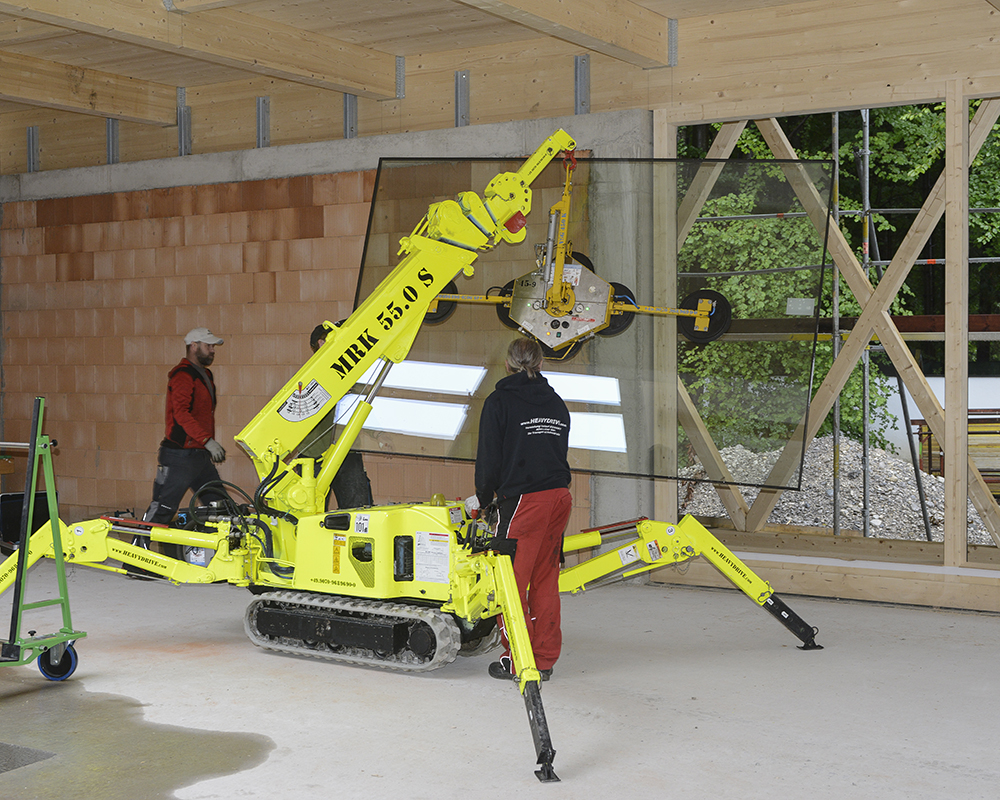

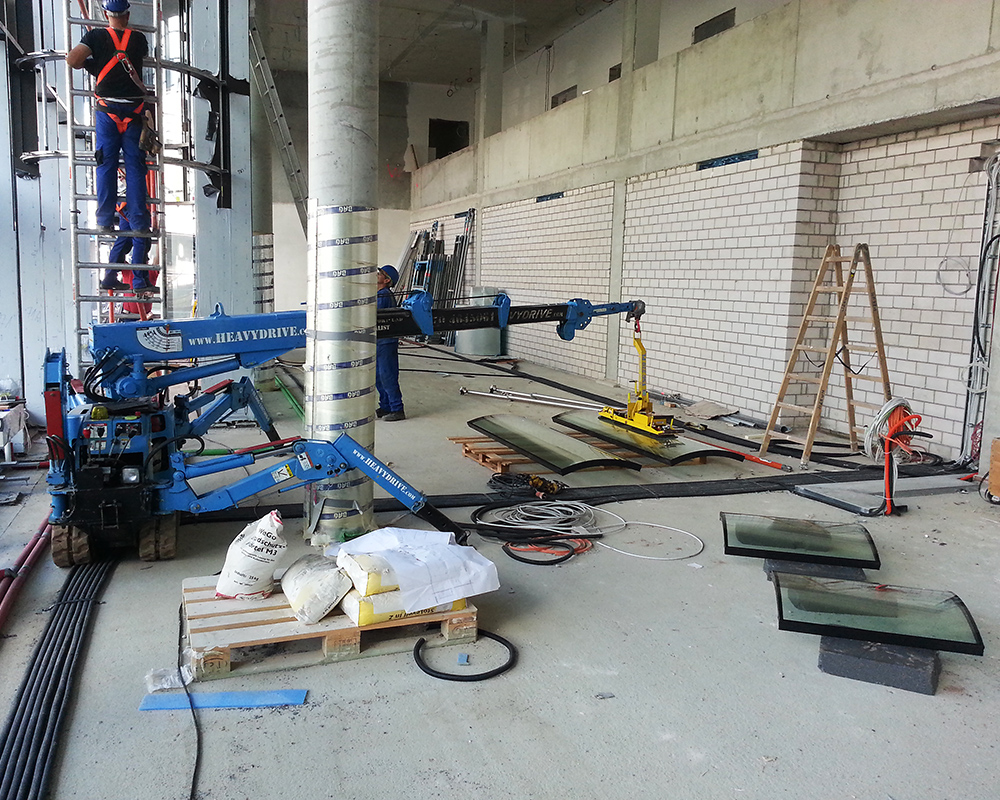

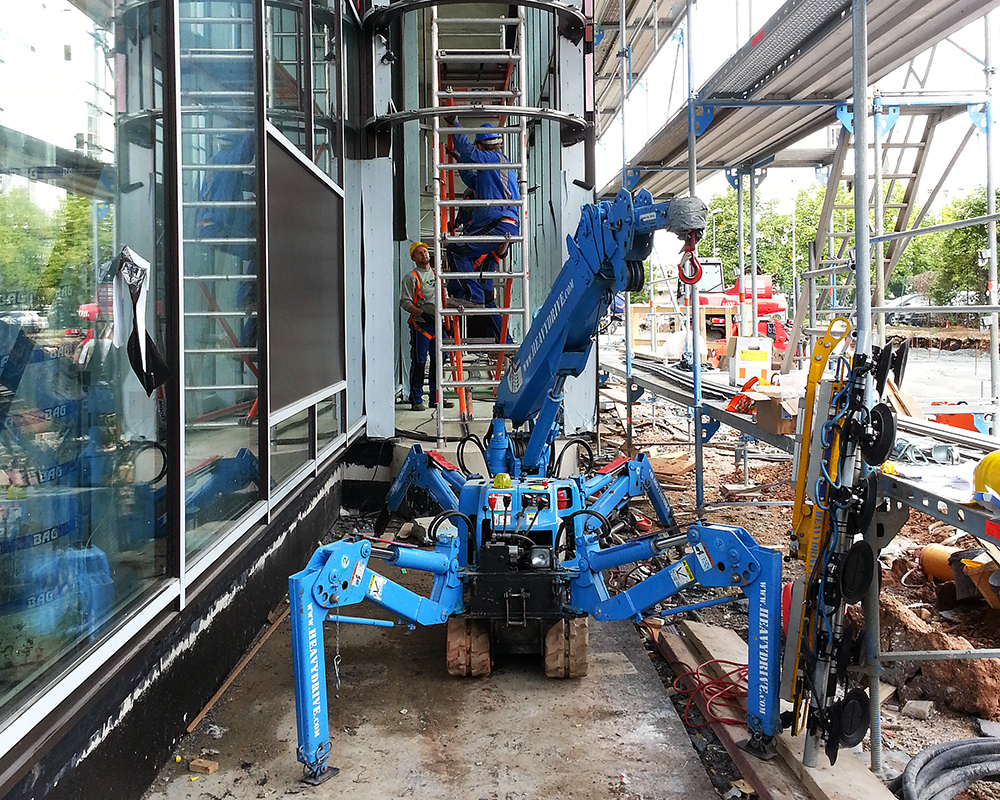

This very small mini caterpillar crane with a maximum capacity of 0.995 tonnes and a hook height of 5.5 m is suitable for indoor and outdoor use. With its caterpillar tracks, it can drive on any ground and thanks to its non-marking (non-colouring) tracks, steps in buildings are no problem either. Through various special HEAVYDRIVE assembly tips, you can even reach under eaves, behind scaffolding and many other places. In combination with our vacuum suction systems, you can bring almost every pane and panel to its destination.








Data sheet (MRK 55.0)


Features

Lift Height: 5.5 m

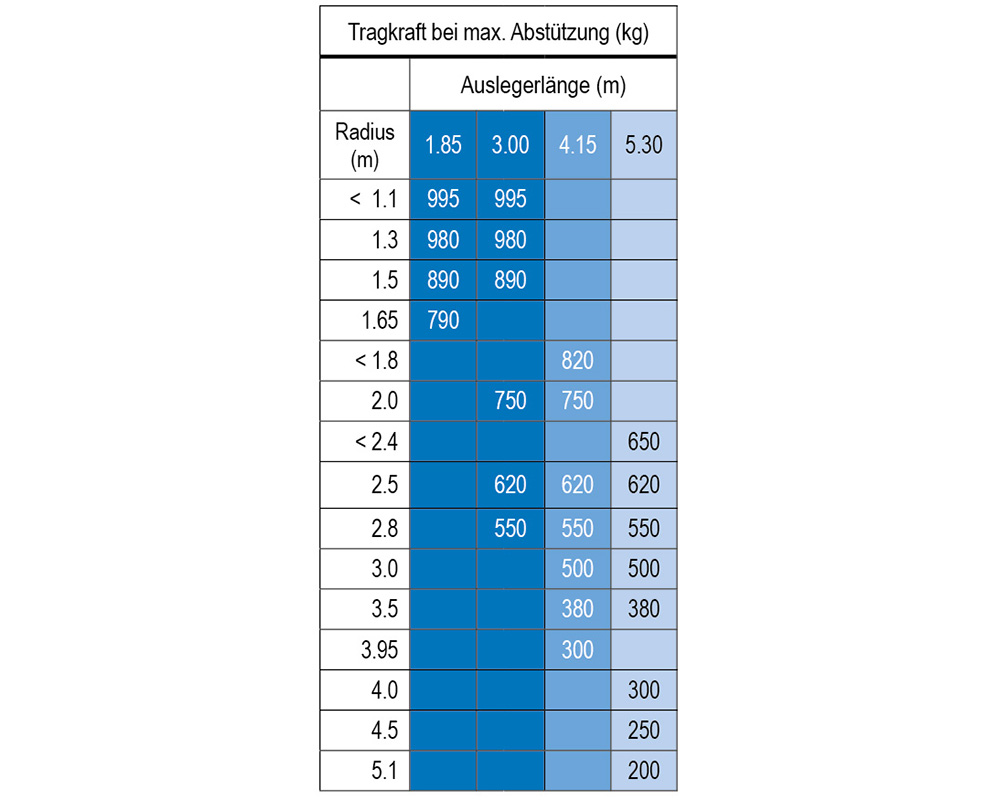

Load capacity (goods to be lifted): 1,995 t x 1,1 m
Net Weight: 1050 kg
Max. Hook Height Incl. tip S1 : 6,8 m with 0,8 m tip
Boom Angle : 1°-75°
Safety System : Load torque limiter Boom angle and load gauge Hydraulic pressure safety valve Hook securer Self-locking engine brake Winch cut

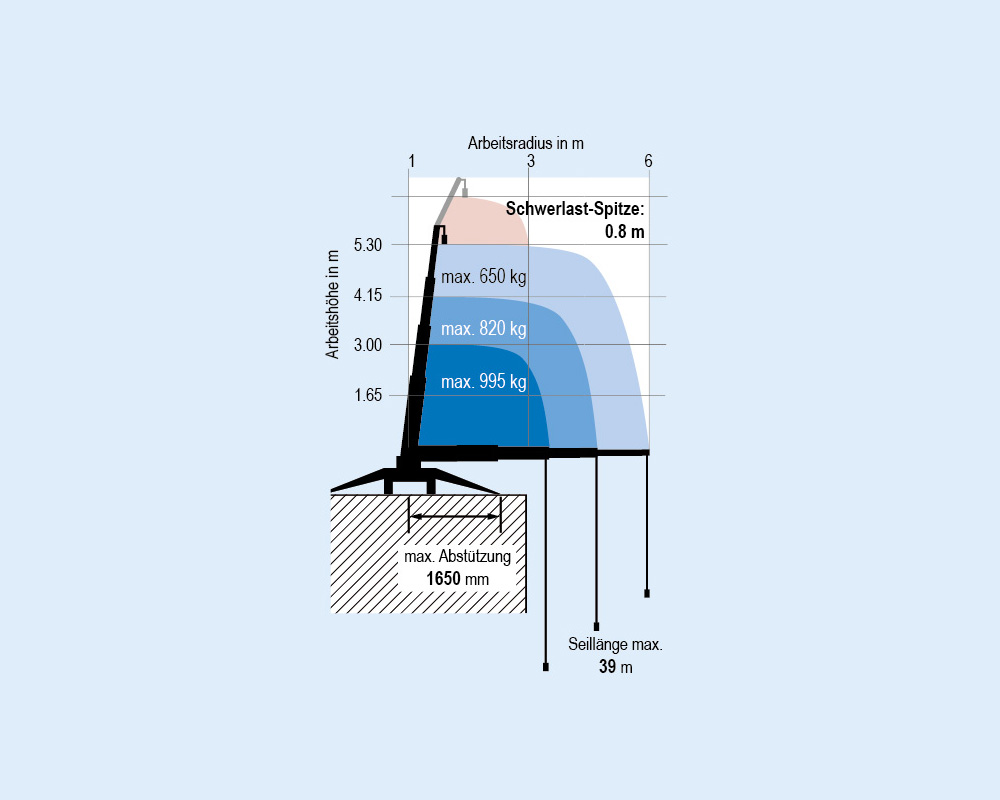

Max. Working Radius : 5,10 m
Cable : IWCR 6 mm x 39 m

Telescopic System
Projection length : 2.85 - 5.30 m
Telescoping Speed : 3.45 m / 14 s
Boom Angle : 1°-75°
Boom Type : Automatic, 1 cylinder + 2 ropes
Turning Angle : 360° continous
Turning Speed : 1,8 RPM
Cable Speed : 4,0 m/ min. (4- fall), 16,0 m/ min. (1- fall)
Supporting Feet : Hydraulic/manual

Carriage
Drive : Hydrostatic, continuously variable forward and reverse
Speed : 0- 2,3 km/ h
Gradability : 20°
Running Gear Length : 1044 mm
Ground Pressure : 0,20 kg/ cm²
Chain Width : 180 mm

Motor
Type : Yanmar, air-cooled
Performance : 5,7 KW / 1800 RPM
Fuel : Petrol and electric 380 V
Tank Capacity : 6 l

Further product images

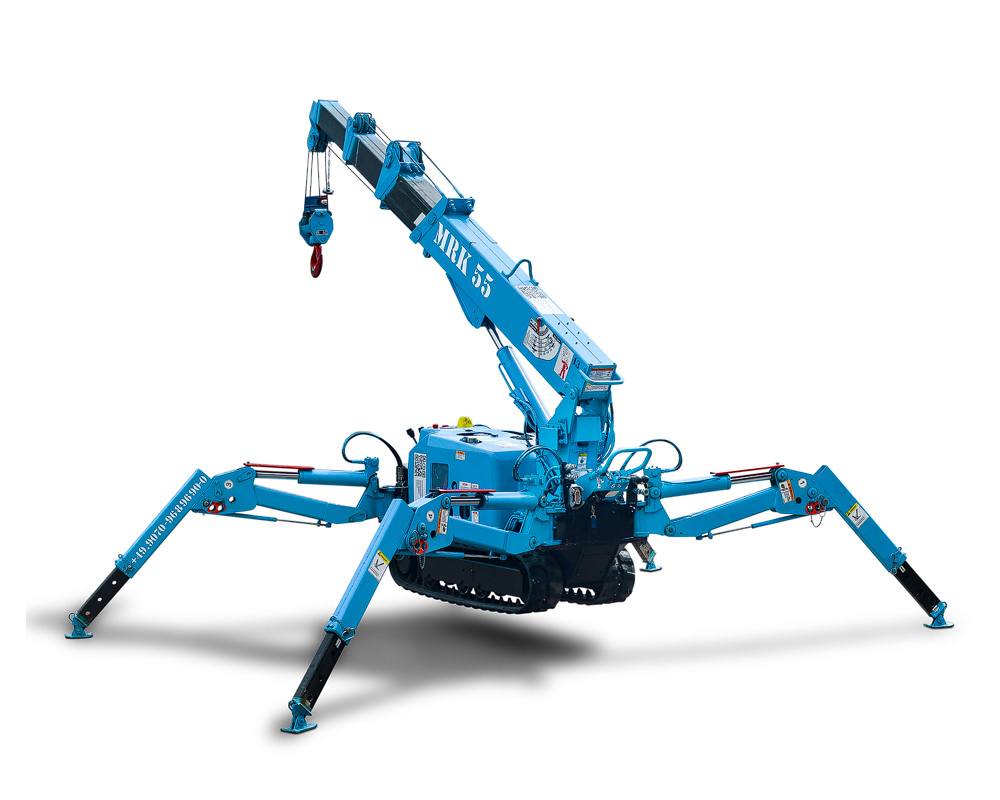

MRK 55.0 assembly crane with a capacity of 1.0 tonnes | MRK 55.0 assembly crane with a capacity of 1.0 tonnes

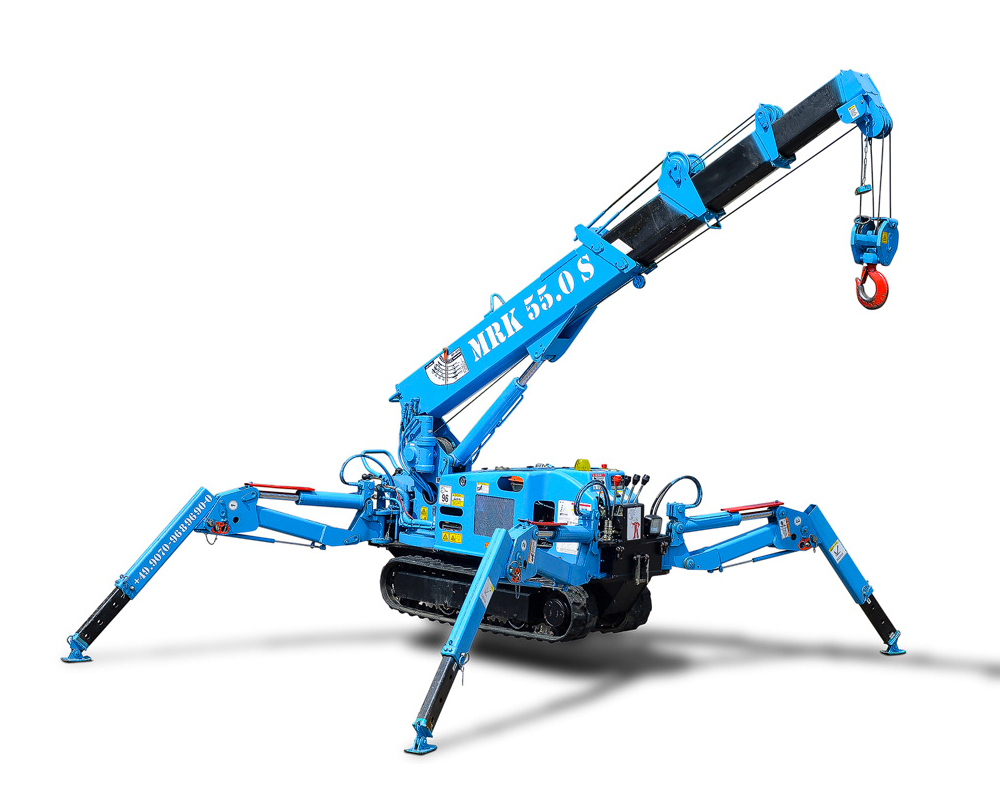

MRK 55.0 assembly crane with a capacity of 1.0 tonnes | MRK 55.0 assembly crane with a capacity of 1.0 tonnes

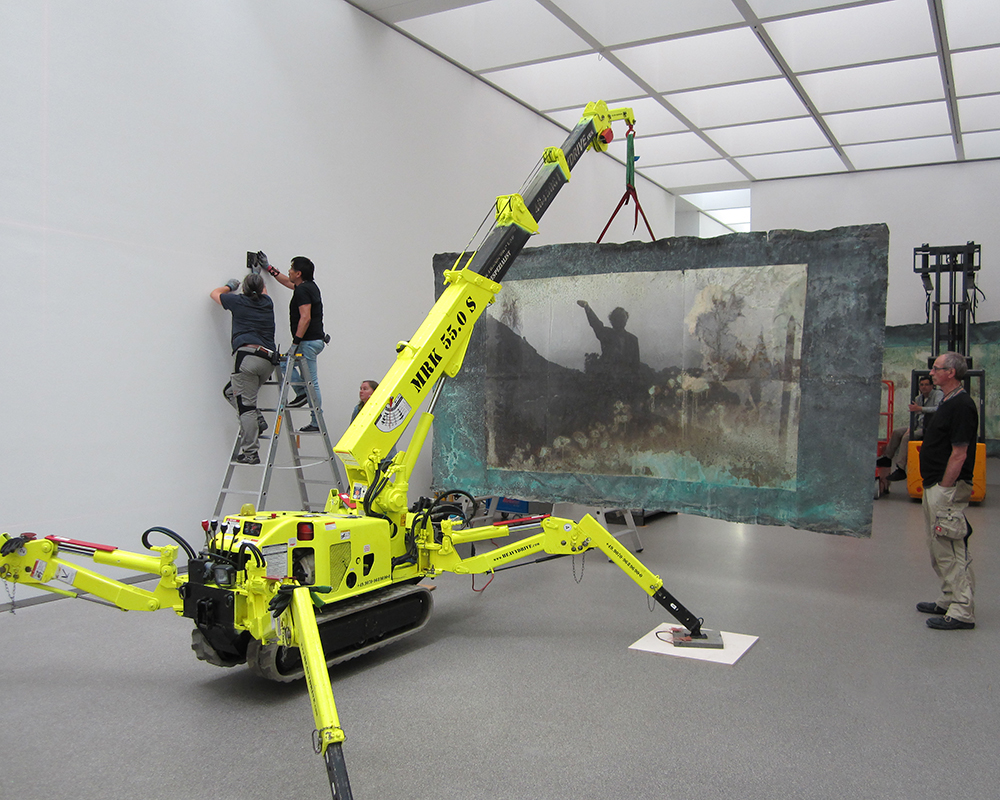

MRK 55.0 assembly crane with a capacity of 1.0 tonnes | MRK 55.0 assembly crane with a capacity of 1.0 tonnes
