Data sheet


HDL 3000 glass transport wagon with 3000 kg capacity -for heavy and wide elements





Services included

  • Payment and financing options
  • Fast and customised delivery options
  • Digital services
  • Tested quality

Optional additional services

  • Express delivery
  • Instruction/training
Brief description

  • for glass panes from 1.7 to 14 m in length
  • good manoeuvrability
  • can be transported in a space-saving way

Long description

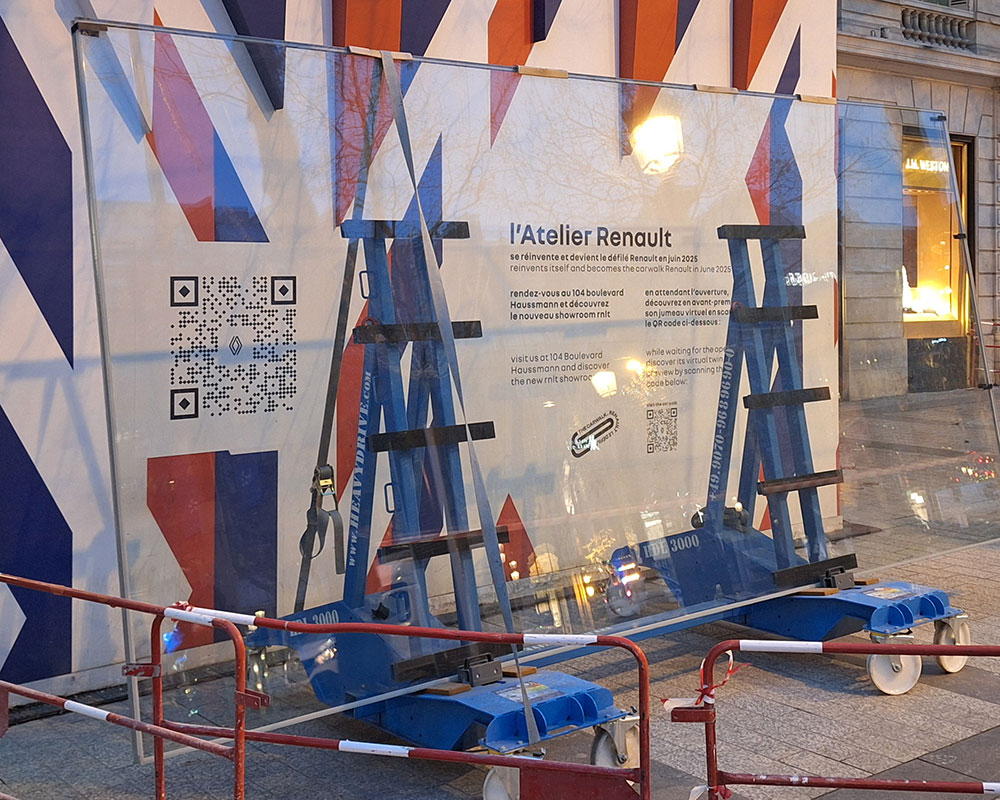

The HDL 3000 is optimally suited for transporting heavy and wide (deep) elements, but also large and small elements. With its very high load capacity of 3,000 kg, it is nevertheless very adaptable, offers easy running and good manoeuvrability. The HDL 3000 is designed for the almost vertical transport of panels. These include glass panels from 1.70 to 14 m, but also insulating glass or window elements, steel and plastic and stone panels. The distance between the two trolleys can be adjusted up to 10 m by the length of the connecting tube. This allows the unit to be transported in a space-saving manner. With a 10° inclination, the HDL 3000 offers secure standing of the transported goods. The plate can be secured with additional tension straps. The width-adjustable holder is a protection against slipping away. The depth of the holder can be adjusted in just a few steps.








Data sheet (HDL 3000)


Features

Capacity: 3000 kg
Net Weight: 220 kg
Flange distance (WxL) : 100 mm
Ground clearance of pane : 65 mm
Wheel Diameter : 200 mm

Further product images
