Data sheet

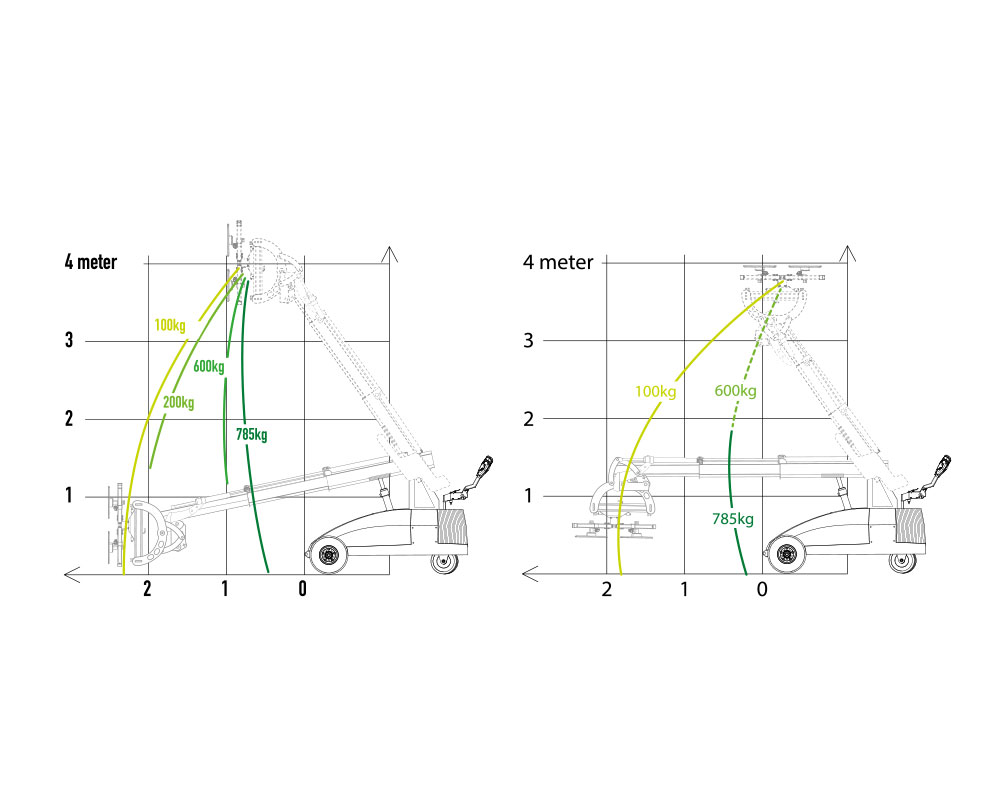

GMG 785 with a capacity of 785 kg
Services included
- Advice on rental, purchase and project planning
- Handling service
- Payment and financing options
- Fast and customised delivery options
- Long-term rental models
- Equipment replacement & spare parts service/li>
- Digital services
- Tested quality/li>
Optional additional services
- Express delivery
- Maintenance Plus
- Instruction/training
- Planning and advice service
- Device operator
- Handling Service
- compact mobile assembly aid transports and places
glass panes with mm-precision - Precise fitting with fine stroke
pane dimensions in square min.: 800 x 800 mm
pane dimension in line min.: 800 x 1.520 mm
pane vertikal dimensions max: 3.200 x 3.200 mm
pane horizontal dimensions max.: 1.700 x 1.700 mm
Long description
The GMG 785 is a battery-operated window robot with a lifting capacity of 785 kg. This machine was developed to facilitate the transport and assembly of window parts and similar airtight pieces. In addition, the GMG 785 can be supplied with other specially-manufactured lifting and aiding devices that enable the transport and handling of other types of heavy loads.
The GMG 785 has all-terrain front-wheel drive and a modern electrohydraulic system for handling lifted pieces.
Large window sections for your new building can now be easily placed with mm precision. The wide tyres make the machine suitable for all terrains. The lift can be conveniently moved using a transporter or trailer.
Data sheet (GMG 785)
Features
| Lift Height: | 3.9 m |
|---|---|
| Load capacity (goods to be lifted): | Movable with 785 kg load in the front.Movable with 300 kg load on the side |
| Net Weight: | 1200 kg |
| Net Weight incl. Counterweights : | 1473 |
|---|---|
| Boom Angle : | -91°/+45° |
| Drive : | Hydrostatic, infinitely variable, front wheel drive |
| Boom Type : | automatic |
| Wheels : | All-terrain, foamed |
| Suction Cups : | 4 x Ø 410 mm, 2 circle system |
| Safety System : | Load limiter |
| Telescopic System | |
|---|---|
| Boom Angle : | -91°/+45° |
| Extension : | 1830 mm 660 - 2420 mm vor Stoßstange in front of bumper |
| Boom Type : | automatic |
| Lifting height middle suction frame vertical/horizontal : | 4000 mm/4400 mm |
| Table Height : | 950 mm |
| Carriage | |
|---|---|
| Drive : | Hydrostatic, infinitely variable, front wheel drive |
| Wheels : | All-terrain, foamed |
| Motor | |
|---|---|
| Type : | Battery-powered 2 x 12 V 150 Ah |
| Performance : | Electric 48 V with 220 V charger operating life 3-4 working days without recharging |
