Data sheet


VSGU 1200 K Overhead Manipulator with 1200 kg capacity





Services included

  • Advice on rental, purchase and project planning
  • Handling service
  • Payment and financing options
  • Fast and customised delivery options
  • Long-term rental models
  • Equipment replacement & spare parts service/li>
  • Digital services
  • Tested quality/li>

Optional additional services

  • Express delivery
  • Maintenance Plus
  • Instruction/training
  • Planning and advice service
  • Device operator
  • Handling Service
Brief description

1200 kg capacity, 16 plates, 380 kg weight, 3 axis manipulator with cable remote control for MRK 126 - 158


Long description

HEAVYDRIVE is not only the hirer of standard equipment but also offers its own constructions for special manoeuvrability. As market leader HEAVYDRIVE has not onlly extension tips for all its mini cranes and other lifting devices but also overhead manipulators. Under remote control panes can be manoeuvred in up to 4 axes and set safely and easily in any height or position, even with a load of up to 1,200 kg. This overhead manipulator with cable remote control is compatible with all mini cranes 126-158.








Data sheet (VSGU 1200 K)


Features

Capacity: 1200 kg
Length: 1050 mm
Net Weight: 295 kg
Pane vertical dimensions max.: 6340 x 4560 mm
Pane horizontal dimensions max.: 4340 x 2560 mm
Suction (L x W) (base frame): 2040 x 1080 x 1560 mm
Suction Cups : 2 x 150 kg + 6 x 400 kg
Tilting : 110° hydraulic up / down
Rotation : 360°- motorised

Further product images

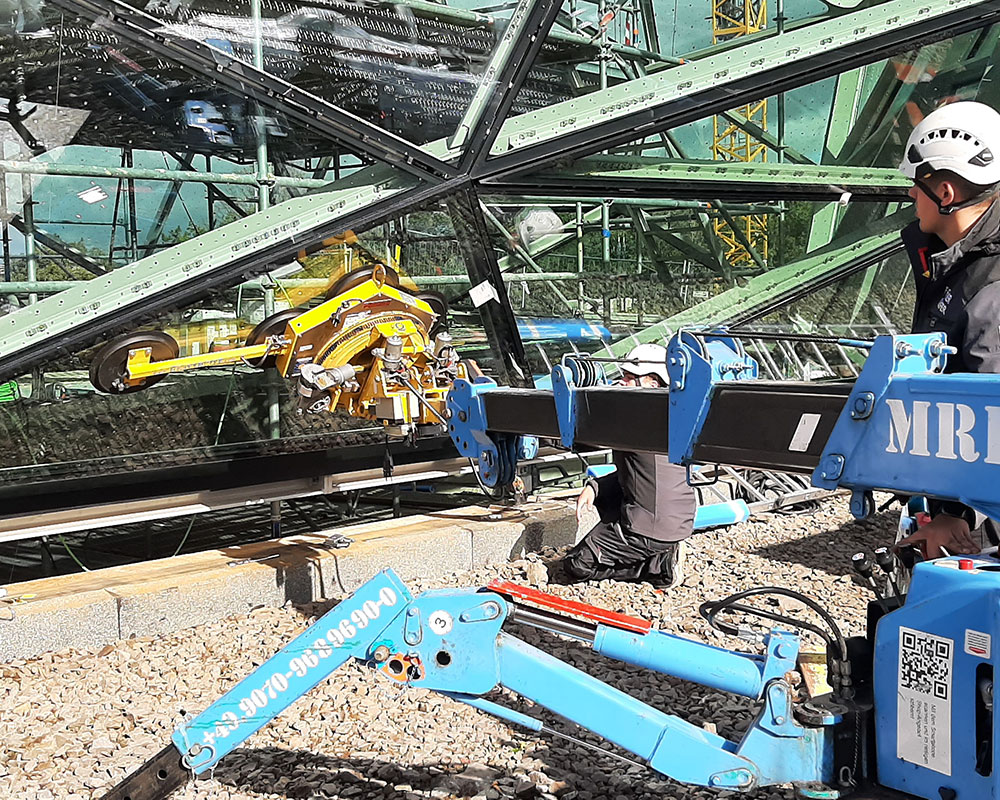

VSGU 1200 K Overhead Manipulator with 1200 kg capacity | VSGU 1200 K Overhead Manipulator with 1200 kg capacity
