Brief description
Long description
for curved panes, concave and convex, from 450 mm inner and outer radius,
Minimum pane size: 1500 x 800 mm
Long description

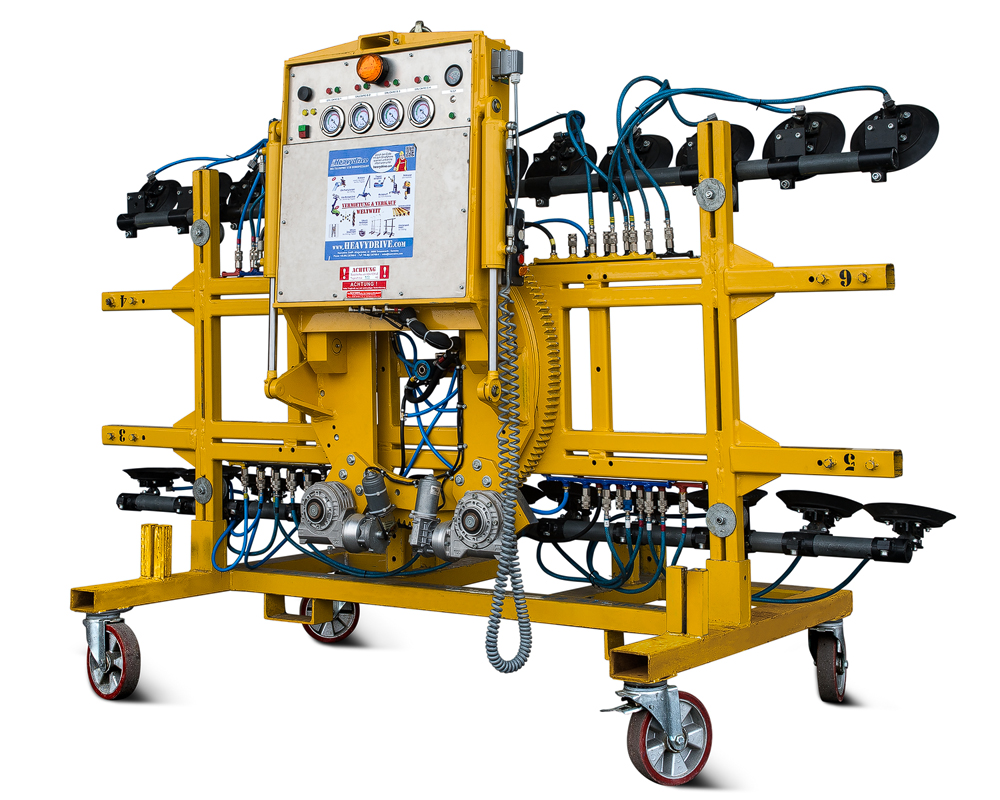

For curved panes, concave and convex, from 450 mm inside and outside radius, All suction plates can be locked individually and moved manually, all movement and suction functions are operated by remote control. Delivery includes trolley.
Data sheet (VSG 900 KR -20)
Features
| Capacity: | 900 kg |
|---|---|
| Net Weight: | 440 kg |
| Overall depth: | 380 mm |
| Pane vertical dimensions max.: | 4500 x 2300 mm |
| Pane horizontal dimensions max.: | 3500 x 1300 mm |
| Suction (L x W) (base frame): | 800 x 1500 mm |
| Suction Cups : | 36, einzeln absperrbar, manuell verschiebbar |
|---|---|
| Suction (LxW) with extension arms : | 800 x 3000 mm |
| Tilting : | 90° hydraulically |
| Rotation : | continuous |
| Lock : | 90° |
| Safety System : | 2 circuit vacuum system |
| Battery : | 12 V, 3-4 days continuous use, without recharging (recharging via 220 V plug) |

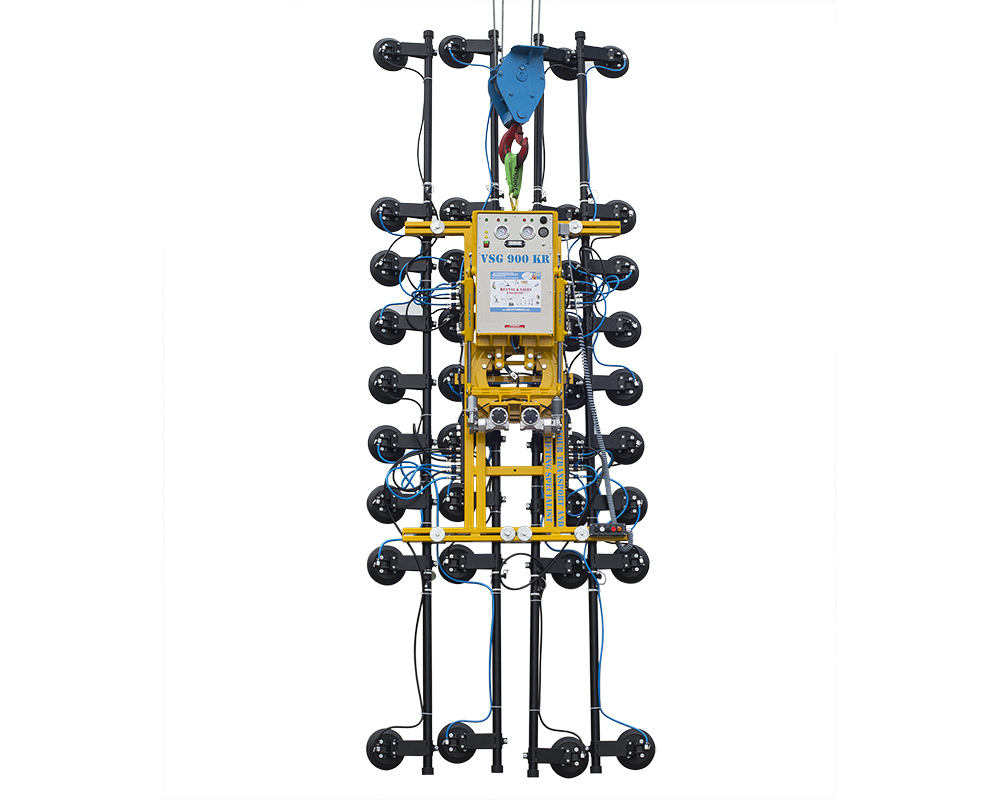

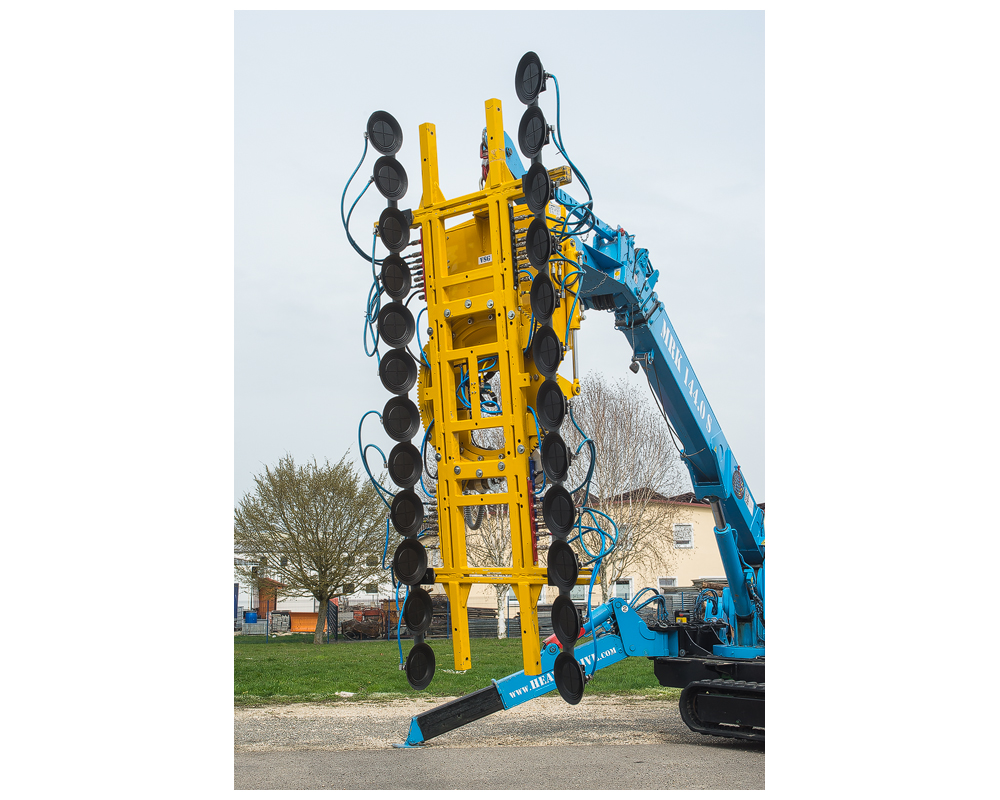

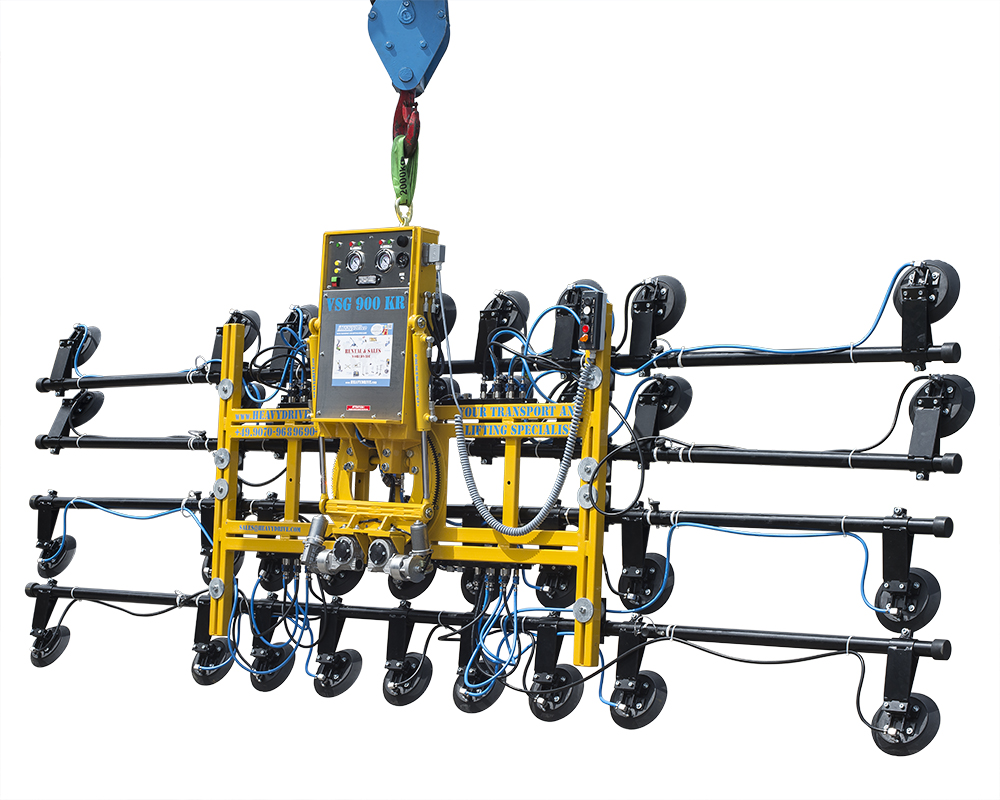

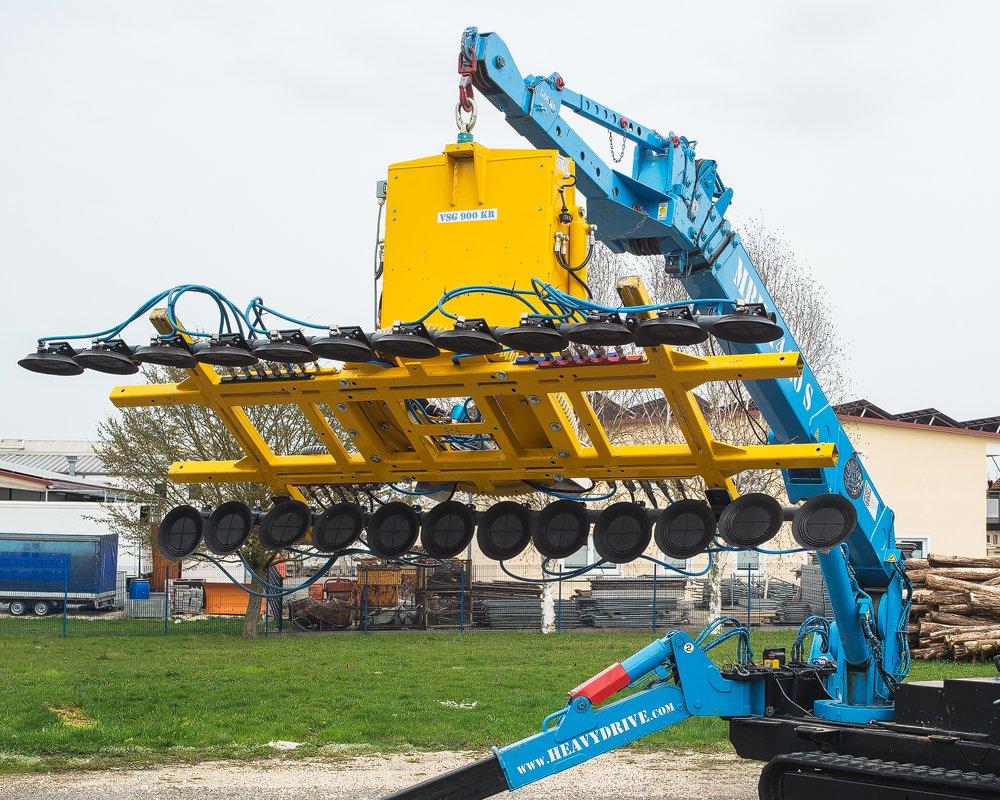

Further product images
