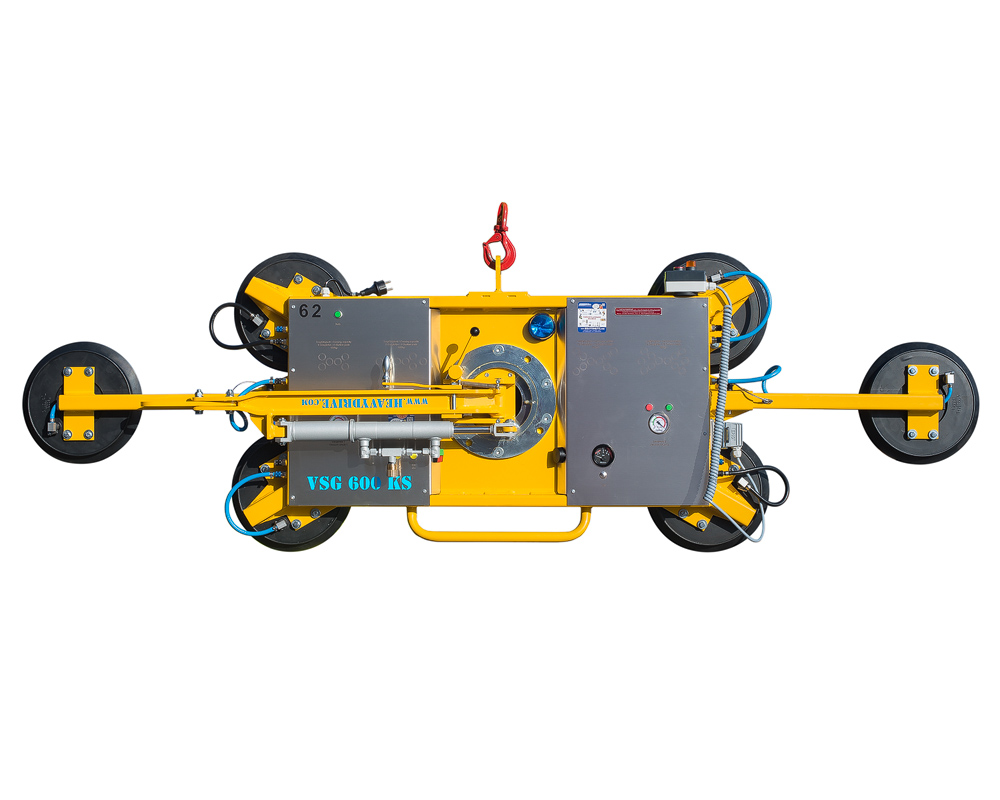

VSG 600 KS - Vacuum suction system with up to 600 kg capacity
Services included
- Advice on rental, purchase and project planning
- Handling service
- Payment and financing options
- Fast and customised delivery options
- Long-term rental models
- Equipment replacement & spare parts service/li>
- Digital services
- Tested quality/li>
Optional additional services
- Express delivery
- Maintenance Plus
- Instruction/training
- Planning and advice service
- Device operator
- Handling Service
Brief description
Long description
- Ultra-thin: Only 160 mm wide, this device will always fit between the frame and the façade!
- Suction (LxW) in mm (Base frame) 1,300 x 780
- Suction (LxW) in mm with extension arms 2,400 x 1,300
Long description
This model is essentially the same as the 600 K model. The only difference is its significantly slimmer design.
Extendable to 2,200mm through extension arms this vacuum suction apparatus is suitable for glass panes up to 600kg. 360° rotatable and every 90° automatically lockable, 90° retractable. Safety through 2 circuit vacuum system. Transport on practical roll truck. Also available with non marking plates for coated panes.
Data sheet (VSG 600 KS)
Features
| Capacity: | 600 kg |
|---|---|
| Net Weight: | 125 kg |
| Overall depth: | 160 mm |
| Pane vertical dimensions max.: | 4400 x 3300 mm |
| Pane horizontal dimensions max.: | 3400 x 2300 mm |
| Suction (L x W) (base frame): | 1300 x 780 mm |
| Suction Cups : | 4 |
|---|---|
| Suction (LxW) with extension arms : | 2400 x 1300 mm |
| Tilting : | 90° |
| Rotation : | 360° |
| Lock : | 90° manually |
| Safety System : | 2 circuit vacuum system |
| Battery : | 12 V, 3-4 days continuous use, without recharging (recharging via 220 V plug) |

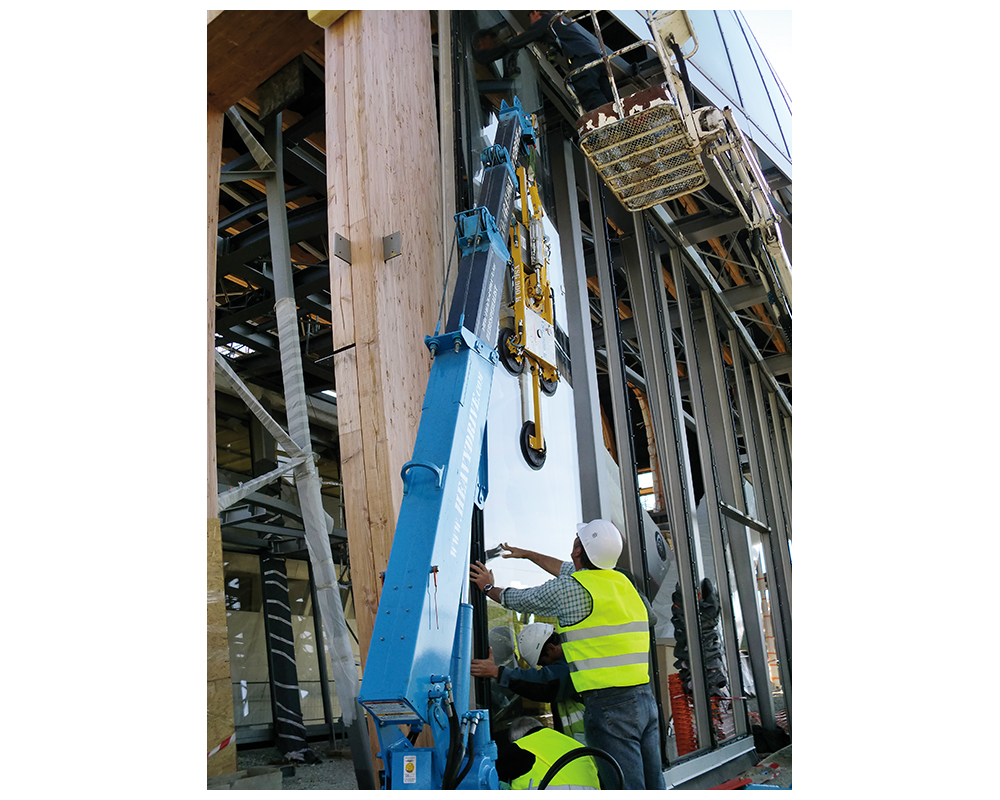

Further product images
