Data sheet

VSG 5000 K MH - Vacuum Suction system up to 5.000 kg capacity



Services included

  • Advice on rental, purchase and project planning
  • Handling service
  • Payment and financing options
  • Fast and customised delivery options
  • Long-term rental models
  • Equipment replacement & spare parts service/li>
  • Digital services
  • Tested quality/li>
Optional additional services

  • Express delivery
  • Maintenance Plus
  • Instruction/training
  • Planning and advice service
  • Device operator
  • Handling Service
Brief description

Currently the BIGGEST SYSTEM on the market! Lifts, rotates and pivots panes up to 24 metres in length, 3.2 m wide and weighing up to 5,000 kg with the highest level of safety and precision!

  • Overall depth in mm 550
  • Suction (LxW) in mm (Base frame) 6,123 x 1,900
  • Suction (L x W) in mm with extension arms 12,073 x 2,200 short arms / 18,073 x 2,200 long arms
Long description

The VSG 5000 K vacuum suction system is the perfect solution: The system can lift panes that are up to 24 m long and 3.2 m wide. Simply operated by remote control, glass panes or façade sections of up to 5 tonnes can be turned vertically and made to lay flat at a 90° angle.

Maximum safety: the system is battery-powered and has a 4-circuit system. This corresponds to the currently highest safety standards. Furthermore, in contrast to other manufacturers, the Heavydrive systems have been designed so that no further safety measures are necessary







Data sheet (VSG 5000 K MH)

Features

Capacity: 5000 kg
Net Weight: 2500 kg
Overall depth: 550 mm
Pane vertical dimensions max.: 20073 x 4200 mm
Pane horizontal dimensions max.: 19073 x 3200 mm
Suction (L x W) (base frame): 6600 x 2100 mm
Suction Cups : 20 x T40
Suction (LxW) with extension arms : 12073 x 2200 mm
Suction (LxW) with extension arms : 18073 x 2200 mm
Tilting : 90° - hydraulically by remote control
Rotation : 360°- motorised
Safety System : 4 circuit vacuum system
Battery : 24 V, 3-4 days continuous use, without recharging (recharging via 220 V plug)

Further product images

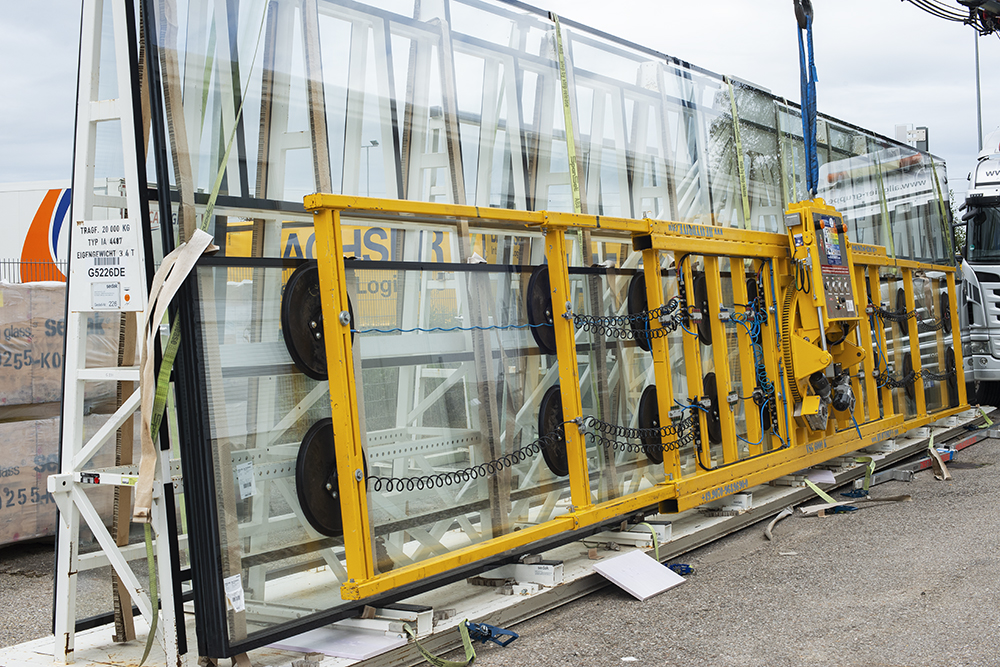

VSG 5000 K MH - Vacuum Suction system up to 5.000 kg capacity | VSG 5000 K MH - Vacuum Suction system up to 5.000 kg capacity
