Data sheet

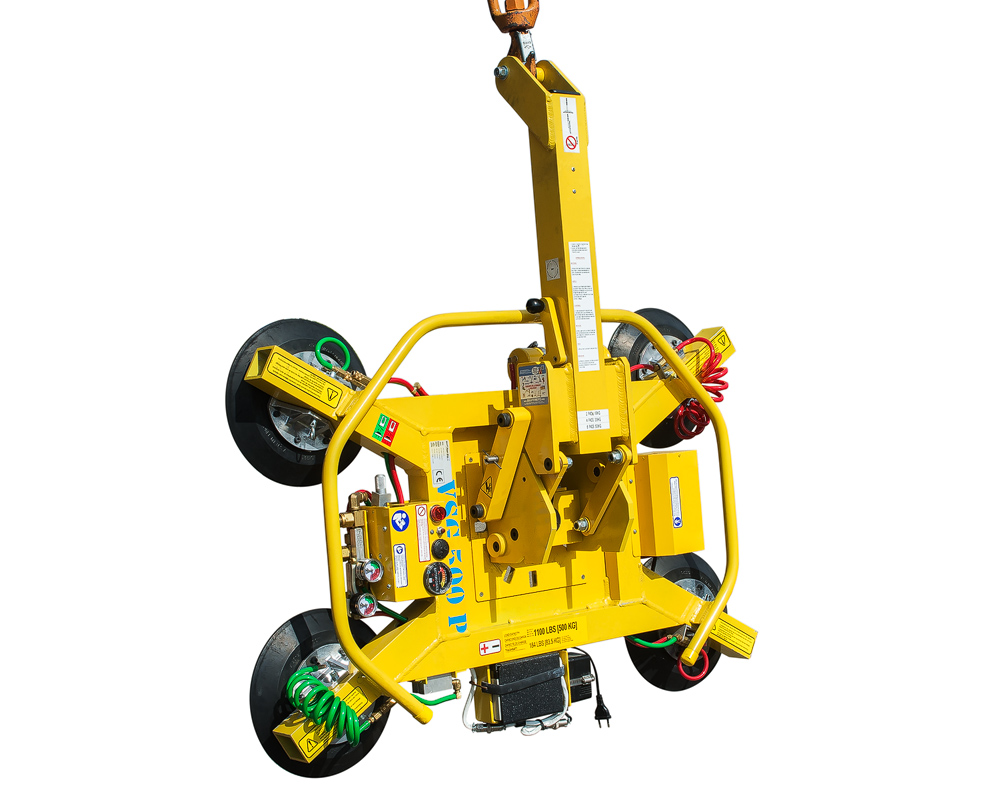

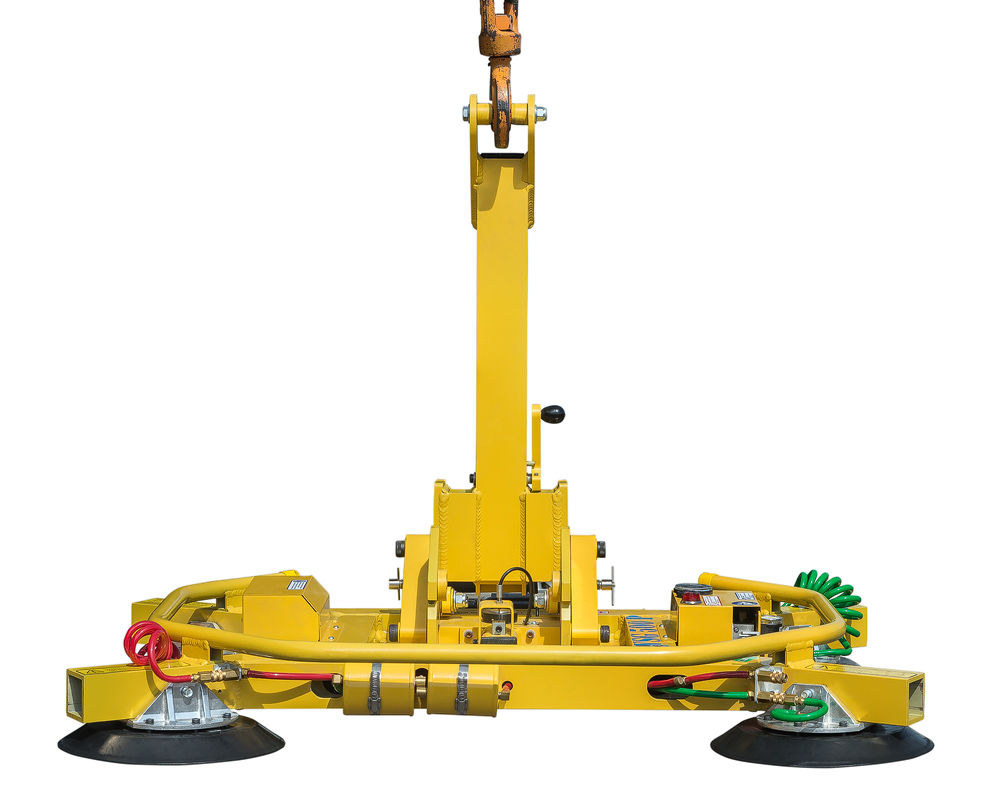

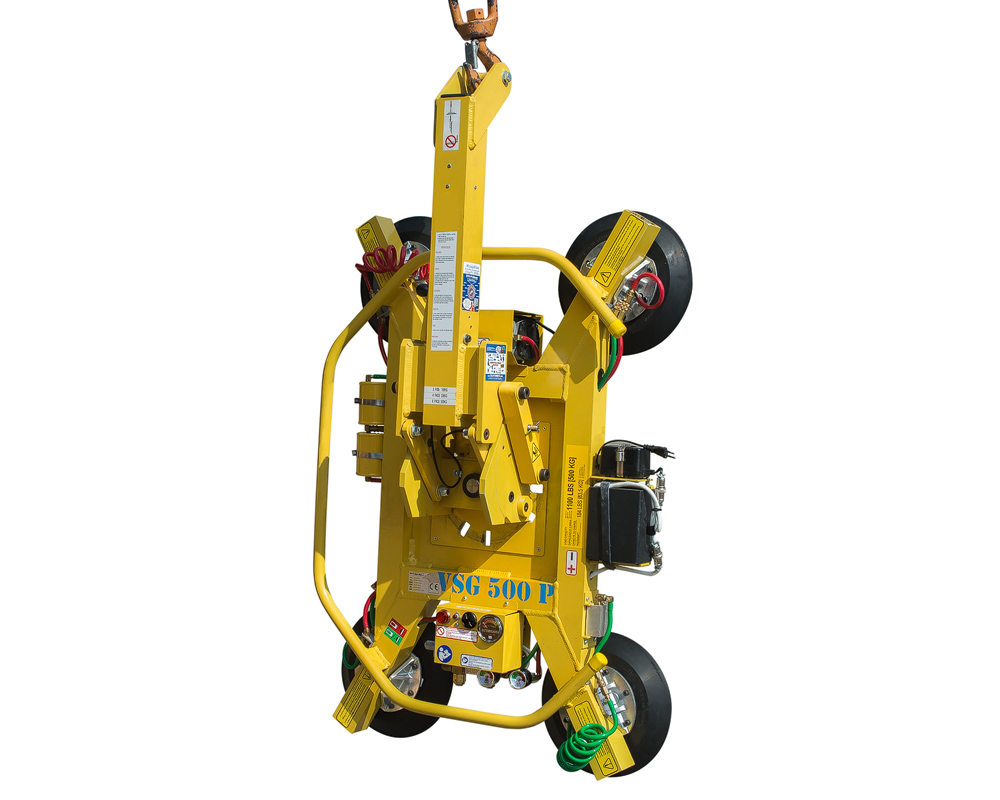

VSG 500 P - Vacuum Suction System with 500 kg capacity
Services included
- Advice on rental, purchase and project planning
- Handling service
- Payment and financing options
- Fast and customised delivery options
- Long-term rental models
- Equipment replacement & spare parts service/li>
- Digital services
- Tested quality/li>
Optional additional services
- Express delivery
- Maintenance Plus
- Instruction/training
- Planning and advice service
- Device operator
- Handling Service
Brief description
Long description

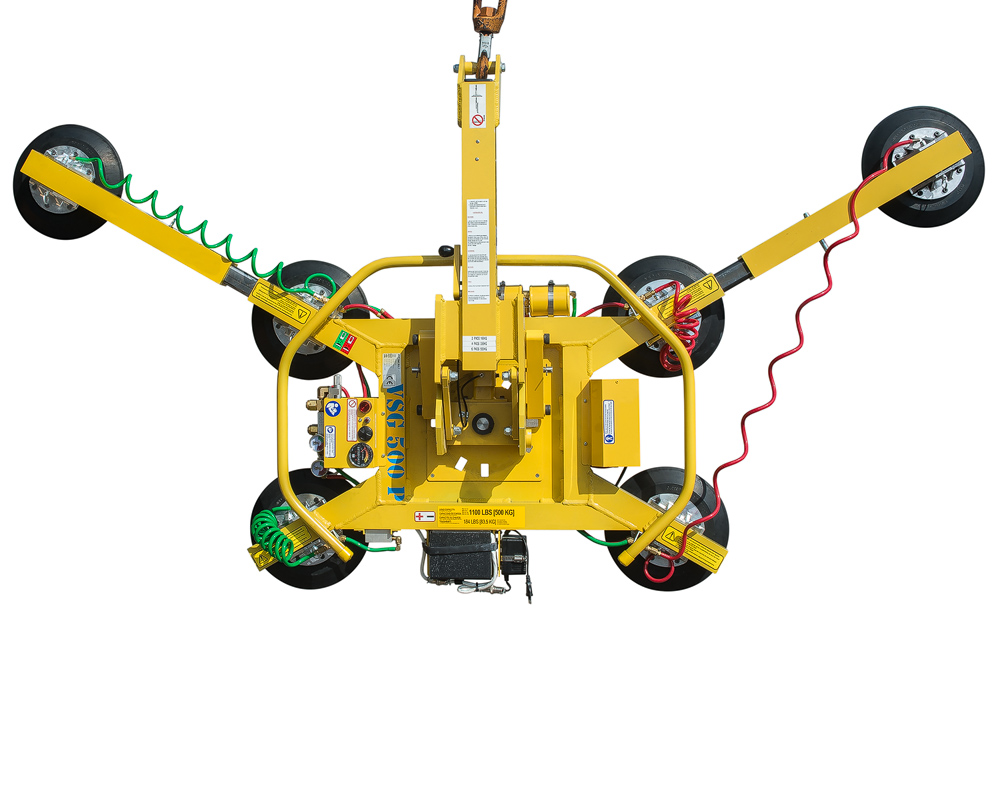

- very variable system with extension arms
- Suction (LxW) in mm 1,188 x 829
- Suction (LxW) in mm with extension arms 2,330 x 1,490 or (optional 4,050 x 700)
Long description

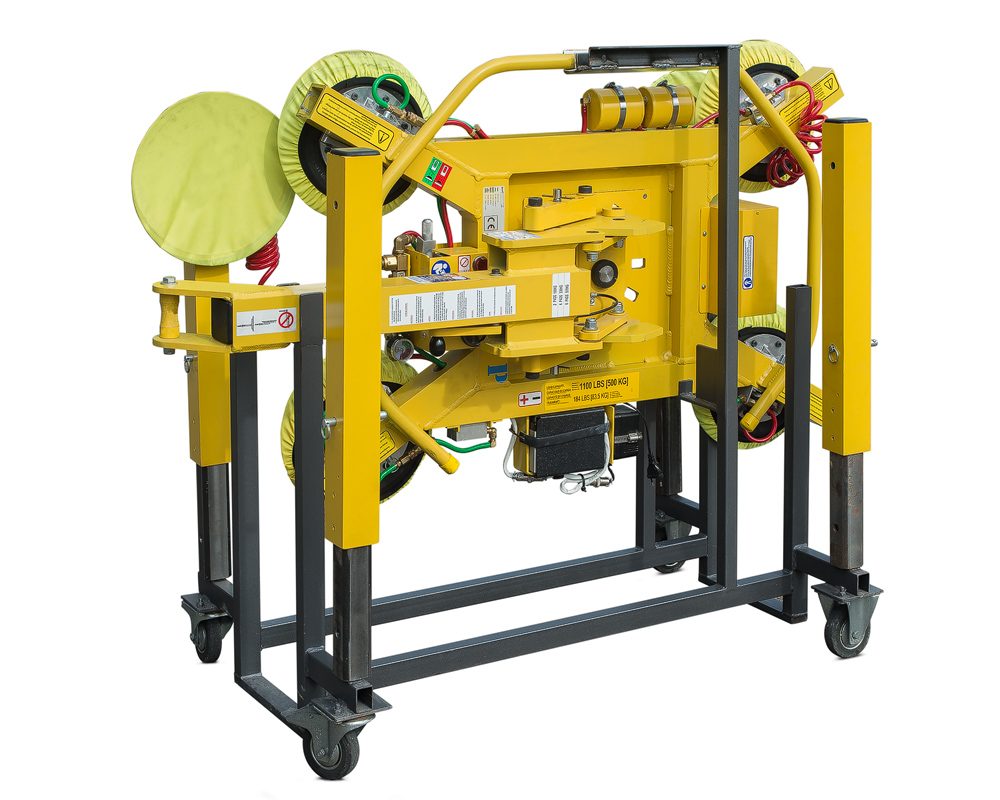

Adjustable thanks to its extension arms, this vacuum suction lifter is suitable for glass panes of up to 500 kg and 6000 mm in length. Rotates 360°, automatically locks every 45°, can rotate 90°. Secured by a dual-circuit vacuum system. Transported on a trolley. Also available with non-marking cups for coated panes
Data sheet (VSG 500 P)
Features
| Capacity: | 500 kg |
|---|---|
| Net Weight: | 91 kg |
| Overall depth: | 290 mm |
| Pane vertical dimensions max.: | 4118 x 3829 mm |
| Pane horizontal dimensions max.: | 3118 x 2829 mm |
| Suction (L x W) (base frame): | 1188 x 829 mm |
| Suction Cups : | 8 x T13 |
|---|---|
| Suction (LxW) with extension arms : | 4050 x 700 mm |
| Tilting : | 90° |
| Rotation : | 360° |
| Safety System : | 2 circuit vacuum system |
| Battery : | 12 V, 3-4 days continuous use, without recharging (recharging via 220 V plug) |
