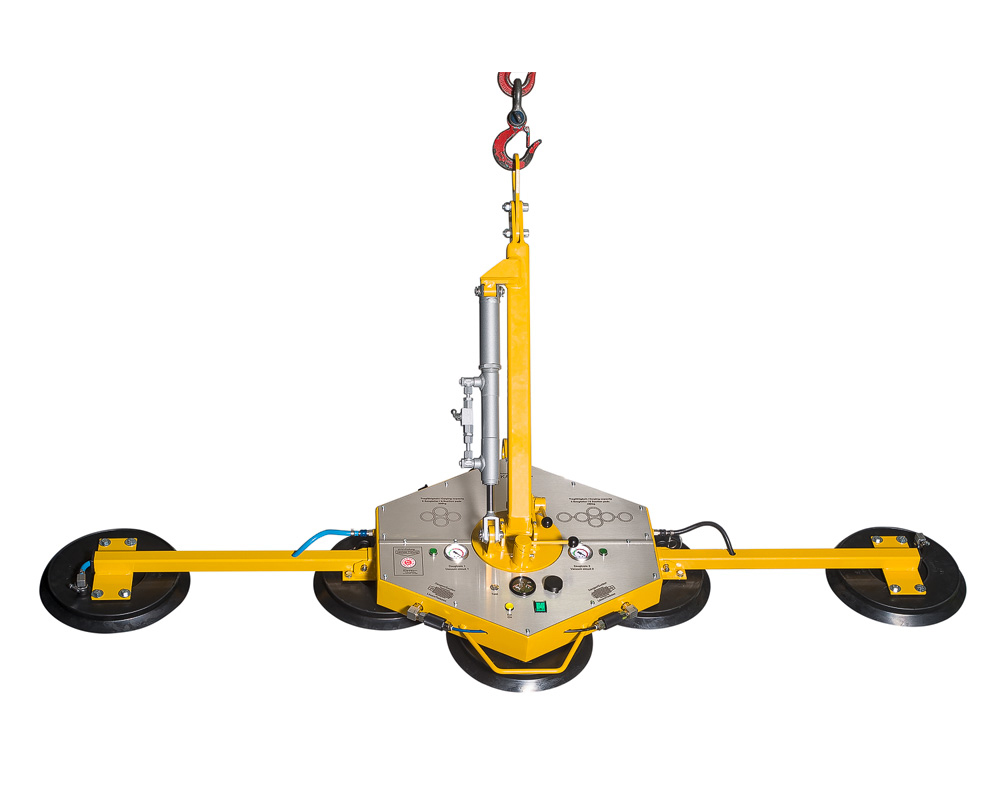

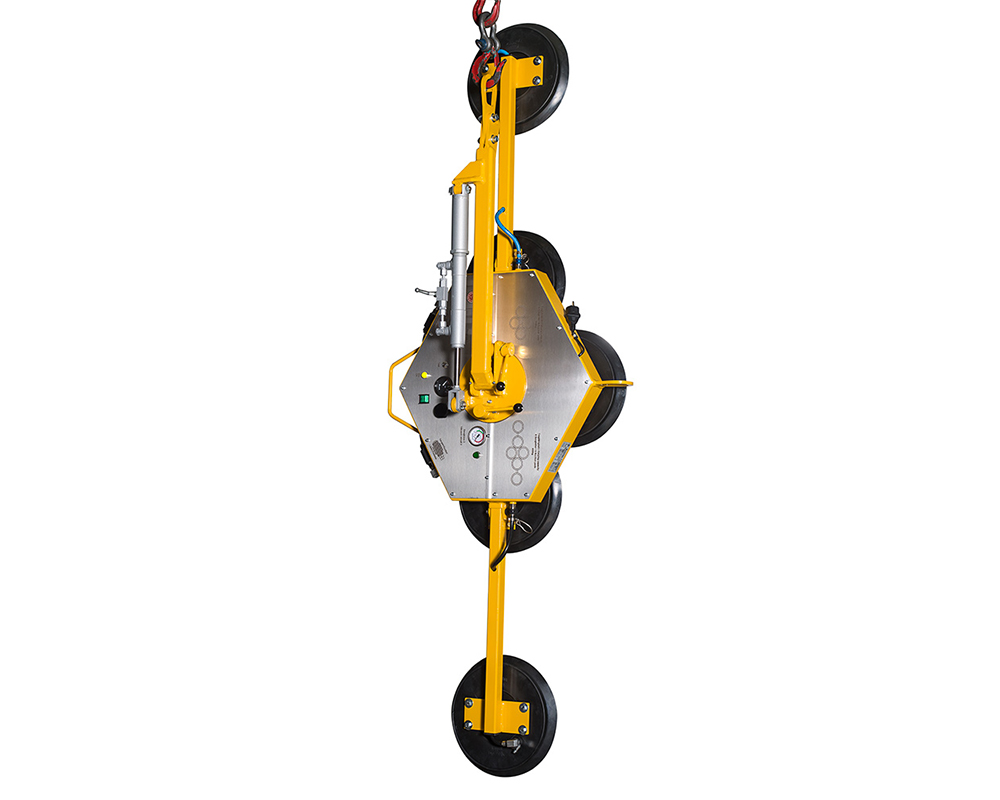

VSG 450 K - Vacuum Suction system with 450 kg capacity
Services included
- Advice on rental, purchase and project planning
- Handling service
- Payment and financing options
- Fast and customised delivery options
- Long-term rental models
- Equipment replacement & spare parts service/li>
- Digital services
- Tested quality/li>
Optional additional services
- Express delivery
- Maintenance Plus
- Instruction/training
- Planning and advice service
- Device operator
- Handling Service
Brief description
Long description
- Light system for window assembly up to 450 kg. Best suited to small sizes up to 1m wide and 1,20m high. The short hanger assists assembly in window openings.
- Suction (L x W) in mm (base frame) 900 x 680
- Suction (L x B) in mm with extension arms 2,100 x 680
Long description
Vacuum suction unit for glass panes weighing up to 450 kg, rotates 360°, automatically lockable every 45°, swings out 90°. Secured by a dual-circuit vacuum system.
Data sheet (VSG 450 K)
Features
| Capacity: | 450 kg |
|---|---|
| Net Weight: | 45 kg |
| Overall depth: | 200 mm |
| Pane vertical dimensions max.: | 3900 x 2500 mm |
| Pane horizontal dimensions max.: | 1900 x 1680 mm |
| Suction (L x W) (base frame): | 900 x 680 mm |
| Suction Cups : | 6 x T15 |
|---|---|
| Suction (LxW) with extension arms : | 2100 x 680 mm |
| Tilting : | 90° infinitely variable lockable |
| Rotation : | 360° |
| Safety System : | 2 circuit vacuum system |
| Battery : | 12 V, 3-4 days of continuous use without charging; recharging via 110/220 V plug |

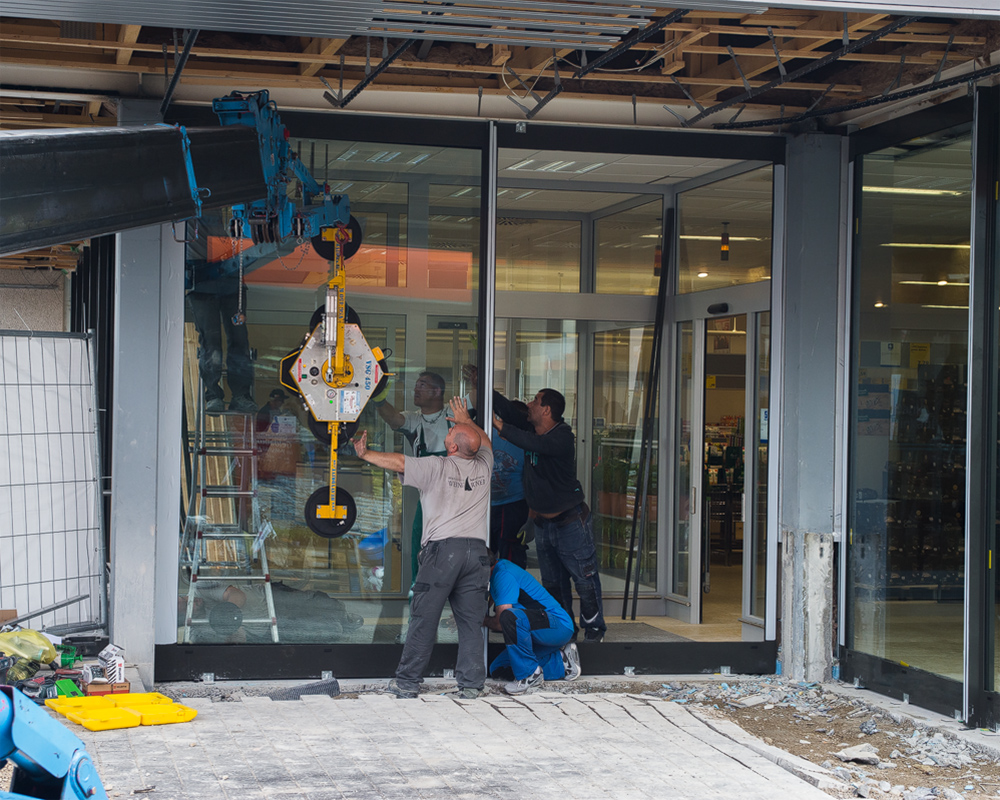

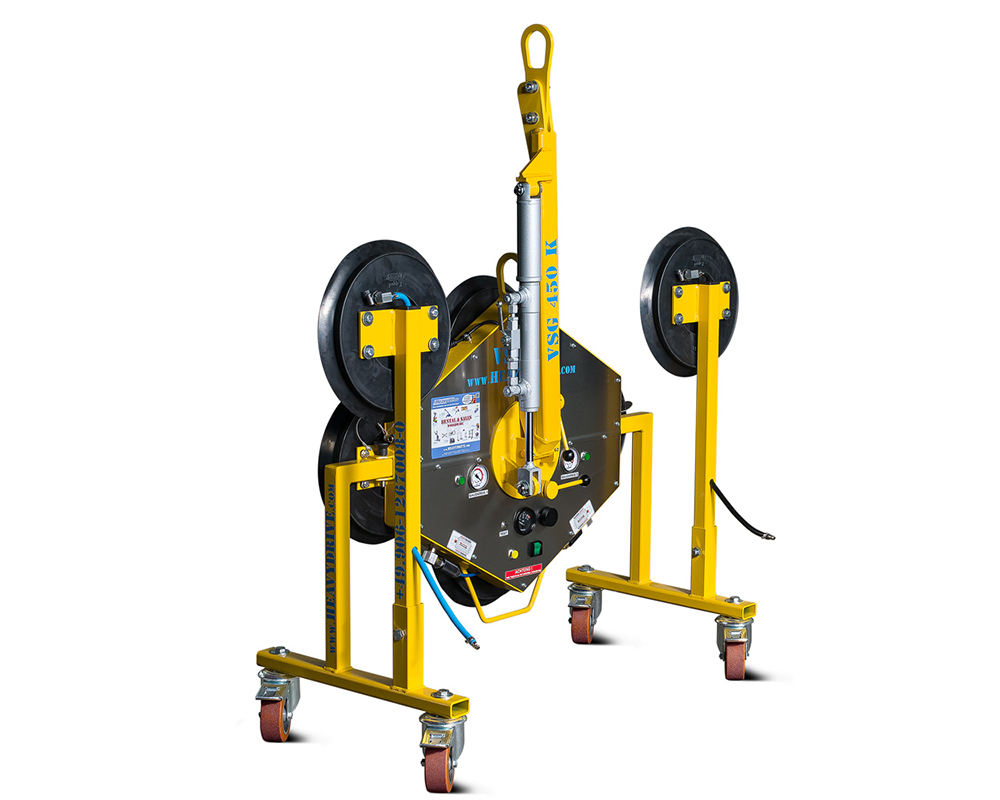

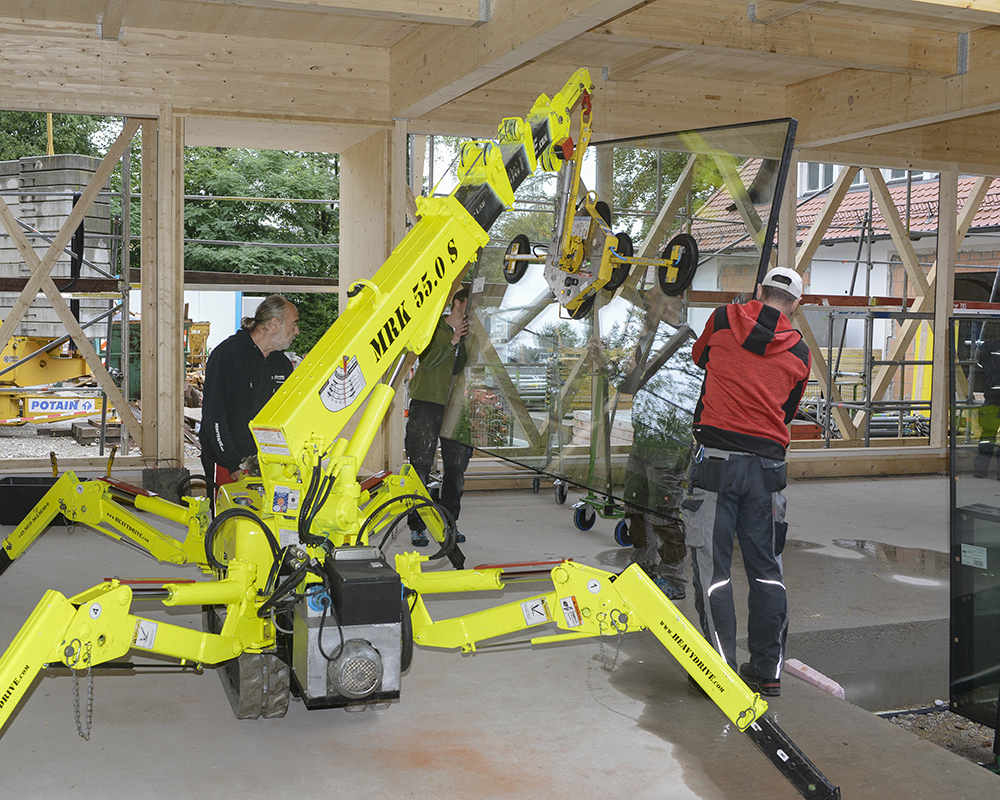

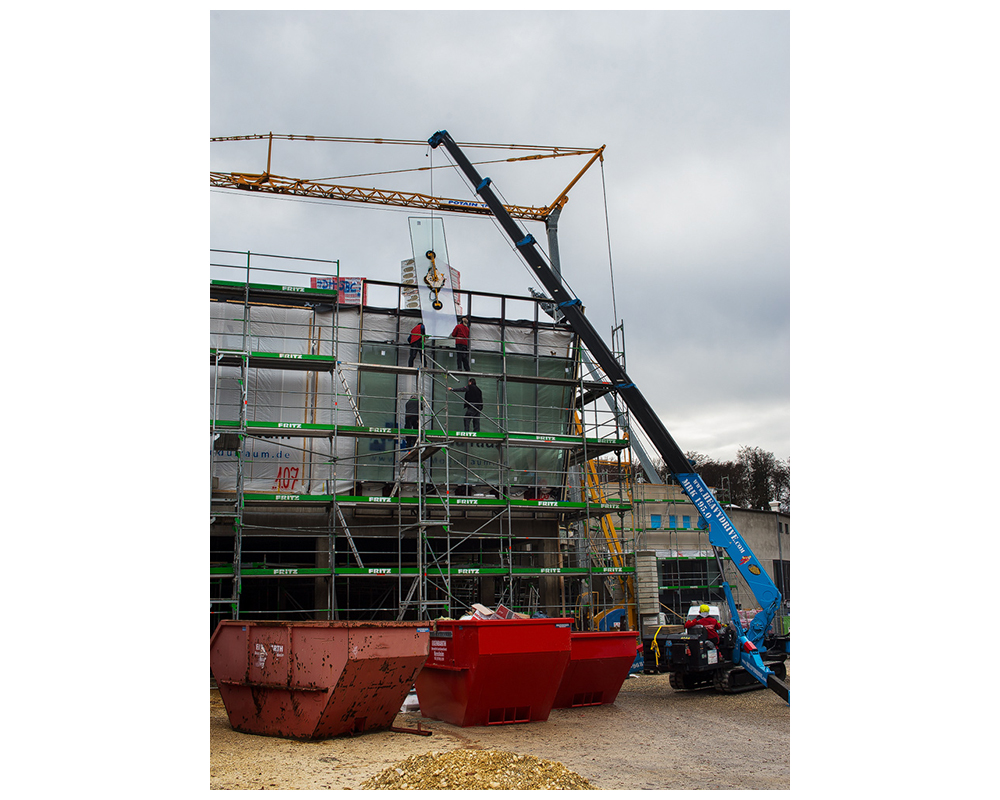

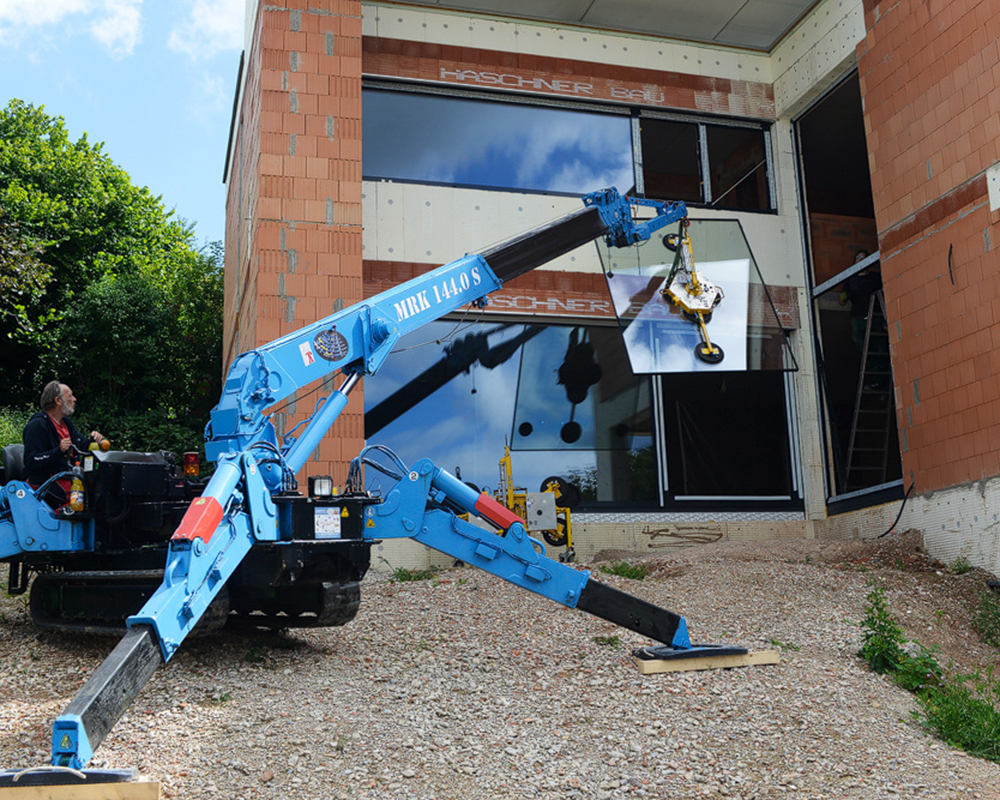

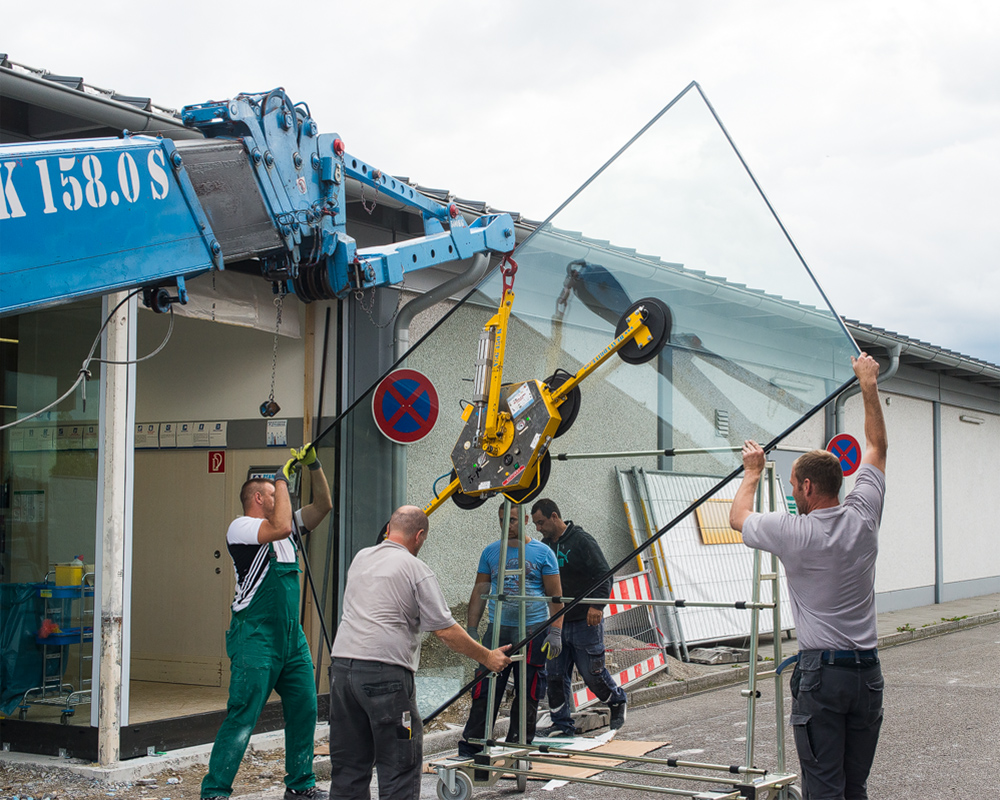

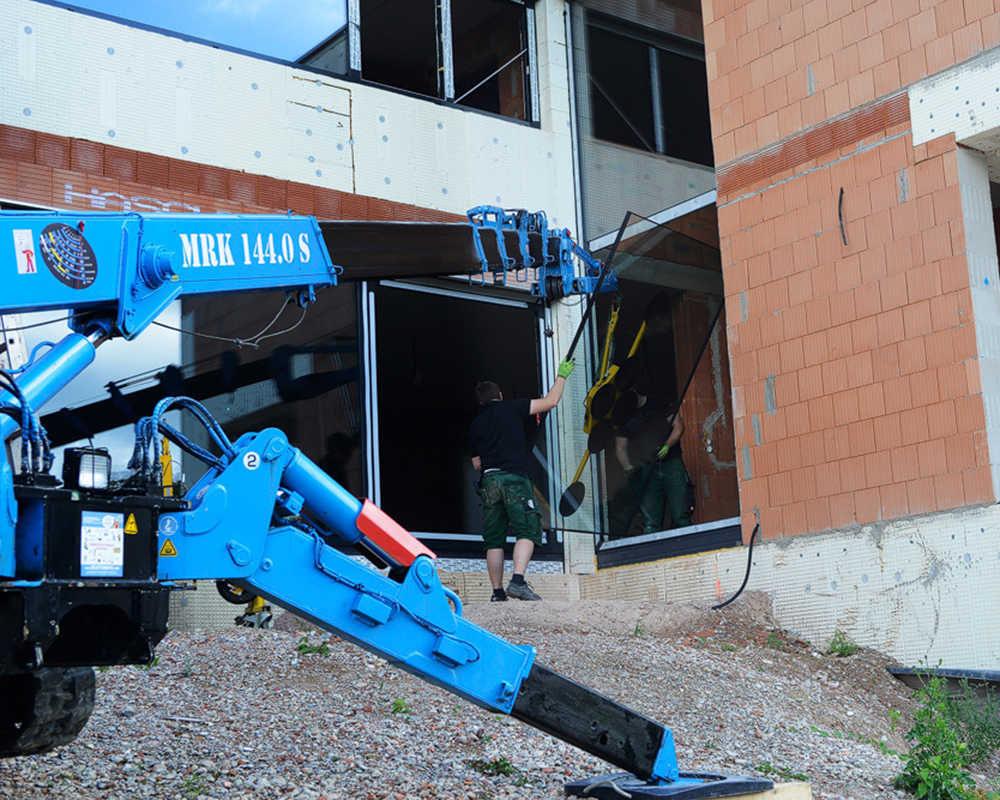

Further product images
