Data sheet

VSG 3500 K MH - Vacuum Suction system up to 3.500 kg capacity - for long panes



Services included

  • Advice on rental, purchase and project planning
  • Handling service
  • Payment and financing options
  • Fast and customised delivery options
  • Long-term rental models
  • Equipment replacement & spare parts service/li>
  • Digital services
  • Tested quality/li>
Optional additional services

  • Express delivery
  • Maintenance Plus
  • Instruction/training
  • Planning and advice service
  • Device operator
  • Handling Service
Brief description

Vacuum suction system for heavy panes and façade elements up to 3500 kg

  • Overall depth in mm 420 mm
  • Suction (LxW) in mm min. (base frame) 2,250 x 1,500
  • Suction (LxW) in mm max. with extension arms 4,090 x 2,000 short arms / 5,890 x 2,000 long arms
Long description

For use with extremely large panes with a weight of 3.5 tonnes.

The VSG 3500K vacuum suction system is the perfect solution: The system can lift panes that are up to 10 m long and 3.2 m wide. Simply operated by remote control, glass panes or façade sections of up to 3.5 tonnes can be turned vertically and made to lay flat at a 90° angle.

Maximum safety: the system is battery-powered and has a 4-circuit system. This corresponds to the currently highest safety standards. Furthermore, in contrast to other manufacturers, the Heavydrive systems have been designed so that no further safety measures are necessary







Data sheet (VSG 3500 K MH lang)

Features

Capacity: 3500 kg
Net Weight: 680 kg
Overall depth: 420 mm
Pane vertical dimensions max.: 7890 x 4000 mm
Pane horizontal dimensions max.: 6890 x 3000 mm
Suction (L x W) (base frame): 2250 x 1500 mm
Suction Cups : 12 x T40
Suction (LxW) with extension arms : 4090 x 2000 mm
Suction (LxW) with extension arms : 5890 x 2000 mm
Tilting : 90° - hydraulically by remote control
Rotation : 360°- fully motorised by remote control
Safety System : 4 circuit vacuum system
Battery : 24 V, 3-4 days continuous use, without recharging (recharging via 220 V plug)

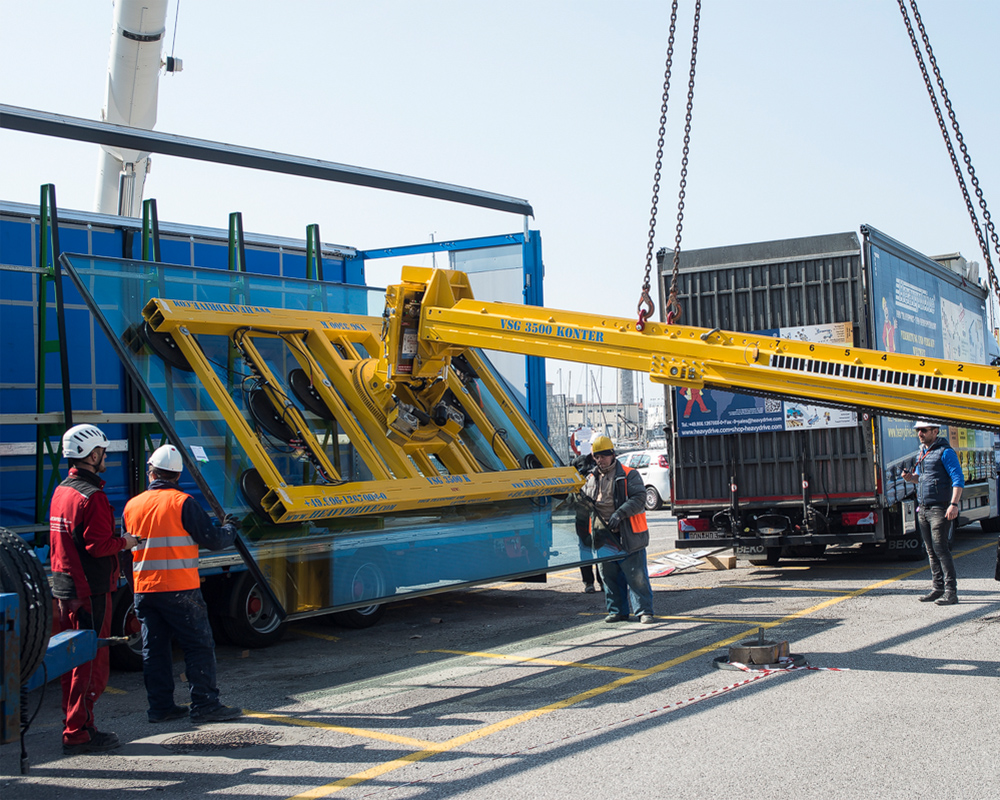

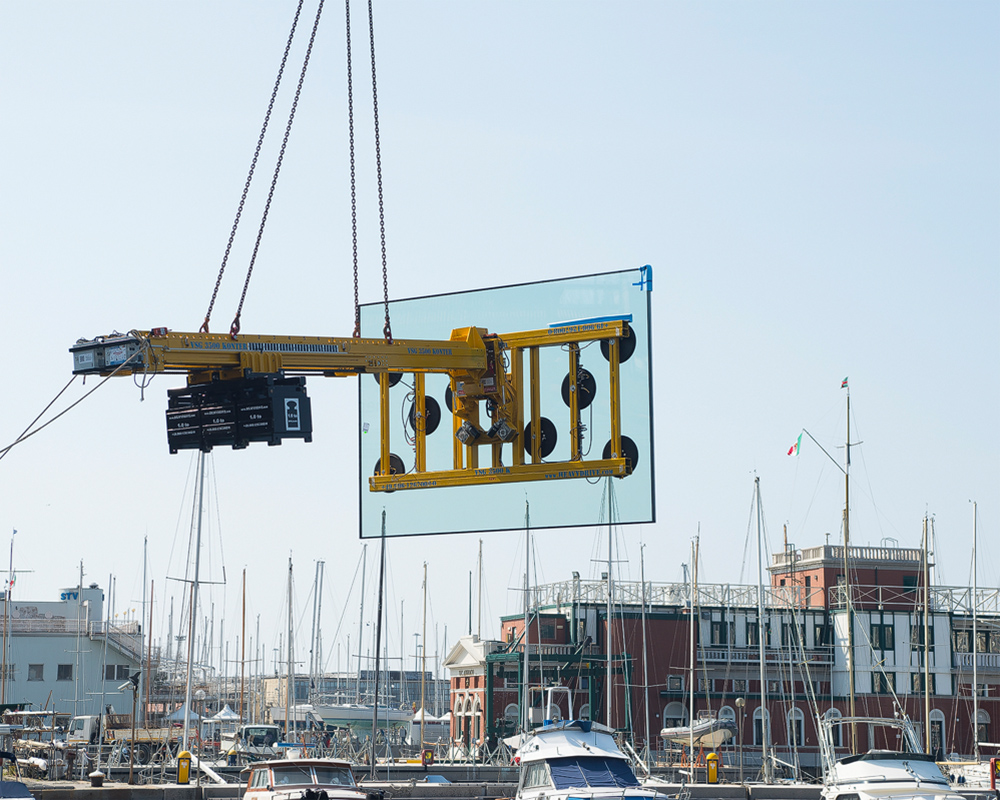

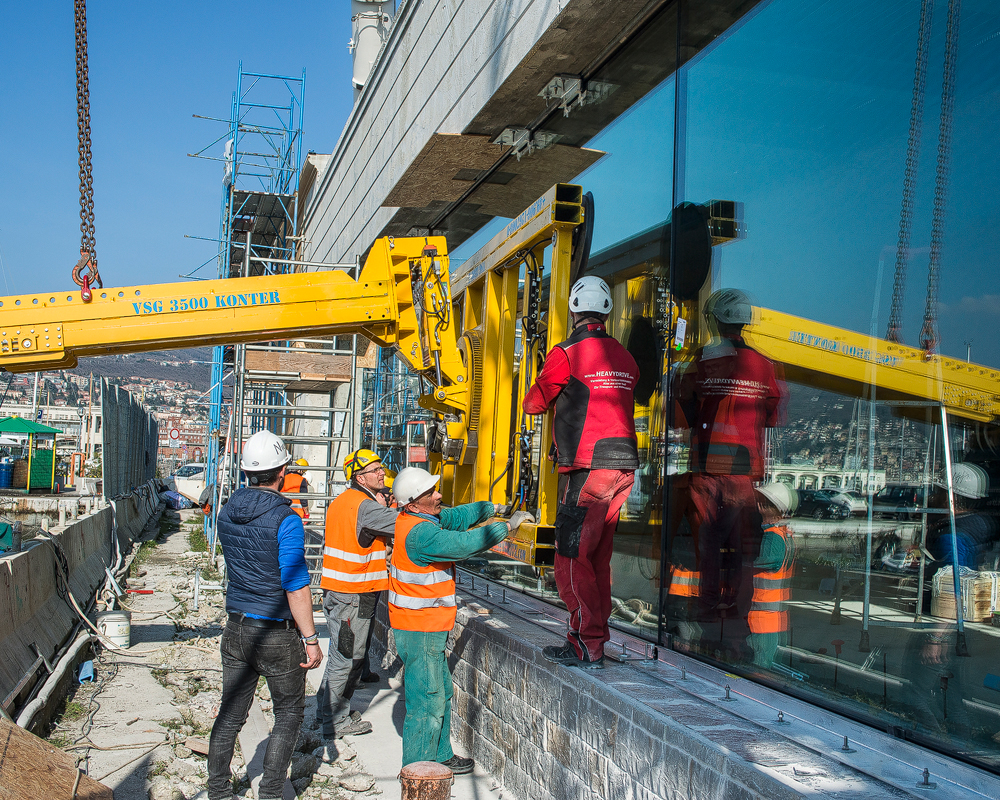

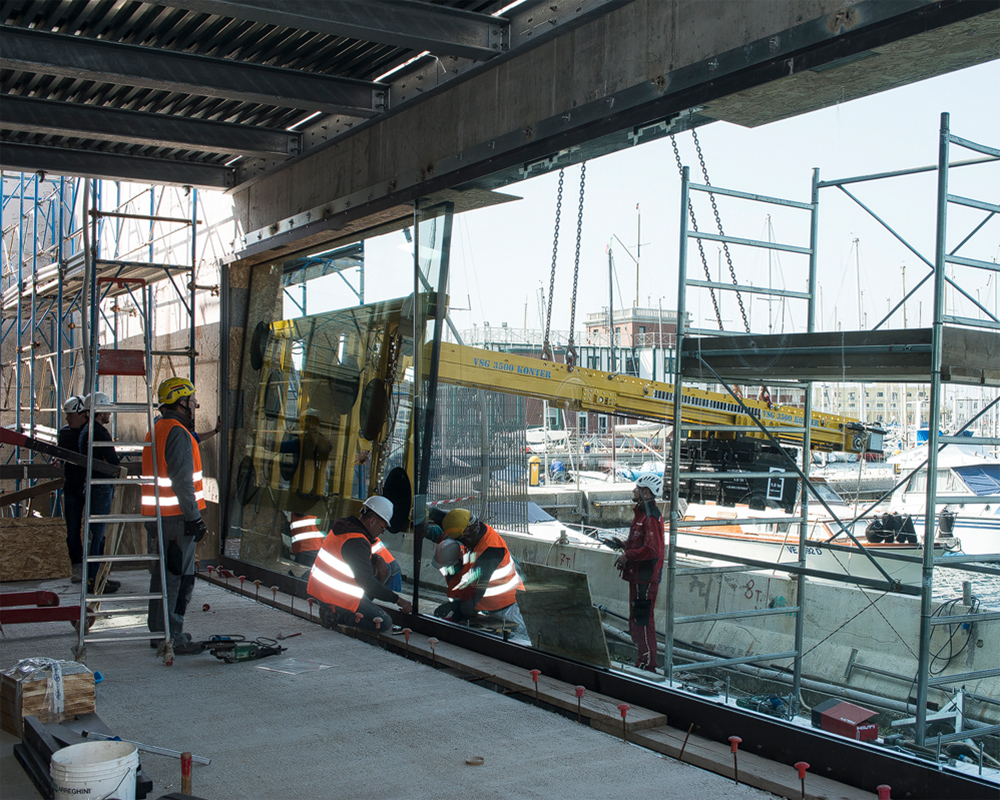

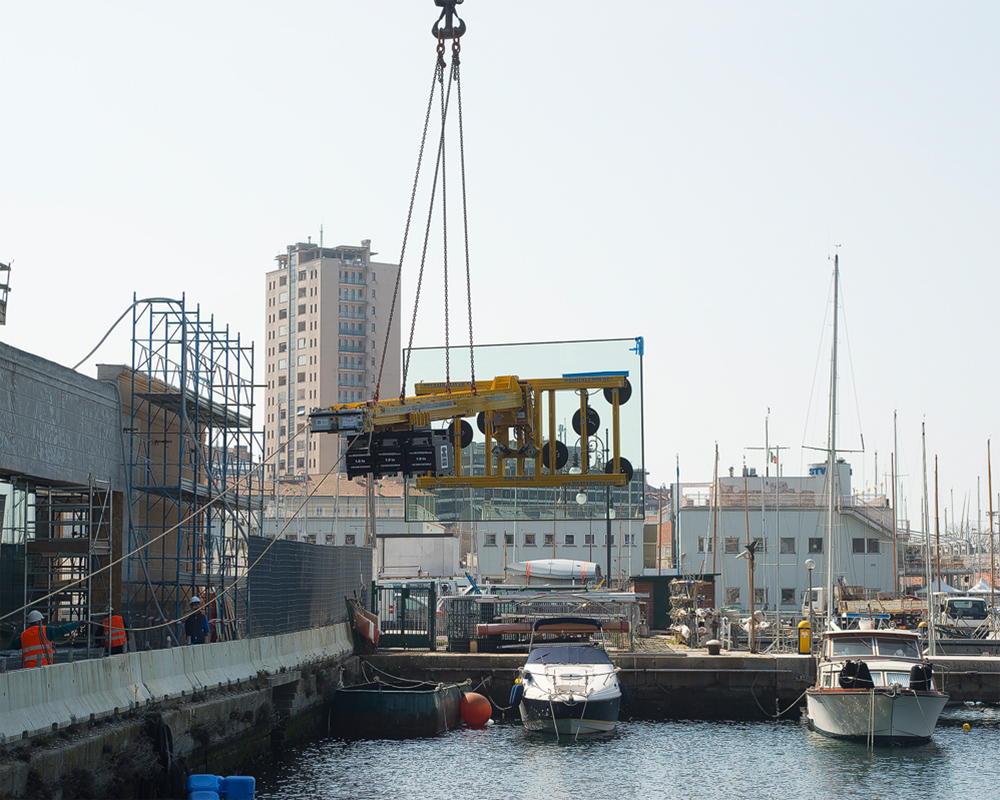

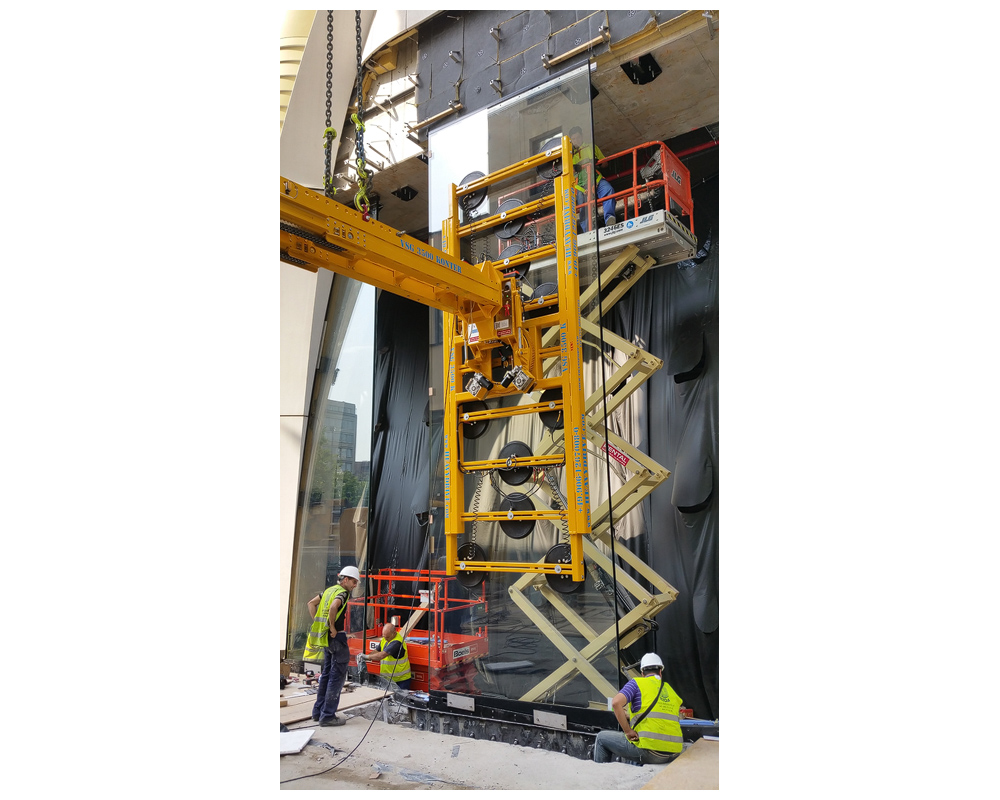

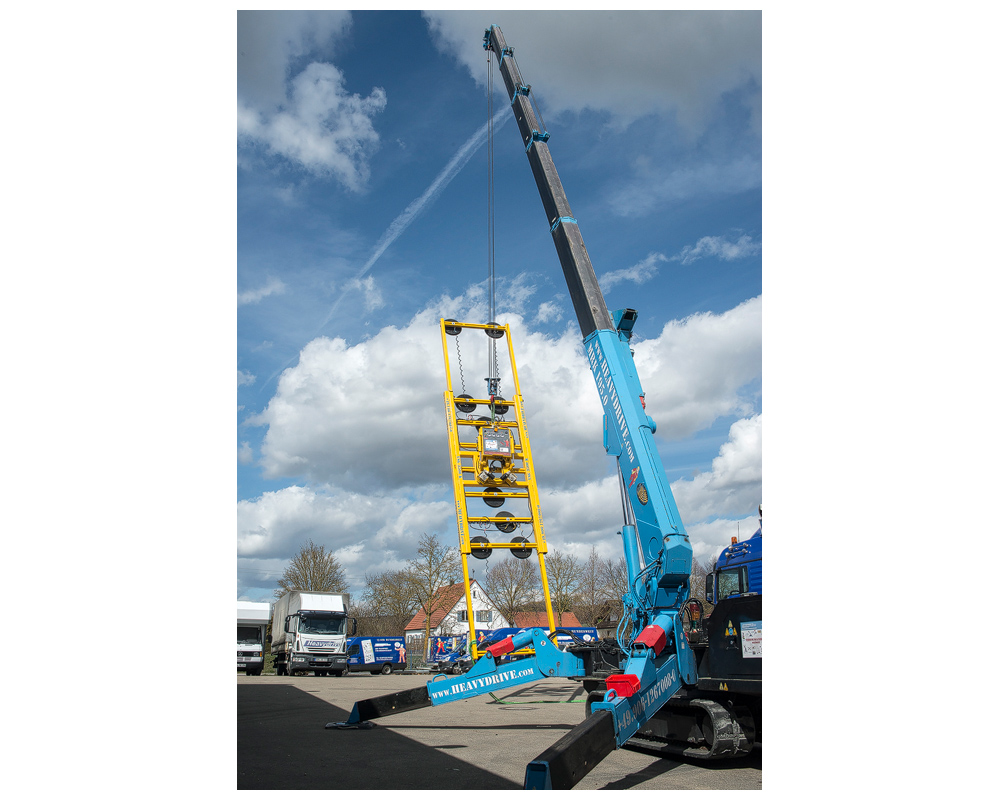

Further product images

VSG 3500 K MH - Vacuum Suction system up to 3.500 kg capacity - for long panes | VSG 3500 K MH - Vacuum Suction system up to 3.500 kg capacity - for long panes
VSG 3500 K MH - Vacuum Suction system up to 3.500 kg capacity - for long panes | VSG 3500 K MH - Vacuum Suction system up to 3.500 kg capacity - for long panes
VSG 3500 K MH - Vacuum Suction system up to 3.500 kg capacity - for long panes | VSG 3500 K MH - Vacuum Suction system up to 3.500 kg capacity - for long panes
VSG 3500 K MH - Vacuum Suction system up to 3.500 kg capacity - for long panes | VSG 3500 K MH - Vacuum Suction system up to 3.500 kg capacity - for long panes
VSG 3500 K MH - Vacuum Suction system up to 3.500 kg capacity - for long panes | VSG 3500 K MH - Vacuum Suction system up to 3.500 kg capacity - for long panes
VSG 3500 K MH - Vacuum Suction system up to 3.500 kg capacity - for long panes | VSG 3500 K MH - Vacuum Suction system up to 3.500 kg capacity - for long panes
VSG 3500 K MH - Vacuum Suction system up to 3.500 kg capacity - for long panes | VSG 3500 K MH - Vacuum Suction system up to 3.500 kg capacity - for long panes
VSG 3500 K MH - Vacuum Suction system up to 3.500 kg capacity - for long panes | VSG 3500 K MH - Vacuum Suction system up to 3.500 kg capacity - for long panes
VSG 3500 K MH - Vacuum Suction system up to 3.500 kg capacity - for long panes | VSG 3500 K MH - Vacuum Suction system up to 3.500 kg capacity - for long panes
