Data sheet

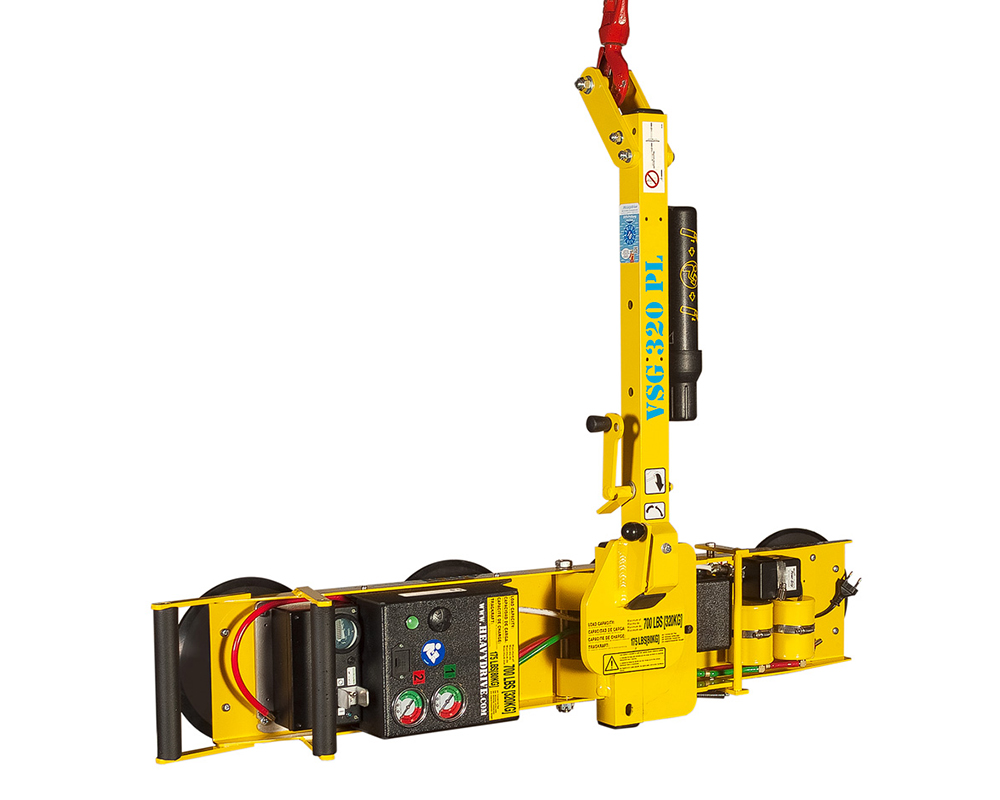

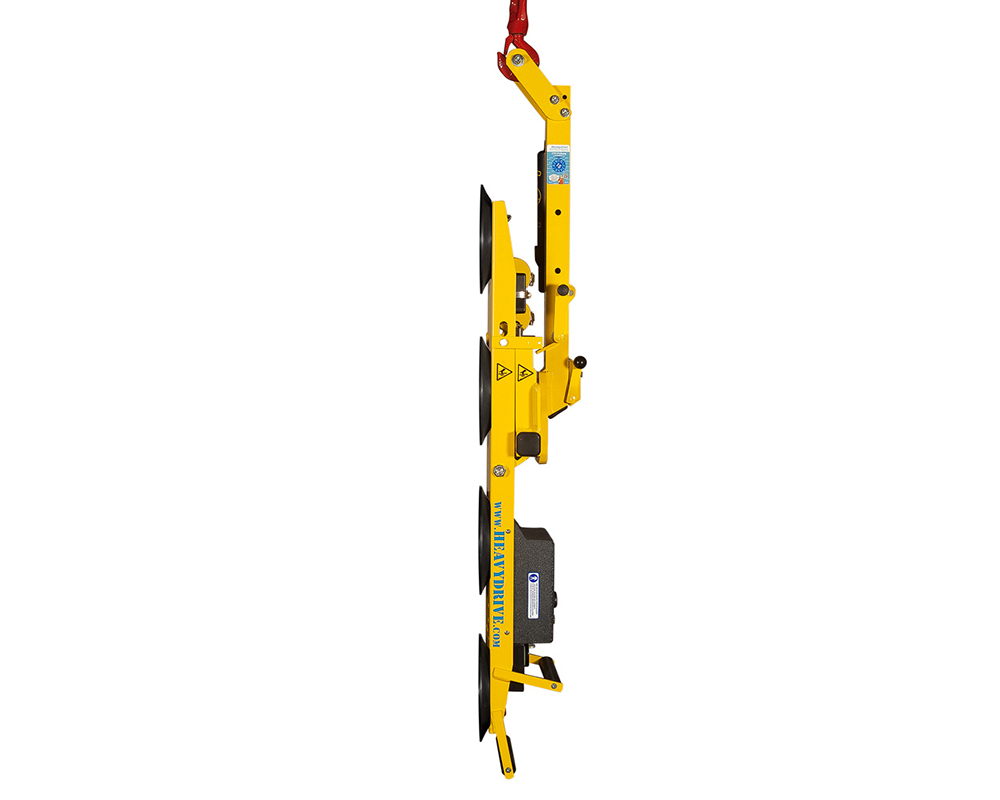

VSG 320 PL - Vacuum Suction System for Long Panes with bis 320 kg capacity, Narrow Version
Services included
- Advice on rental, purchase and project planning
- Handling service
- Payment and financing options
- Fast and customised delivery options
- Long-term rental models
- Equipment replacement & spare parts service/li>
- Digital services
- Tested quality/li>
Optional additional services
- Express delivery
- Maintenance Plus
- Instruction/training
- Planning and advice service
- Device operator
- Handling Service
Brief description
Long description
- The all-rounder for wall and roof panes measuring
- Suction (LxW) in mm 1,290 x 305
Long description

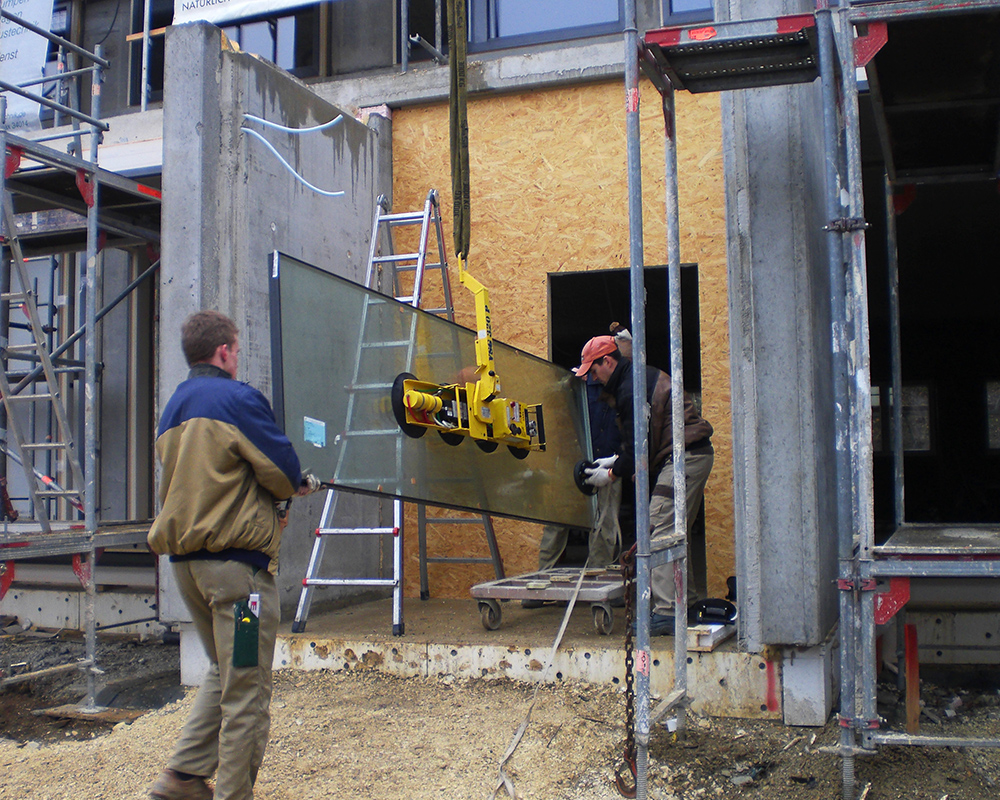

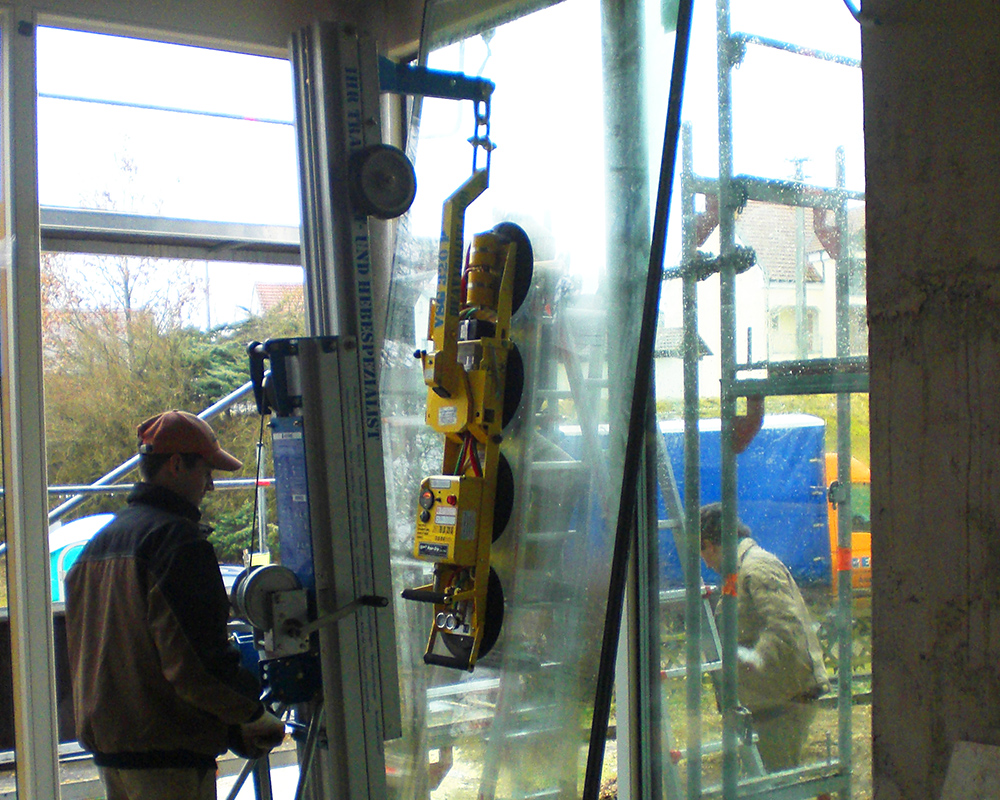

The all rounder with only 34 kg weight and 233 mm depth, built out of aluminium, this system is ideal for glazing behind scaffolding. A vacuum lifting device for glass panes up to 320 kg, 360° rotatable and thereby every 90° automatically lockable, 90° retractable. Safety is provided by a 2 circuit vacuum system. It is tansported in a robust aluminium crate..
Data sheet (VSG 320 PL)
Features
| Capacity: | 320 kg |
|---|---|
| Net Weight: | 34 kg |
| Overall depth: | 233 mm |
| Pane vertical dimensions max.: | 3290 x 1305 mm |
| Pane horizontal dimensions max.: | 2290 x 1305 mm |
| Suction (L x W) (base frame): | 1290 x 305 mm |
| Suction Cups : | 4 x T13 |
|---|---|
| Tilting : | 90° |
| Rotation : | 180° |
| Lock : | 90° manually |
| Safety System : | 2 circuit vacuum system |
| Battery : | 12 V, 3-4 days of continuous use without charging; recharging via 110/220 V plug |
Further product images
