Data sheet

VSG 3000 KL 12 MH Vacuum Suction System up to 3000 kg capacity and 12 m suction width



Services included

  • Advice on rental, purchase and project planning
  • Handling service
  • Payment and financing options
  • Fast and customised delivery options
  • Long-term rental models
  • Equipment replacement & spare parts service/li>
  • Digital services
  • Tested quality/li>
Optional additional services

  • Express delivery
  • Maintenance Plus
  • Instruction/training
  • Planning and advice service
  • Device operator
  • Handling Service
Brief description

Vacuum suction system for assembling glass fins up to 3000 kg and 16 m width.



Long description

It is perfectly suitable for lifting glass fins up to 12 m suction length and a weight of 3000 kg. In a few minutes the systems is ready for operation.

Due to its flexible extension arms the suction length is variable from 6 m stepwise to 12 m respectively 16 m.

Glass fins up to a suction length of 16 m can be lifted and assembled with the VSG 3000 KL 12 MH.

The operation of this suction system is very easy. All functions will be controlled by radio remote control.

The standardized 2-4 circuit system controls itself and provides the required safety on your construction sites.

There is also the possibility to assembly fins with an extra overlaying frame. Heavydrive can provide a conversion set.

Please do not hesitate to enquire!







Data sheet (VSG 3000 KL 12 MH)

Features

Capacity: 3000 kg
Net Weight: 700 kg
Overall depth: 380 mm
Suction (L x W) (base frame): 6230 x 400 mm
Suction Cups : 28
Suction (LxW) with extension arms : 11670 x 400 mm
Tilting : 90° - hydraulically
Rotation : 360°- motorised
Lock : any times
Safety System : 4 circuit vacuum system
Battery : 24 V, 3-4 days continuous use, without recharging (recharging via 220 V plug)

Further product images

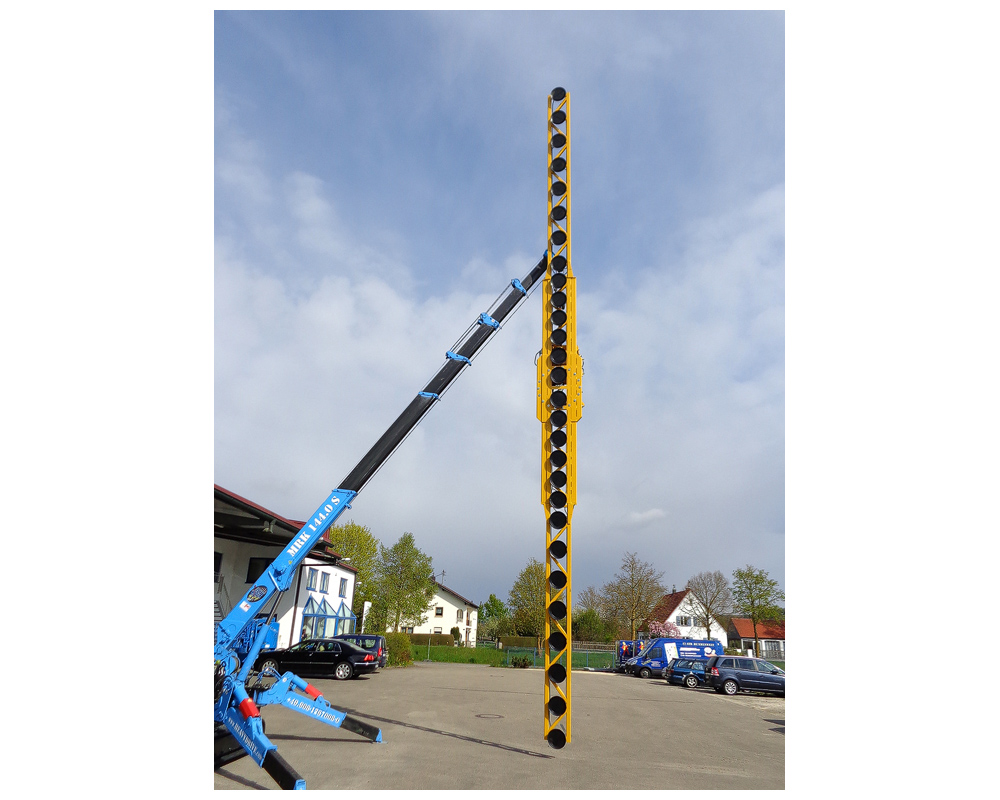

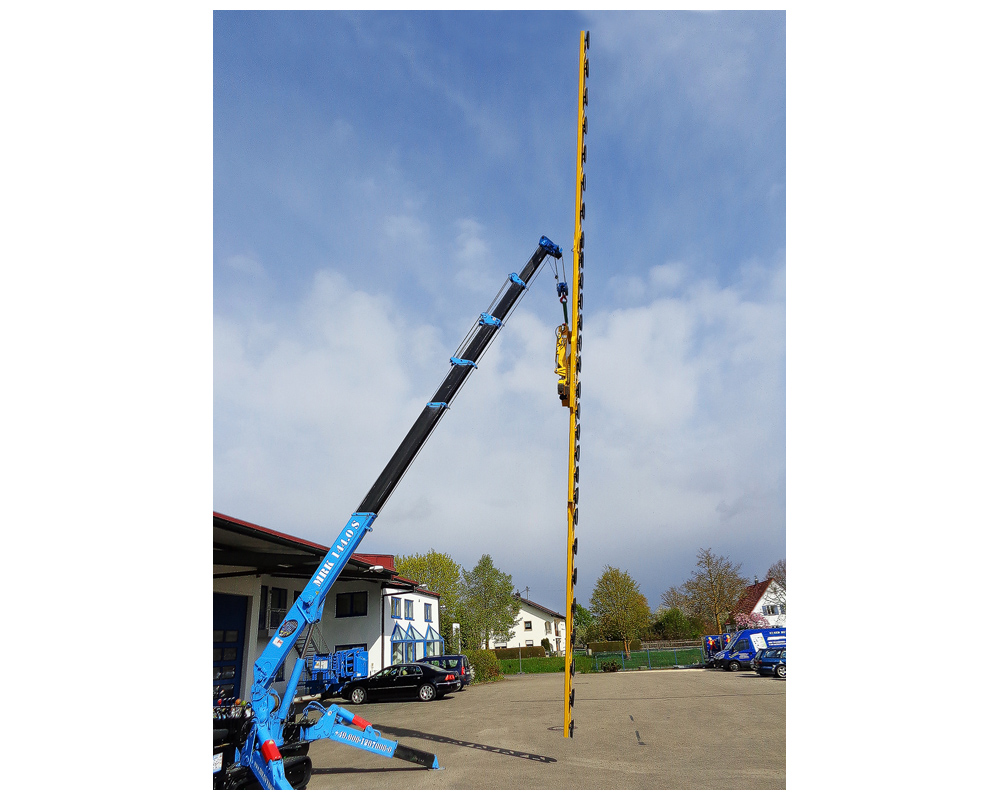

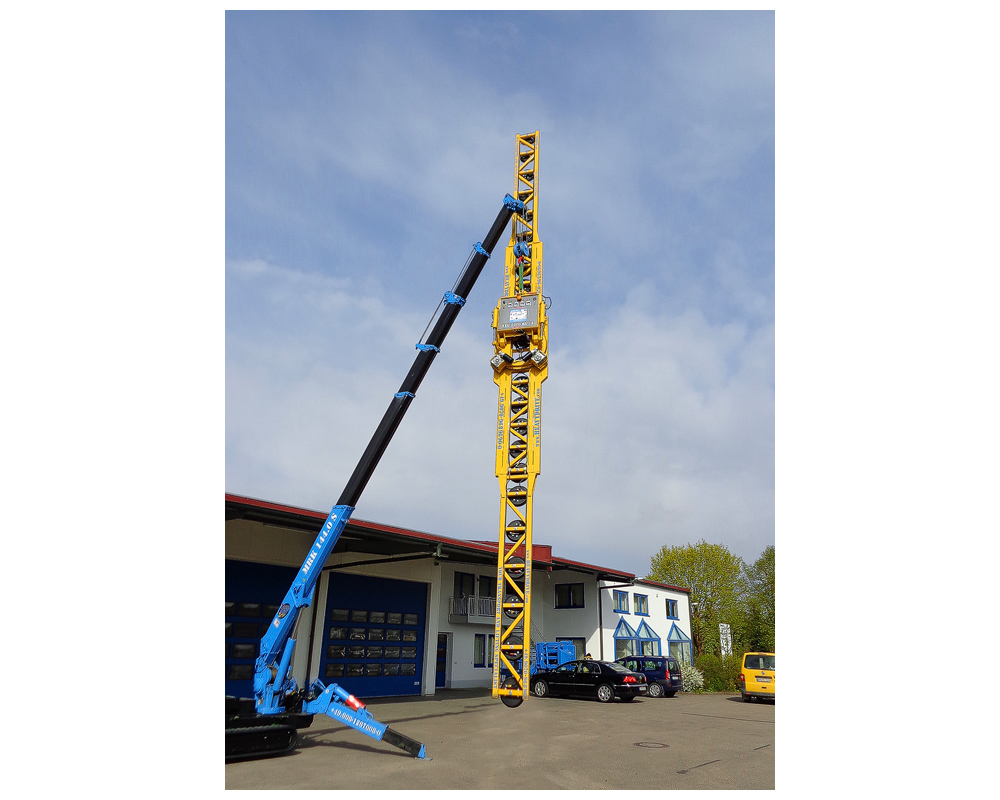

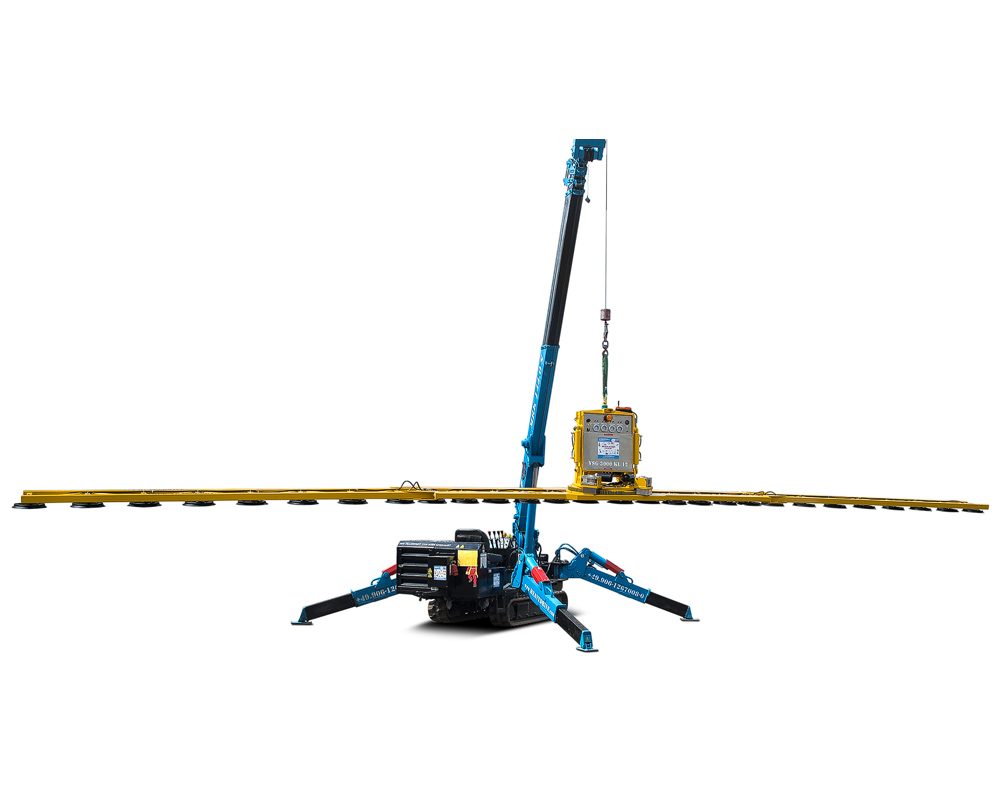

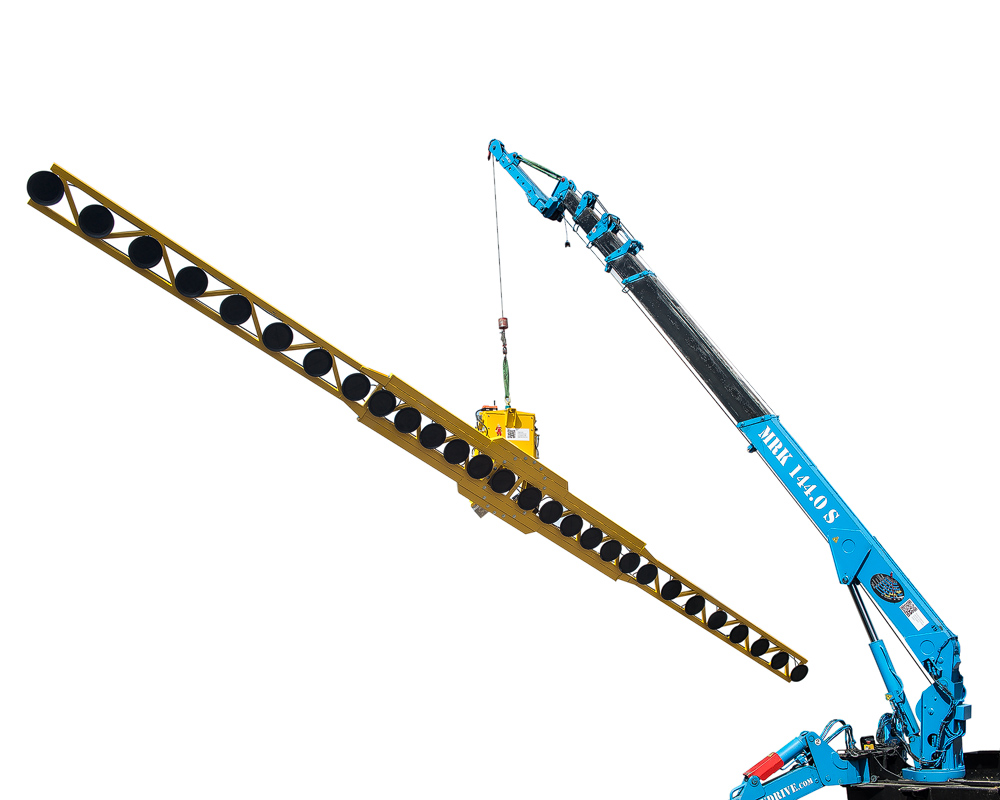

VSG 3000 KL 12 MH Vacuum Suction System up to 3000 kg capacity and 12 m suction width | VSG 3000 KL 12 MH Vacuum Suction System up to 3000 kg capacity and 12 m suction width
VSG 3000 KL 12 MH Vacuum Suction System up to 3000 kg capacity and 12 m suction width | VSG 3000 KL 12 MH Vacuum Suction System up to 3000 kg capacity and 12 m suction width
VSG 3000 KL 12 MH Vacuum Suction System up to 3000 kg capacity and 12 m suction width | VSG 3000 KL 12 MH Vacuum Suction System up to 3000 kg capacity and 12 m suction width
VSG 3000 KL 12 MH Vacuum Suction System up to 3000 kg capacity and 12 m suction width | VSG 3000 KL 12 MH Vacuum Suction System up to 3000 kg capacity and 12 m suction width
VSG 3000 KL 12 MH Vacuum Suction System up to 3000 kg capacity and 12 m suction width | VSG 3000 KL 12 MH Vacuum Suction System up to 3000 kg capacity and 12 m suction width
VSG 3000 KL 12 MH Vacuum Suction System up to 3000 kg capacity and 12 m suction width | VSG 3000 KL 12 MH Vacuum Suction System up to 3000 kg capacity and 12 m suction width
