Data sheet

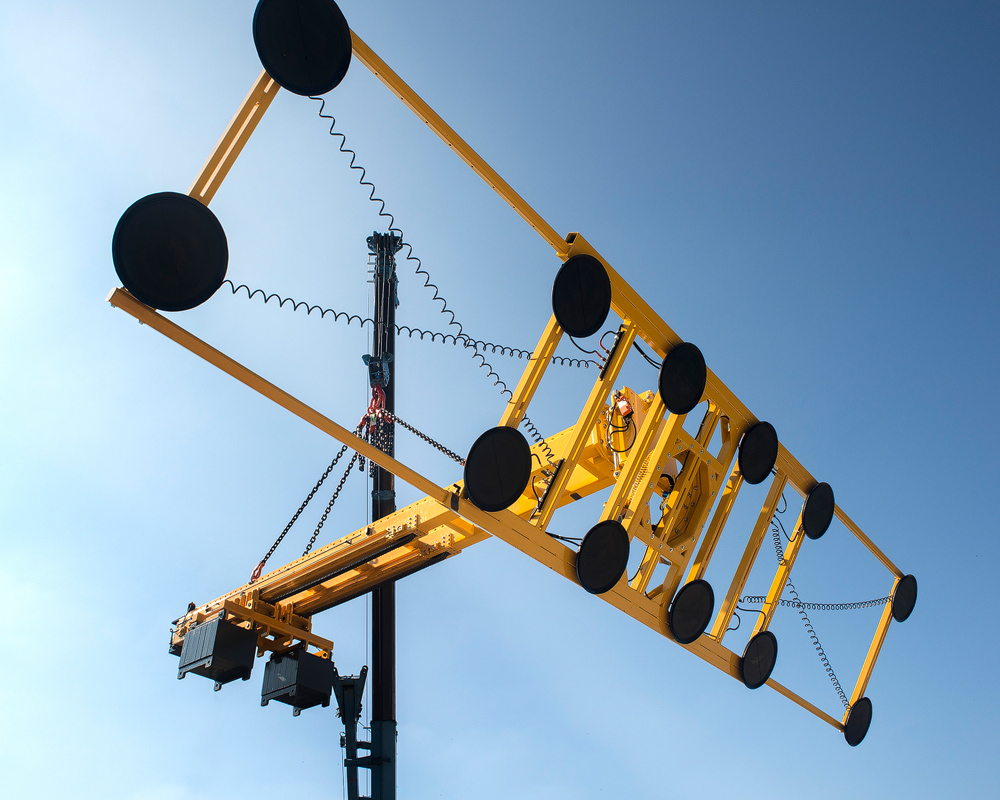

VSG 3000 K MH -1,8 - Vacuum Suction system up to 3.000 kg capacity
Services included
- Advice on rental, purchase and project planning
- Handling service
- Payment and financing options
- Fast and customised delivery options
- Long-term rental models
- Equipment replacement & spare parts service/li>
- Digital services
- Tested quality/li>
Optional additional services
- Express delivery
- Maintenance Plus
- Instruction/training
- Planning and advice service
- Device operator
- Handling Service
Brief description
Long description
Vacuum suction system for heavy panes and façade elements up to 3000 kg
- Overall depth in mm 420 mm
- Suction (LxW) in mm min. (base frame) 2,250 x 1,500 mm
- Suction (LxW) in mm max. with extension arms 4,090 x 2,000 mm short arms / 5,890 x 2,000 long arms
Long description
This is a vacuum suction system for massive glass panes of up to 3,000 kg and up to 8.6 m in length. With infinitely adjustable suction pads for any pane shape. 360° rotation and 90° swivel hydraulically via remote control. Secured by a 4-circuit vacuum system. Also available with non-marking suction pads for coated panes.
Data sheet (VSG 3000 K MH -1,8)
Features
| Capacity: | 3000 kg |
|---|---|
| Net Weight: | 680 kg |
| Overall depth: | 420 mm |
| Pane vertical dimensions max.: | 7890 x 4000 mm |
| Pane horizontal dimensions max.: | 6890 x 3000 mm |
| Suction (L x W) (base frame): | 4600 x 2100 mm |
| Suction Cups : | 12 x T40 |
|---|---|
| Tilting : | 90° - hydraulically by remote control |
| Rotation : | 360°- fully motorised by remote control |
| Safety System : | 4 circuit vacuum system |
| Battery : | 24 V, 3-4 days continuous use, without recharging (recharging via 220 V plug) |

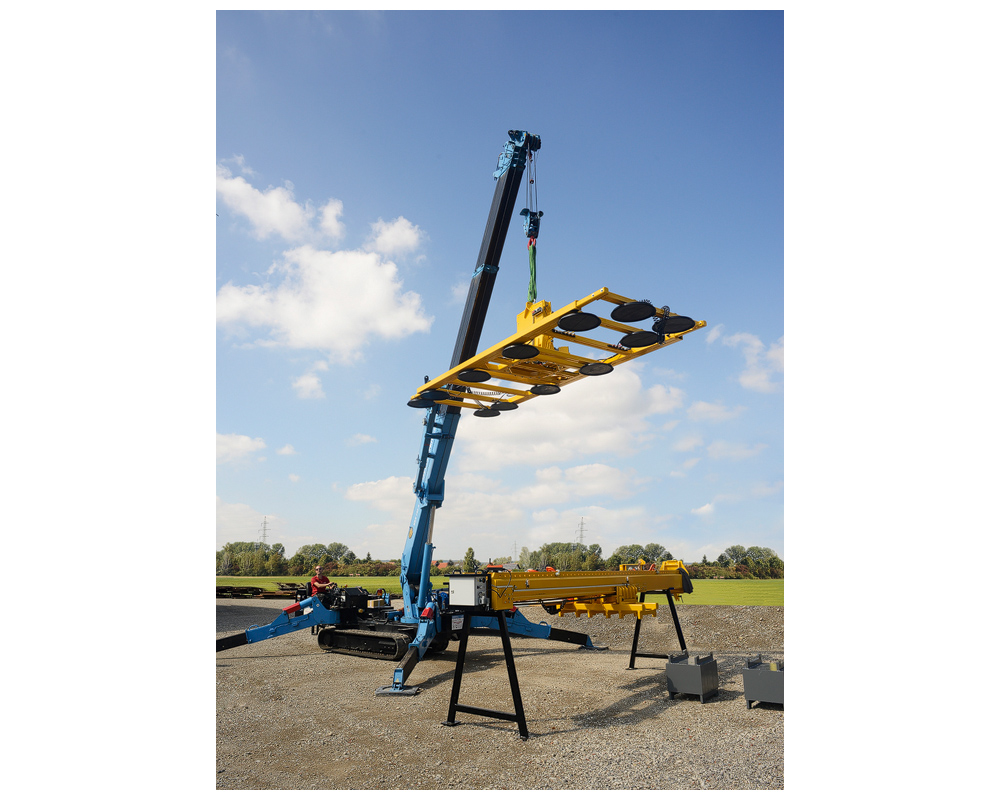

Further product images
