Data sheet

MRK 168.0 assembly crane with a capacity of 3.8 tonnes



Services included

  • Advice on rental, purchase and project planning
  • Handling service
  • Payment and financing options
  • Fast and customised delivery options
  • Long-term rental models
  • Equipment replacement & spare parts service/li>
  • Digital services
  • Tested quality/li>
Optional additional services

  • Express delivery
  • Maintenance Plus
  • Instruction/training
  • Planning and advice service
  • Device operator
  • Handling Service
Brief description

This assembly crane has a capacity of 3.83 tonnes, is movable under a load of 500 kg and fits optimally into industrial lifts.

Long description

This compact mobile caterpillar crane is ideal for lifting industrial loads, it has a capacity of 3.8 tonnes and a hook height of 16.8 m. It can either be electrically powered or diesel powered and is therefore suitable for both indoor and outdoor use. With its caterpillar tracks, it can drive on any ground and thanks to its non-marking (non-colouring) tracks, it is can also be driven on building floors. Through various special HEAVYDRIVE assembly tips, you can even position loads of up to 300 kg up to 3 m under balconies, eaves and other projections inaccessible to other cranes. In combination with our vacuum suction systems, you can bring almost every pane and panel made of of glass, concrete, stone, metal or plastic to its destination. Our HEAVYDRIVE operating personnel are experts in manoeuvring the equipment jerk-free and exact to the millimetre - book them as well!







Data sheet (MRK 168.0)

Features

Lift Height: 16.8 m
Load capacity (goods to be lifted): 4,83 t x 2,7 m
Net Weight: 6500 kg
Max. Hook Height Incl. tip S1 : 22,4 m with 4,1 m tip
Safety System : Load torque limiter Boom angle and load gauge Hydraulic pressure safety valve Hook securer Self-locking engine brake Winch cut
Max. Working Radius : 16 m
Cable : IWCR 8 mm x 95 m

Telescopic System
Projection length : 5.736- 16.475 m
Telescoping Speed : 811,7 m/ 54,2 s
Boom Type : 5-section, hydraulic telescopic boom
Turning Angle : 360° continous
Turning Speed : 2,5 RPM
Cable Speed : 10 m / min. (4- fall)13,3 m / min. (1- fall)
Supporting Feet : Fully hydraulic

Carriage
Drive : Hydrostatic, continuously variable forward and reverse
Speed : 0- 3 km/ h
Gradability : 20% / 45°
Running Gear Length : 2100 mm
Ground Pressure : 0,52 kg/cm²
Chain Width : 320 mm

Motor
Type : Yanmar 3 cylinders, water-cooled, direct injection
Performance : 21,8 KW / 2400 RPM
Fuel : Petrol and electric 380 V
Tank Capacity : 60 l

Further product images

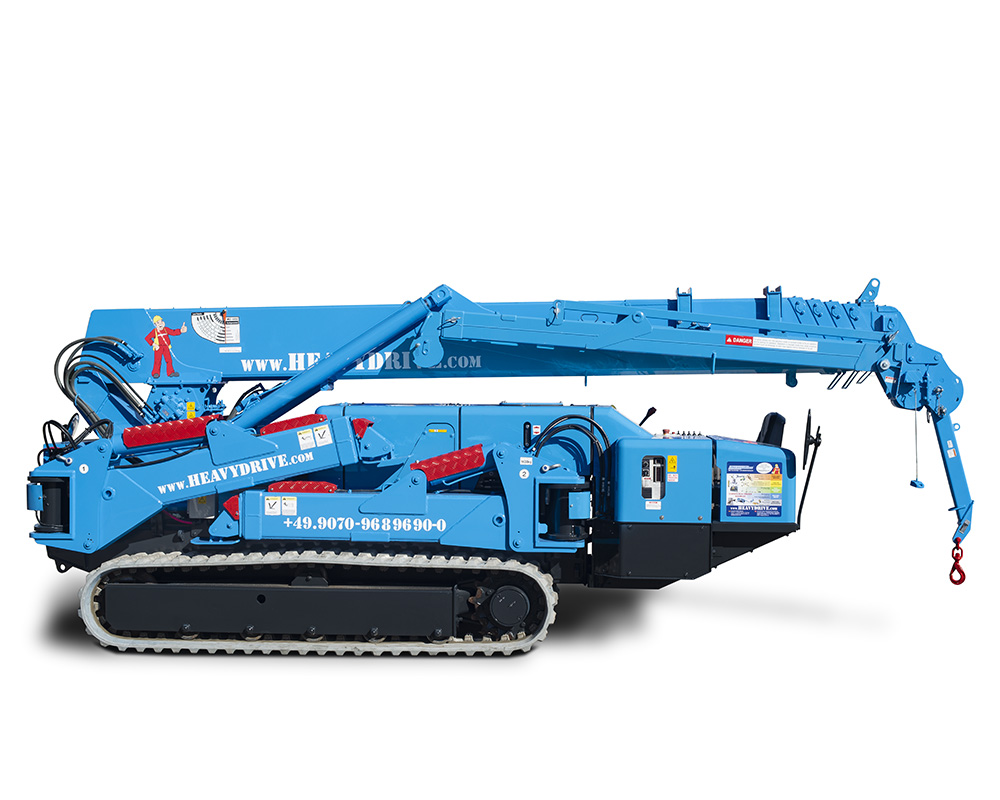

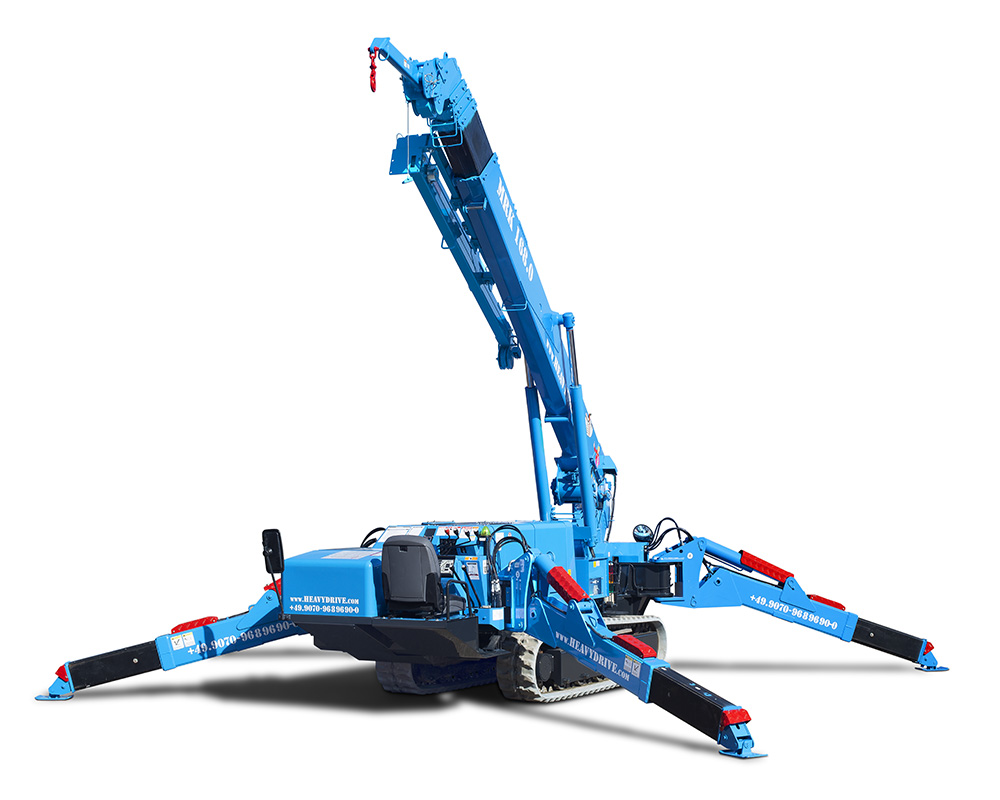

MRK 168.0 assembly crane with a capacity of 3.8 tonnes | MRK 168.0 assembly crane with a capacity of 3.8 tonnes

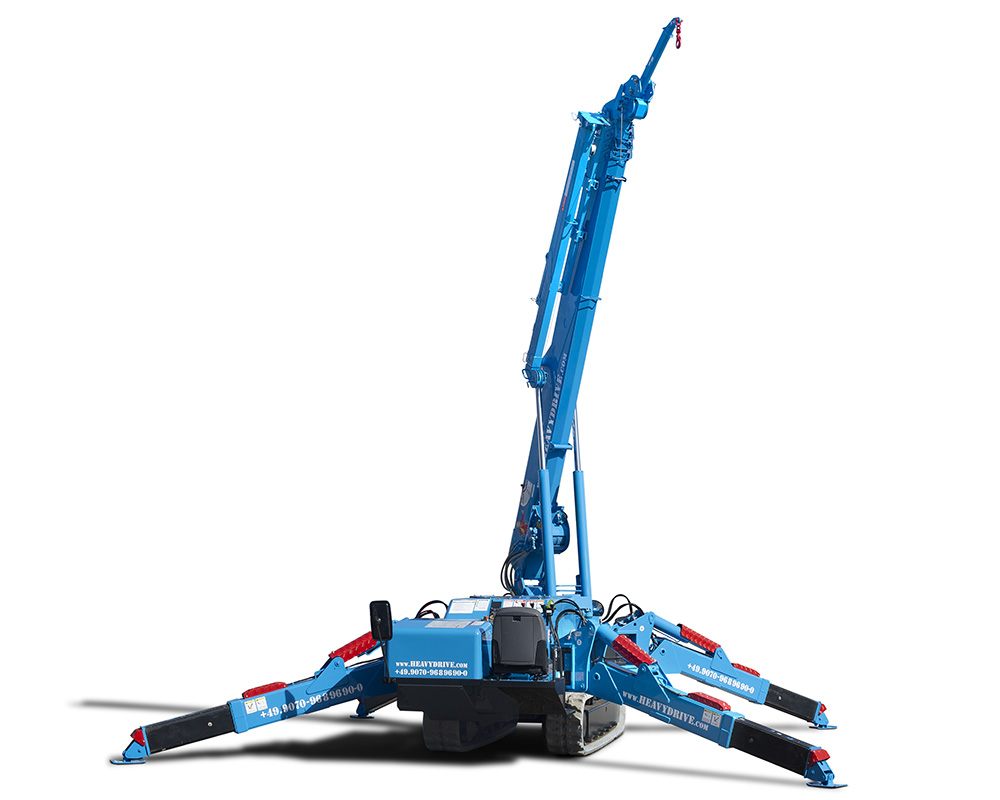

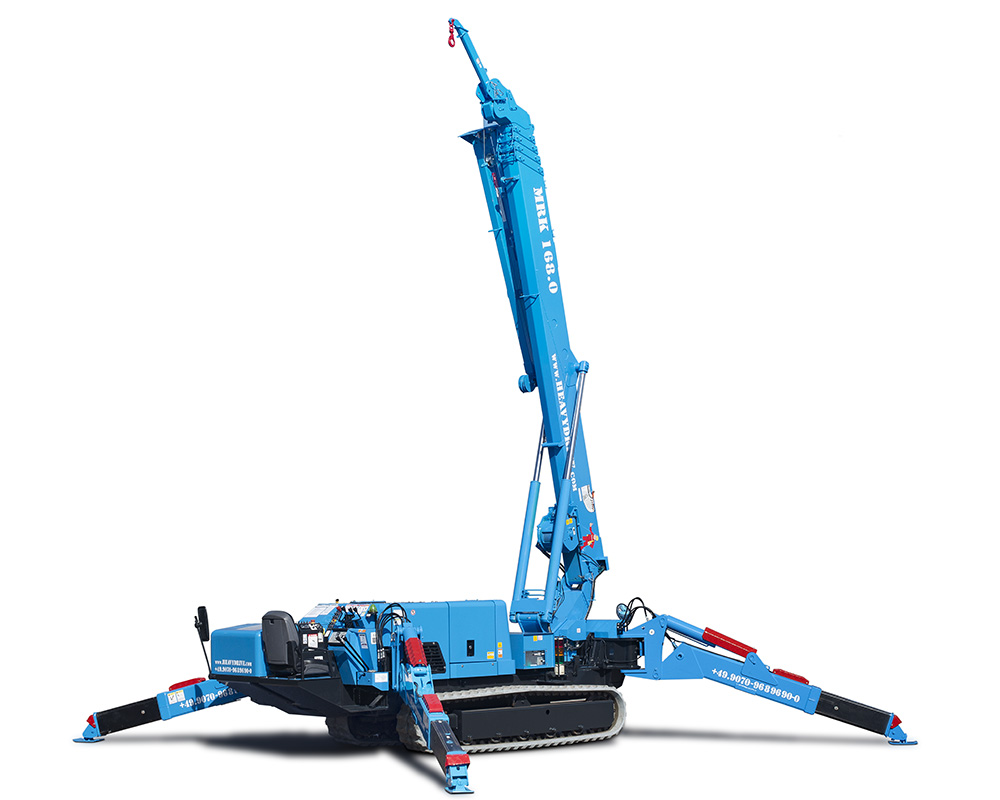

MRK 168.0 assembly crane with a capacity of 3.8 tonnes | MRK 168.0 assembly crane with a capacity of 3.8 tonnes

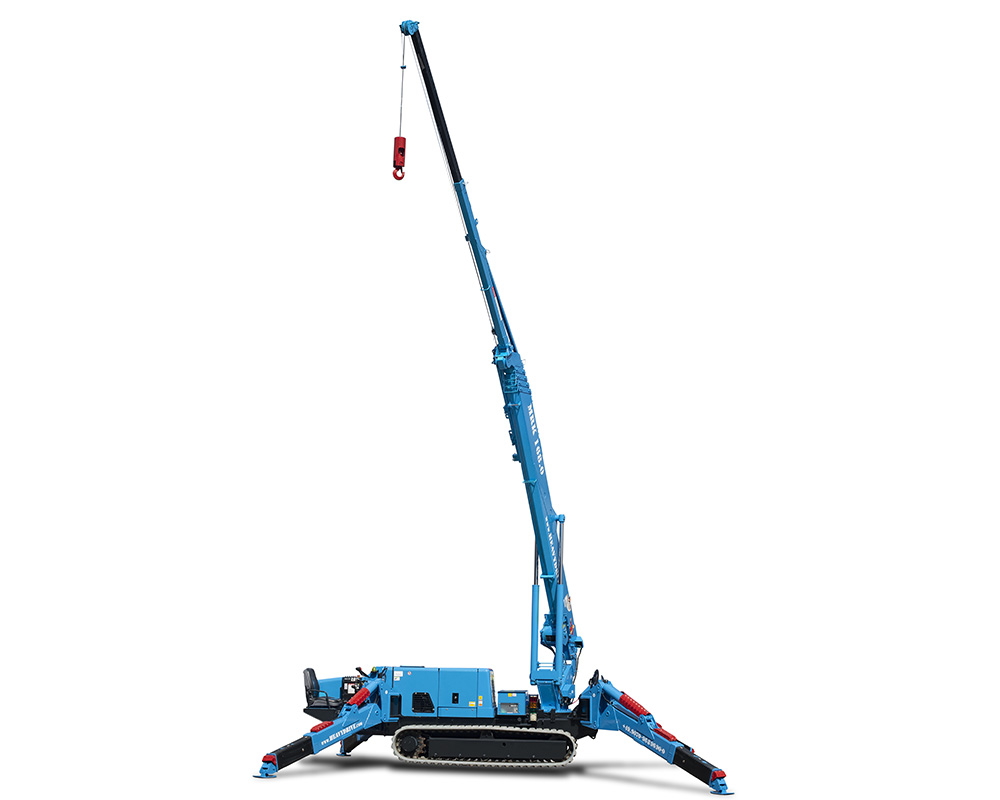

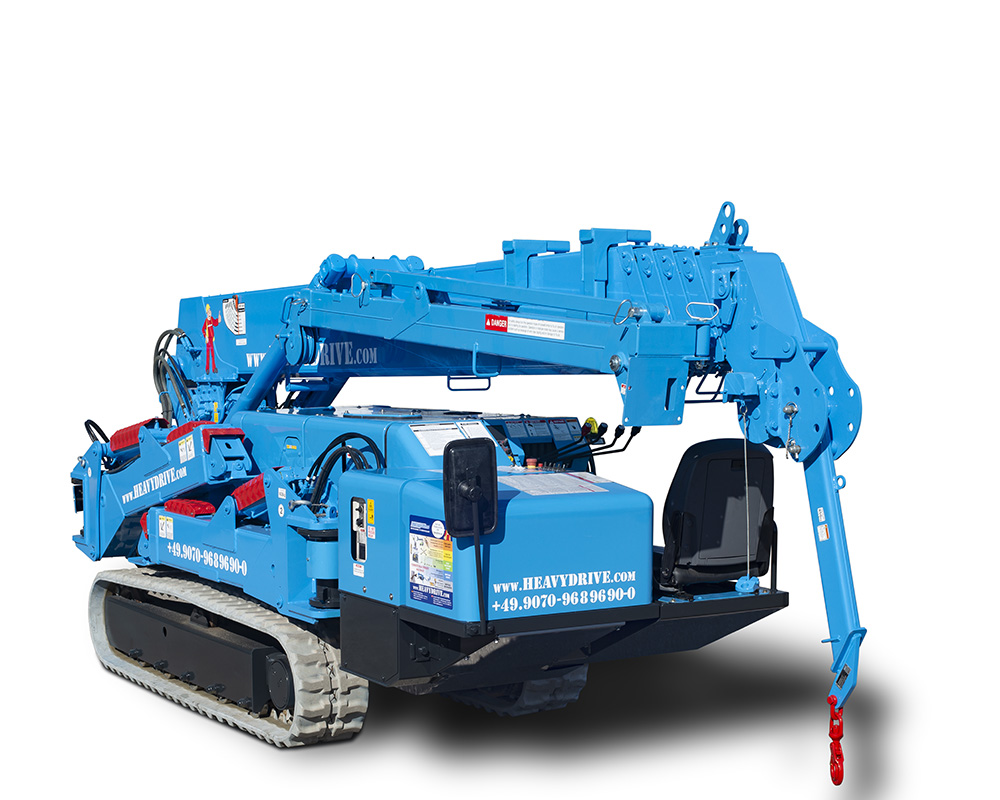

MRK 168.0 assembly crane with a capacity of 3.8 tonnes | MRK 168.0 assembly crane with a capacity of 3.8 tonnes
MRK 168.0 assembly crane with a capacity of 3.8 tonnes | MRK 168.0 assembly crane with a capacity of 3.8 tonnes
MRK 168.0 assembly crane with a capacity of 3.8 tonnes | MRK 168.0 assembly crane with a capacity of 3.8 tonnes
MRK 168.0 assembly crane with a capacity of 3.8 tonnes | MRK 168.0 assembly crane with a capacity of 3.8 tonnes
MRK 168.0 assembly crane with a capacity of 3.8 tonnes | MRK 168.0 assembly crane with a capacity of 3.8 tonnes
