Data sheet

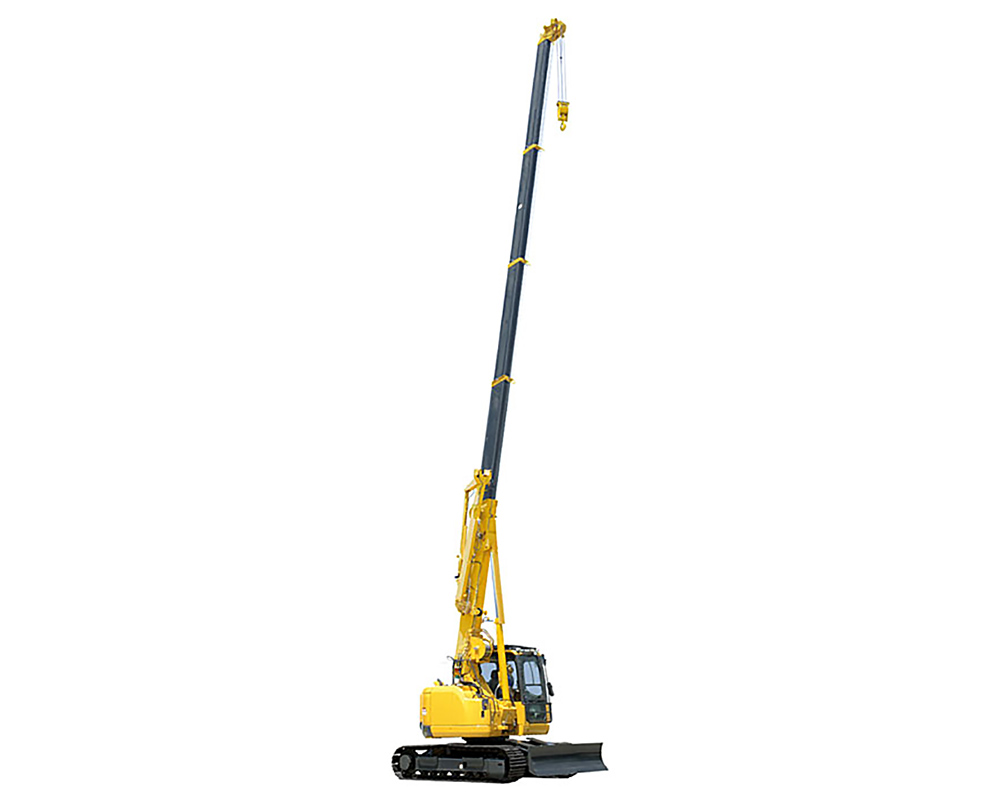

MRK 167.0 assembly crane with a capacity of 6.0 tonnes
Services included
- Advice on rental, purchase and project planning
- Handling service
- Payment and financing options
- Fast and customised delivery options
- Long-term rental models
- Equipment replacement & spare parts service/li>
- Digital services
- Tested quality/li>
Optional additional services
- Express delivery
- Maintenance Plus
- Instruction/training
- Planning and advice service
- Device operator
- Handling Service
Brief description
Long description
This powerful assembly crane has a capacity of 6.0 tonnes, is suitable for off-road use and movable under a load of 2.0 tonnes without supports.
Long description
This powerful and innovative crane offers market leading features, including a capacity of 6 tonnes and a bulldozer blade for impassable terrain.
Data sheet (MRK 167.0)
Features
| Lift Height: | 16.7 m |
|---|---|
| Load capacity (goods to be lifted): | 7,0 t x 2,6 m |
| Net Weight: | 15640 kg |
| Max. Hook Height Incl. tip S1 : | 22,4 m with 4,1 m tip |
|---|---|
| Safety System : | Load torque limiter Boom angle and load gauge Hydraulic pressure safety valve Hook securer Self-locking engine brake Winch cut |
| Max. Working Radius : | 16,10 m |
| Cable : | IWCR 6 mm x 160 m |
| Telescopic System | |
|---|---|
| Projection length : | 5.745- 16.265 m |
| Telescoping Speed : | 11,52 m/ 25 s |
| Boom Type : | 5-section, hydraulic telescopic boom |
| Turning Angle : | 360° continous |
| Turning Speed : | 3,4 RPM |
| Cable Speed : | 28/ 41 m / min. |
| Supporting Feet : | - WITHOUT - |
| Carriage | |
|---|---|
| Drive : | Hydrostatic, continuously variable forward and reverse |
| Speed : | 0- 5,1 km/ h |
| Gradability : | 34° |
| Ground Pressure : | 0,55 kg/cm² |
| Chain Width : | 500 mm |
| Motor | |
|---|---|
| Type : | Komatsu 4 cylinder, water-cooled, direct injection |
| Performance : | 68,4 KW / 2,200 RPM |
| Fuel : | Diesel |
| Tank Capacity : | 195 l |
