Data sheet
MRK 163.0 assembly crane with a capacity of 4.9 tonnes
Services included
- Advice on rental, purchase and project planning
- Handling service
- Payment and financing options
- Fast and customised delivery options
- Long-term rental models
- Equipment replacement & spare parts service/li>
- Digital services
- Tested quality/li>
Optional additional services
- Express delivery
- Maintenance Plus
- Instruction/training
- Planning and advice service
- Device operator
- Handling Service
Brief description
Long description
This diesel-driven assembly crane has a capacity of 4.9 tonnes and is movable under a load of 2 tonnes.
Long description

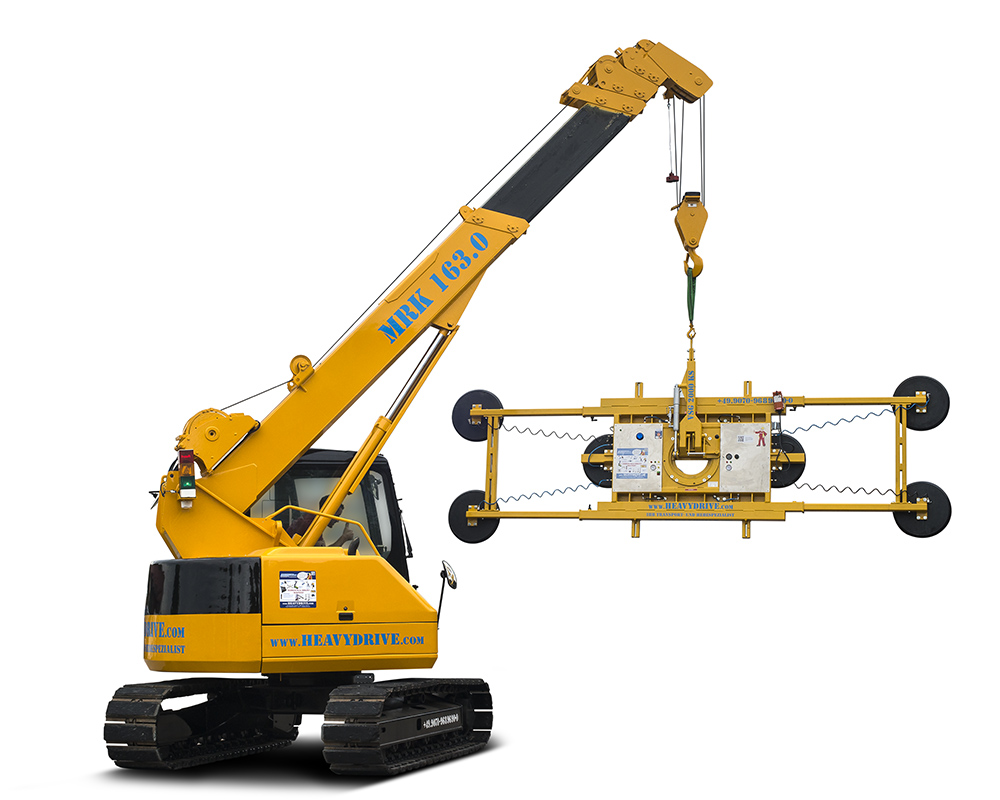

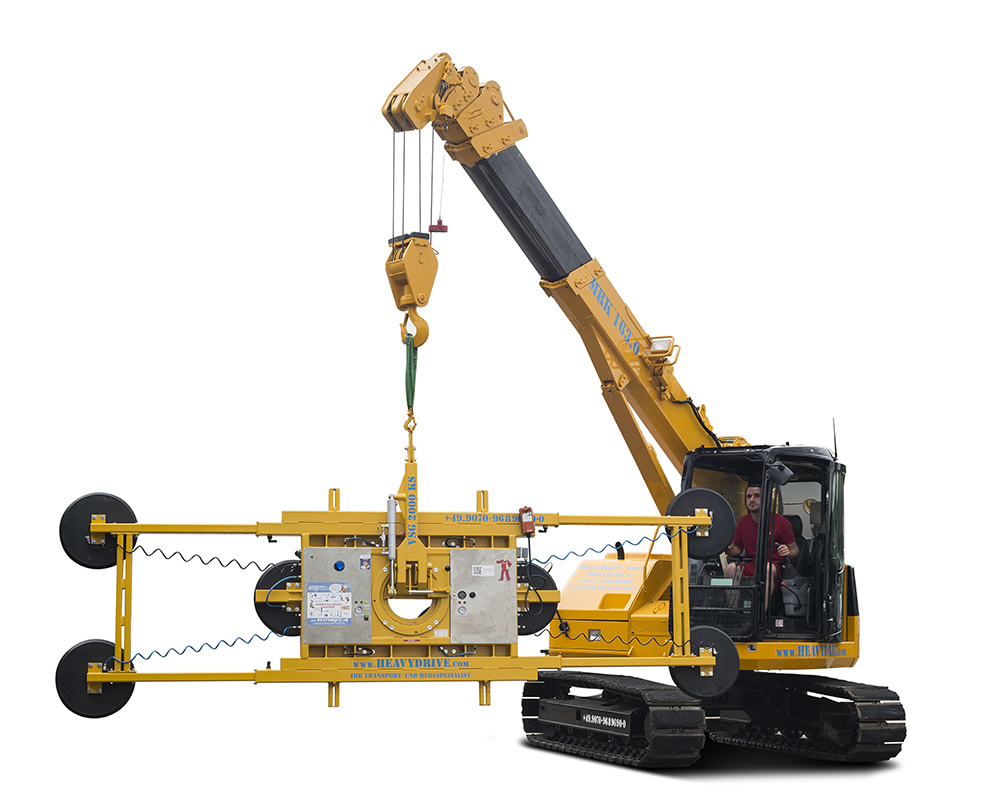

A powerful mini crane with a capacity of 4.9 tonnes and a hook height of 16.35 m, which can even be driven under a load of 2.5 tonnes. In combination with our vacuum suction systems, almost any pane, panel, stone slab or similar can be fitted in situations that would normally be unaccessible for cranes. An additional option is a heavy-load extension tip for up to 4.7 m extra reach for loads of up to 400 kg, e.g. to go under eaves.

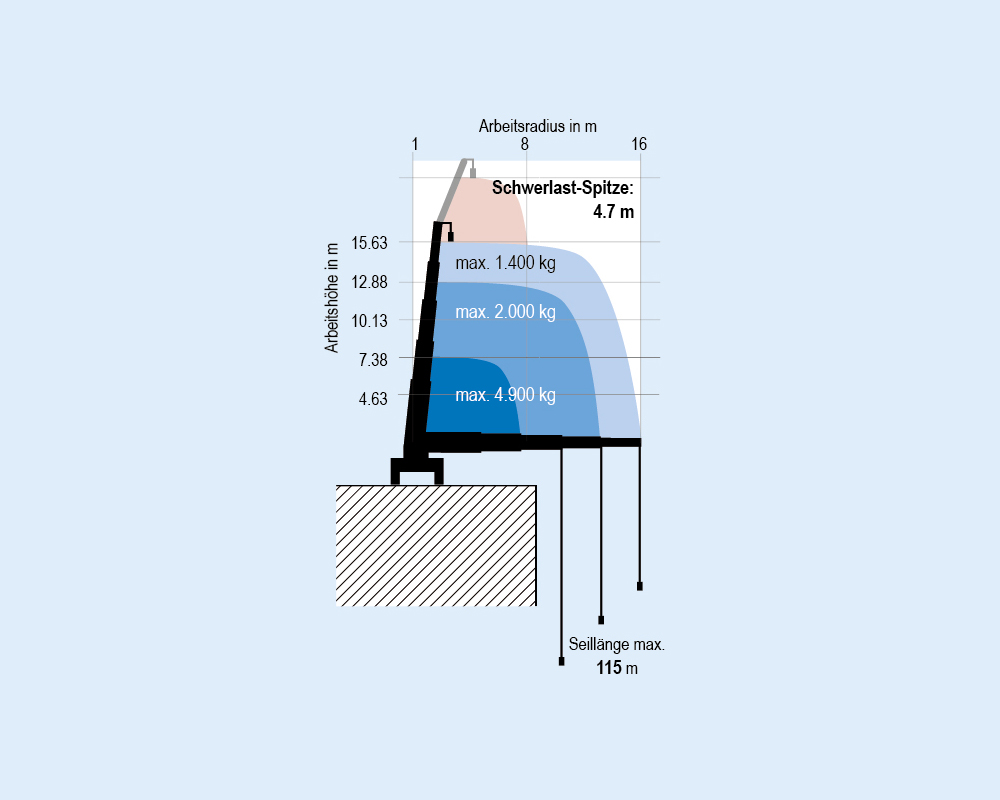

Data sheet (MRK 163.0)
Features
| Lift Height: | 16.35 m |
|---|---|
| Load capacity (goods to be lifted): | 5,9 t x 2,1 m |
| Net Weight: | 9700 kg |
| Max. Hook Height Incl. tip S1 : | 20.0 m with 2.1 m tip |
|---|---|
| Max. Hook Height Incl. tip S2 : | 22.0 m with 4.1 m tip |
| Safety System : | Load torque limiter Boom angle and load gauge Hydraulic pressure safety valve Hook securer Self-locking engine brake Winch cut |
| Max. Working Radius : | 14,52 m |
| Cable : | IWCR 10 mm x 115 m |
| Telescopic System | |
|---|---|
| Projection length : | 5.60- 15.63 m |
| Telescoping Speed : | 11 m/ 24,5 s |
| Boom Type : | 5-stage, hydraulic telescopic boom |
| Turning Angle : | 360° continous |
| Cable Speed : | 27 / 39 m / min. (4- fall) |
| Supporting Feet : | - WITHOUT - |
| Carriage | |
|---|---|
| Drive : | Hydrostatic, continuously variable forward and reverse |
| Speed : | 0 – 3,8 km/h |
| Motor | |
|---|---|
| Type : | Komatso 4 cylinders, water-cooled, direct injection |
| Performance : | 55 PS , 40,5 KW / 1850 RPM |
| Fuel : | Diesel |
| Tank Capacity : | 141 l |

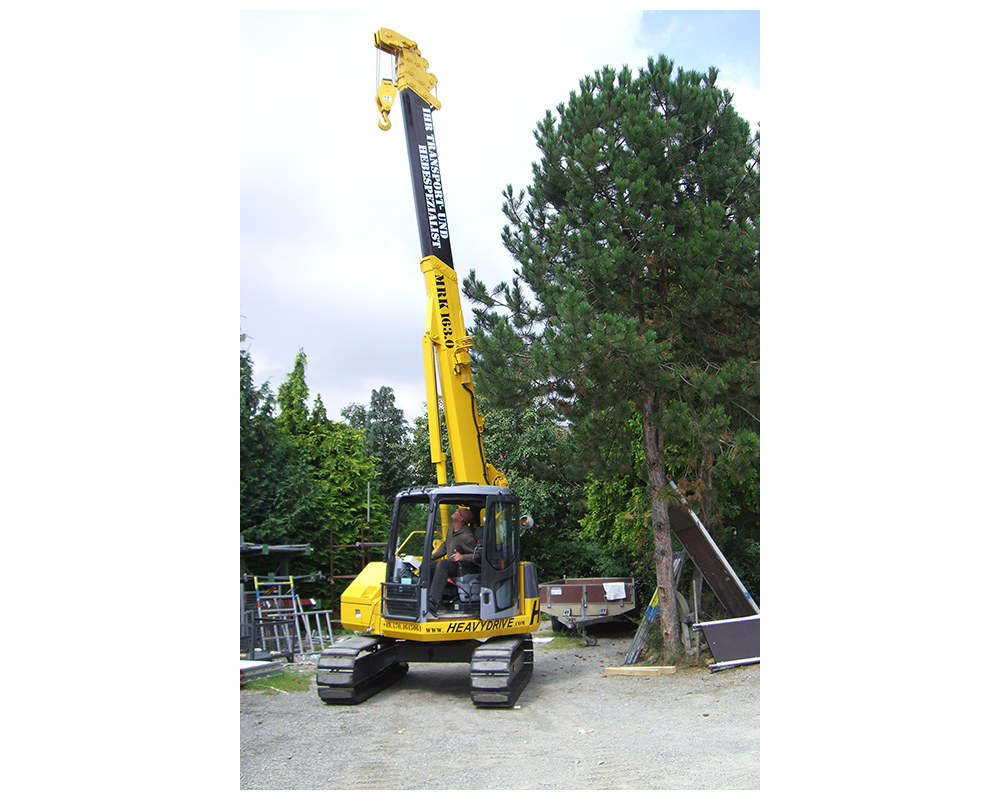

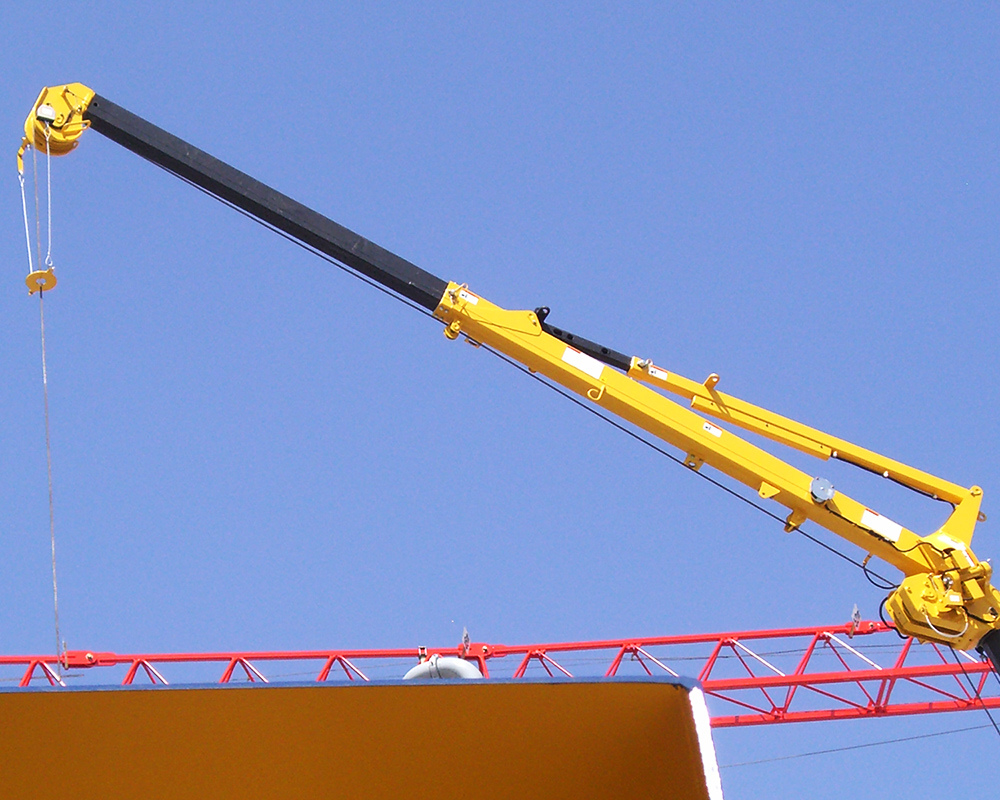

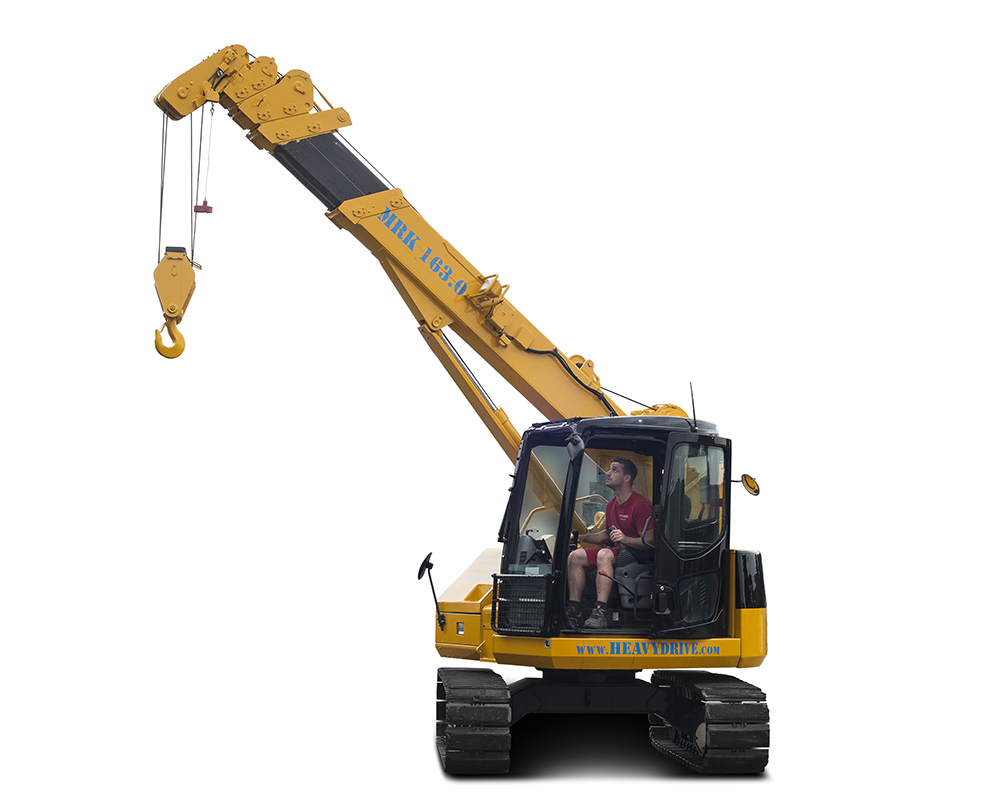

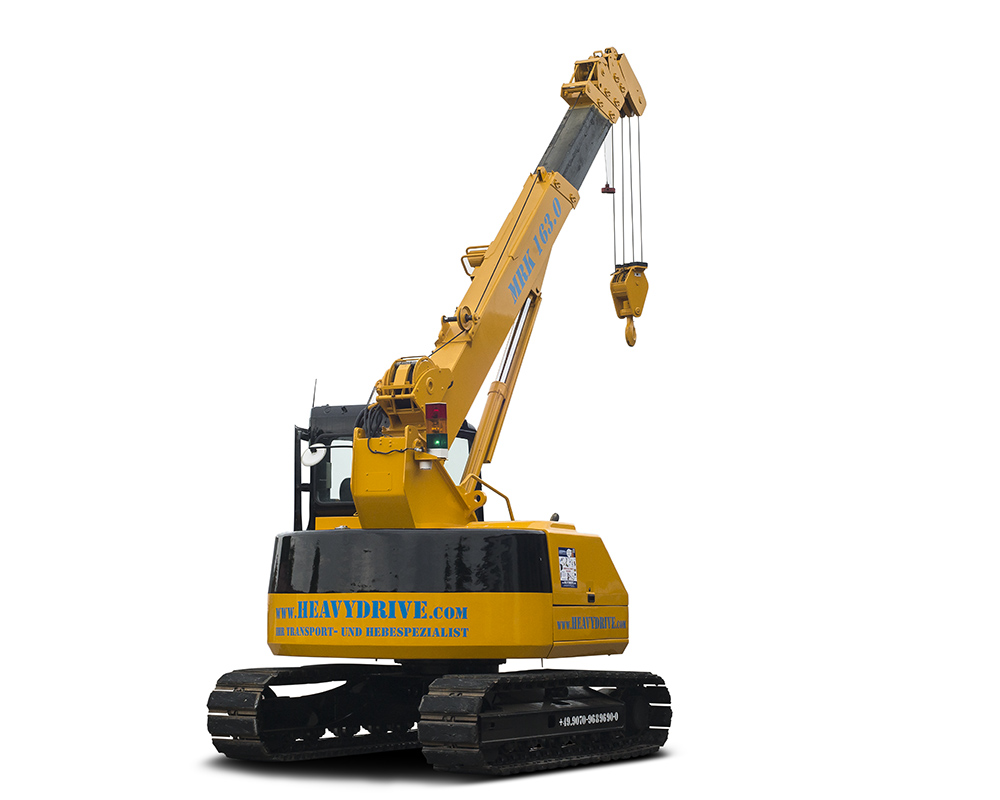

Further product images
