Data sheet
GMG M 1000 - Power Glass Crawler with a capacity of 1000kg
Services included
- Advice on rental, purchase and project planning
- Handling service
- Payment and financing options
- Fast and customised delivery options
- Long-term rental models
- Equipment replacement & spare parts service/li>
- Digital services
- Tested quality/li>
Optional additional services
- Express delivery
- Maintenance Plus
- Instruction/training
- Planning and advice service
- Device operator
- Handling Service
- the all-terrain glass handler
pane dimensions in square min.: 830 x 830 mm
pane dimension in line min.: 920 x 1.550 mm
pane vertikal dimensions max: 3.200 x 3.200 mm
pane horizontal dimensions max.: 1.700 x 1.700 mm
Long description
The GMG M 1000 is a state-of-the-art glass robot featuring absolute all-terrain mobility and dynamic load balancing. It was designed and built to start at the level where all the other glass robots quit!
Its excellent manoeuvrability makes it suitable for any terrain.
It works even in tight spaces, with minimal ground pressure and without any need for support, regardless of the situation!
With the “Dynamic Levelling System”, device levelling works completely automatically, even on steep terrain or uneven ground.
The GMG M 1000 is levelled independently and simultaneously, both on the longitudinal axis up to 15° (27%) and on the transverse axis up to 14° (25%), so that parts may be transported and mounted safely and effectively in any situation.
Data sheet (GMG M 1000)
Features
| Lift Height: | 4.1 m |
|---|---|
| Load capacity (goods to be lifted): | Movable with 1000 kg load in the front.Movable with 300 kg load on the side |
| Net Weight: | 2600 kg |
| Net Weight incl. Counterweights : | 1850 |
|---|---|
| Boom Angle : | -91°/+45° |
| Drive : | Hydrostatic, infinitely variable, front wheel drive |
| Boom Type : | automatic |
| Wheels : | All-terrain, foamed |
| Suction Cups : | 4 x Ø 400 mm, 2 circle system |
| Safety System : | Load limiter |
| Telescopic System | |
|---|---|
| Boom Angle : | -91°/+45° |
| Boom Type : | automatic |
| Turning Angle : | 180 ° automatic |
| Lifting height middle suction frame vertical/horizontal : | 4000 mm/4400 mm |
| Table Height : | 950 mm |
| Carriage | |
|---|---|
| Drive : | Hydrostatic, infinitely variable, front wheel drive |
| Wheels : | All-terrain, foamed |
| Motor | |
|---|---|
| Type : | Battery-powered 2 x 12 V 150 Ah |
| Performance : | Electric 24 V with 220 V charger operating life 3-4 working days without recharging |

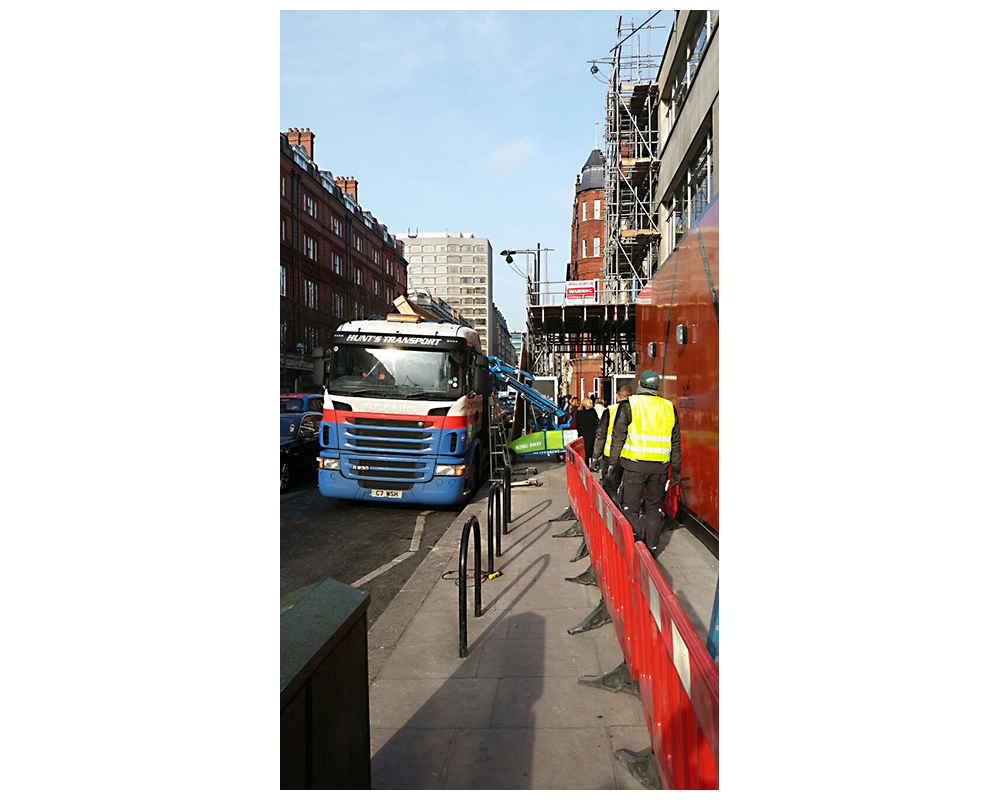

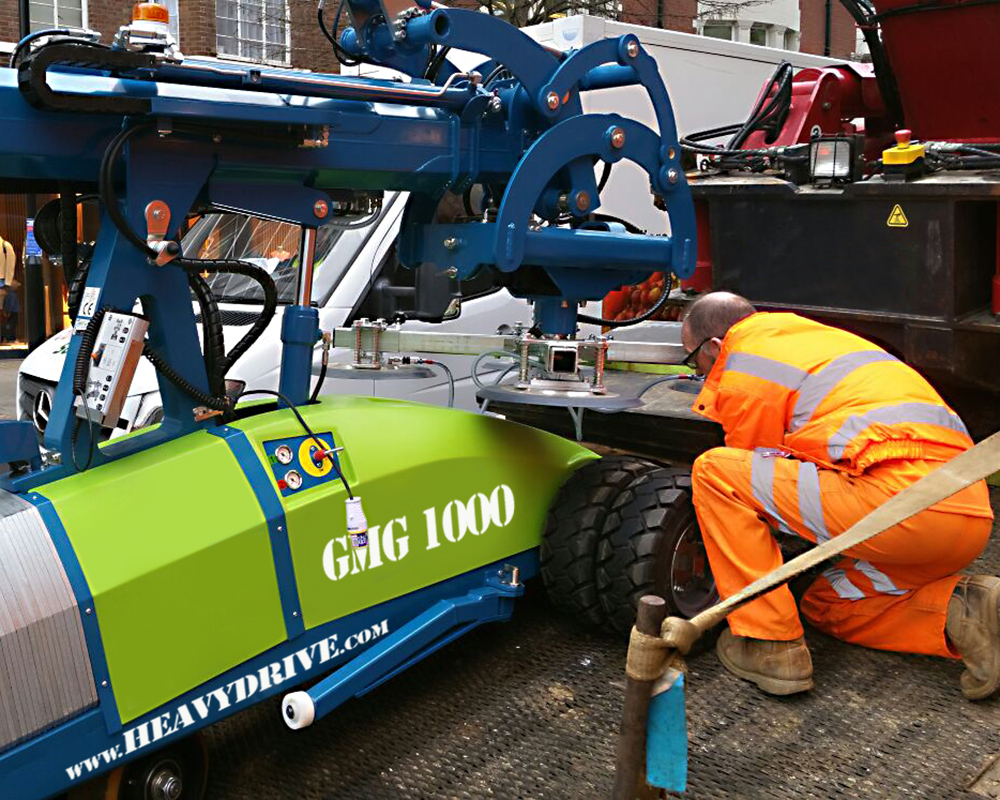

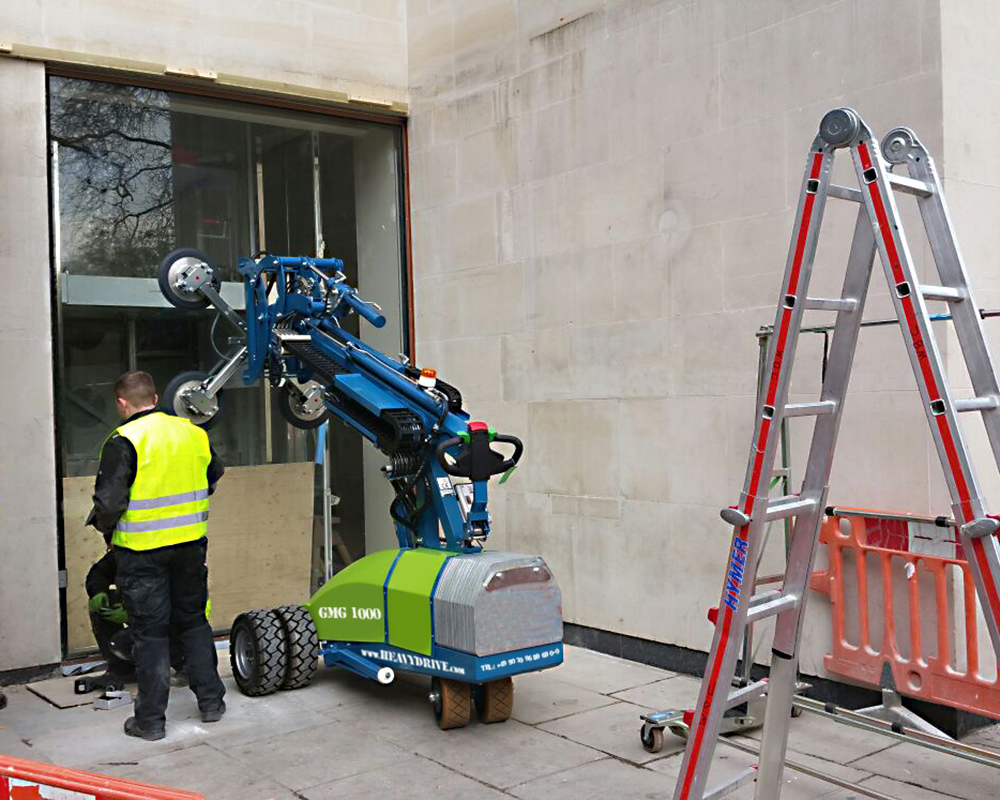

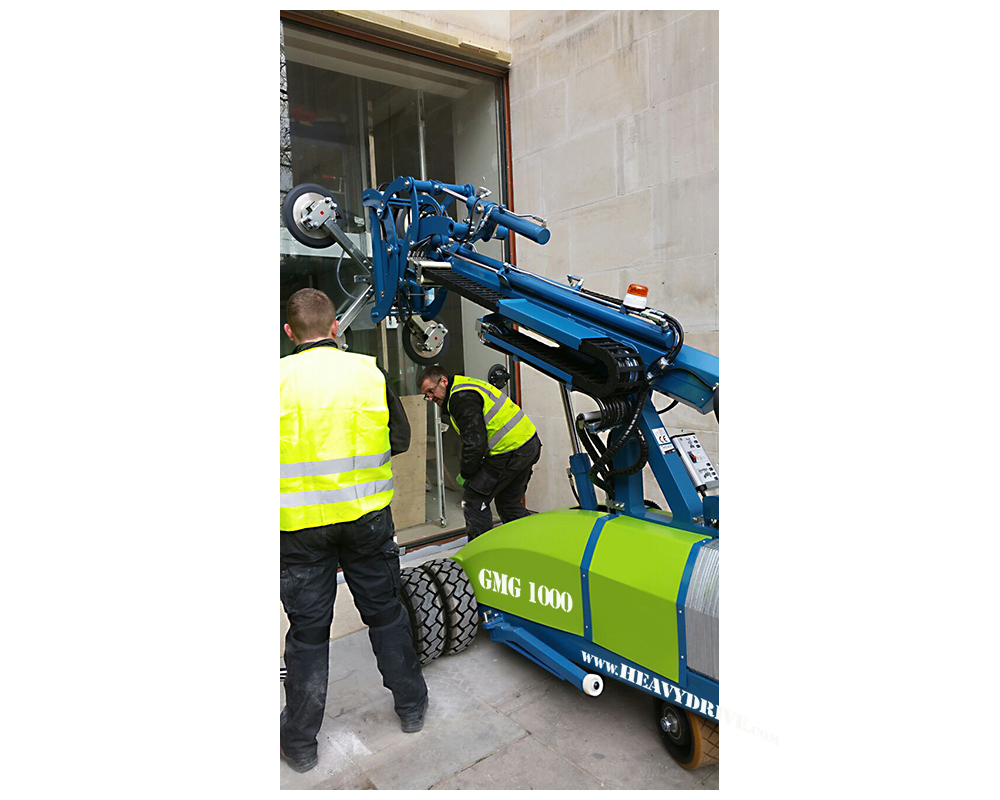

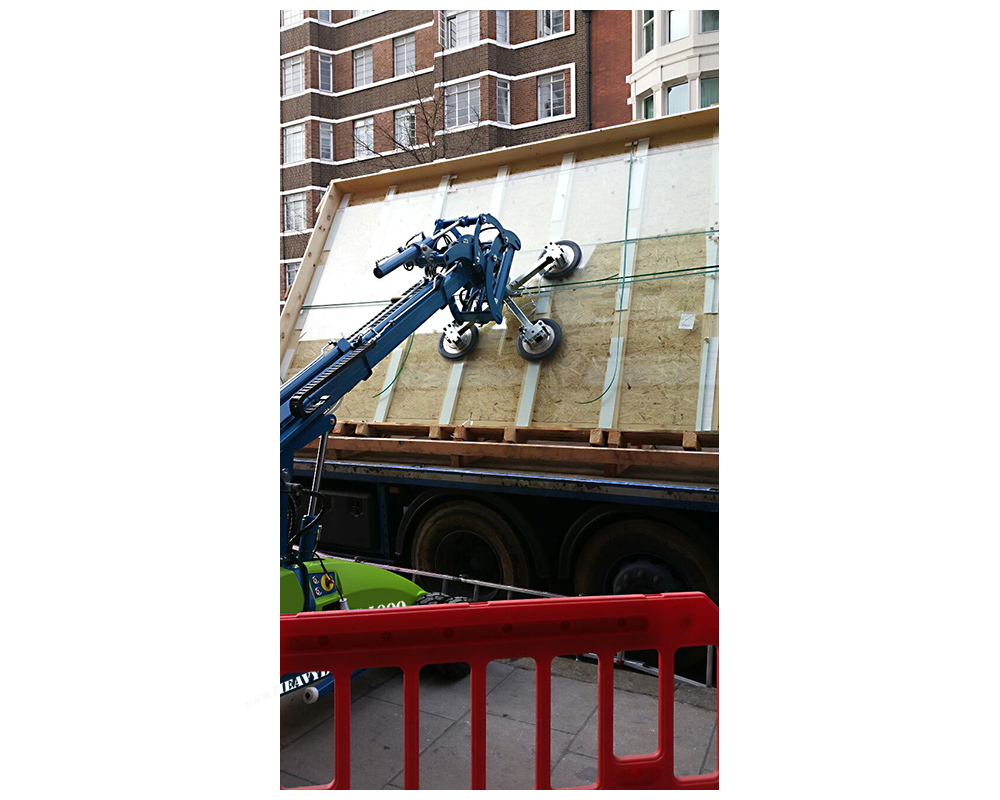

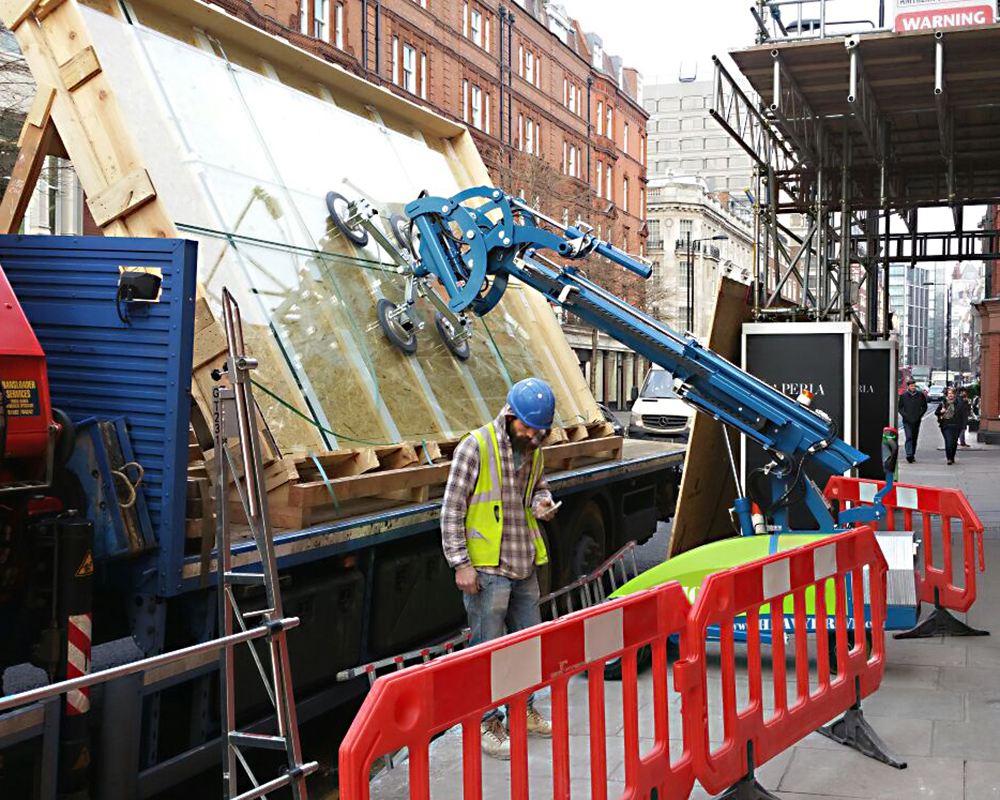

Further product images
