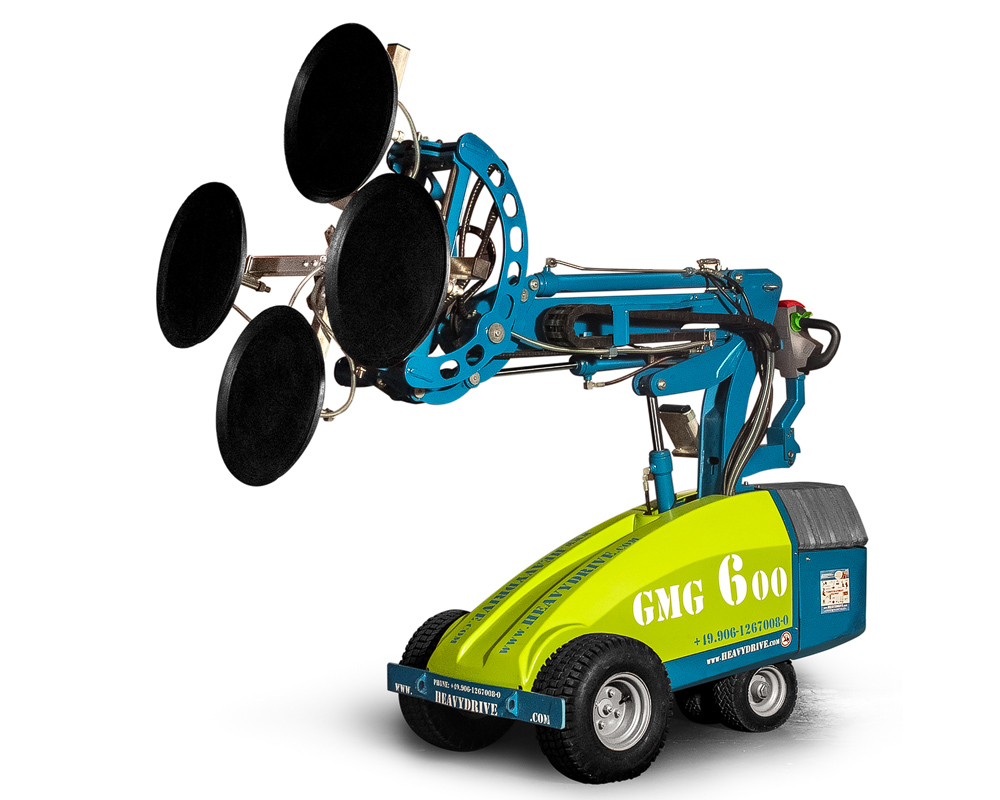

Data sheet

GMG 600 glass assembly equipment with a capacity of 600 kg



Services included

  • Advice on rental, purchase and project planning
  • Handling service
  • Payment and financing options
  • Fast and customised delivery options
  • Long-term rental models
  • Equipment replacement & spare parts service/li>
  • Digital services
  • Tested quality/li>
Optional additional services

  • Express delivery
  • Maintenance Plus
  • Instruction/training
  • Planning and advice service
  • Device operator
  • Handling Service
Brief description

  • compact mobile assembly aid transports and places
    glass panes with mm-precision
  • Precise fitting with fine stroke

pane dimensions in square  min.: 740 x 740 mm
pane dimension in line min.: 740 x 1.600 mm
pane vertikal dimensions max:  3.250 x 3.250 mm
pane horizontal dimensions max.: 2.250 x 2.250 mm

Long description

Your electric pane setting helper sets panes up to 600 kg, even overhead. While before, at least 3 people would have been required on the building site, you can now carry out the pane positioning comfortably alone with this helper that is operated similarly to a pallet truck. .







Data sheet (GMG 600)

Features

Lift Height: 3.6 m
Load capacity (goods to be lifted): Movable with 600 kg load in the front movable with 300 kg load on the side
Net Weight: 865 kg
Net Weight incl. Counterweights : 1060
Boom Angle : 90°/-15°
Drive : Hydrostatic, infinitely variable, front wheel drive
Wheels : All-terrain, foamed
Suction Cups : 4 x Ø 360 mm, 2 circle system
Safety System : Load limiter

Telescopic System
Boom Angle : 90°/-15°
Lifting height middle suction frame vertical/horizontal : 3000 mm/1000 mm
Table Height : 1000 mm

Carriage
Drive : Hydrostatic, infinitely variable, front wheel drive
Wheels : All-terrain, foamed

Motor
Type : Battery-powered 2 x 12 V 95 Ah
Performance : Electric 24 V with 220 V charger operating life 3-4 working days without recharging
